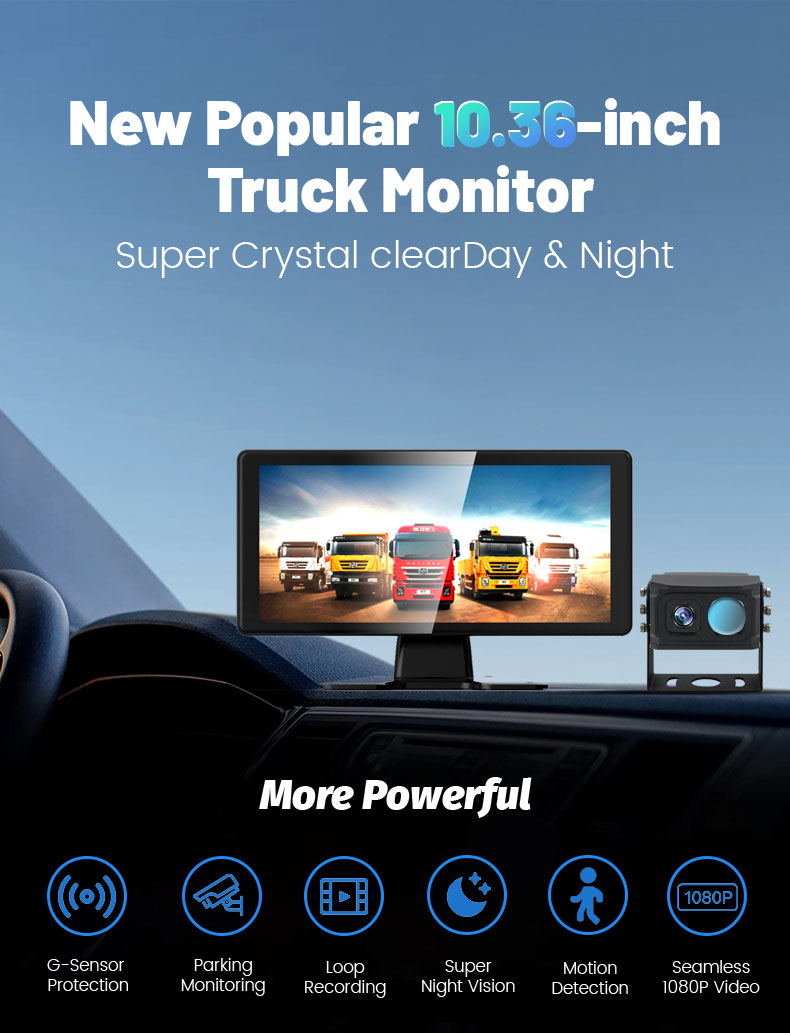

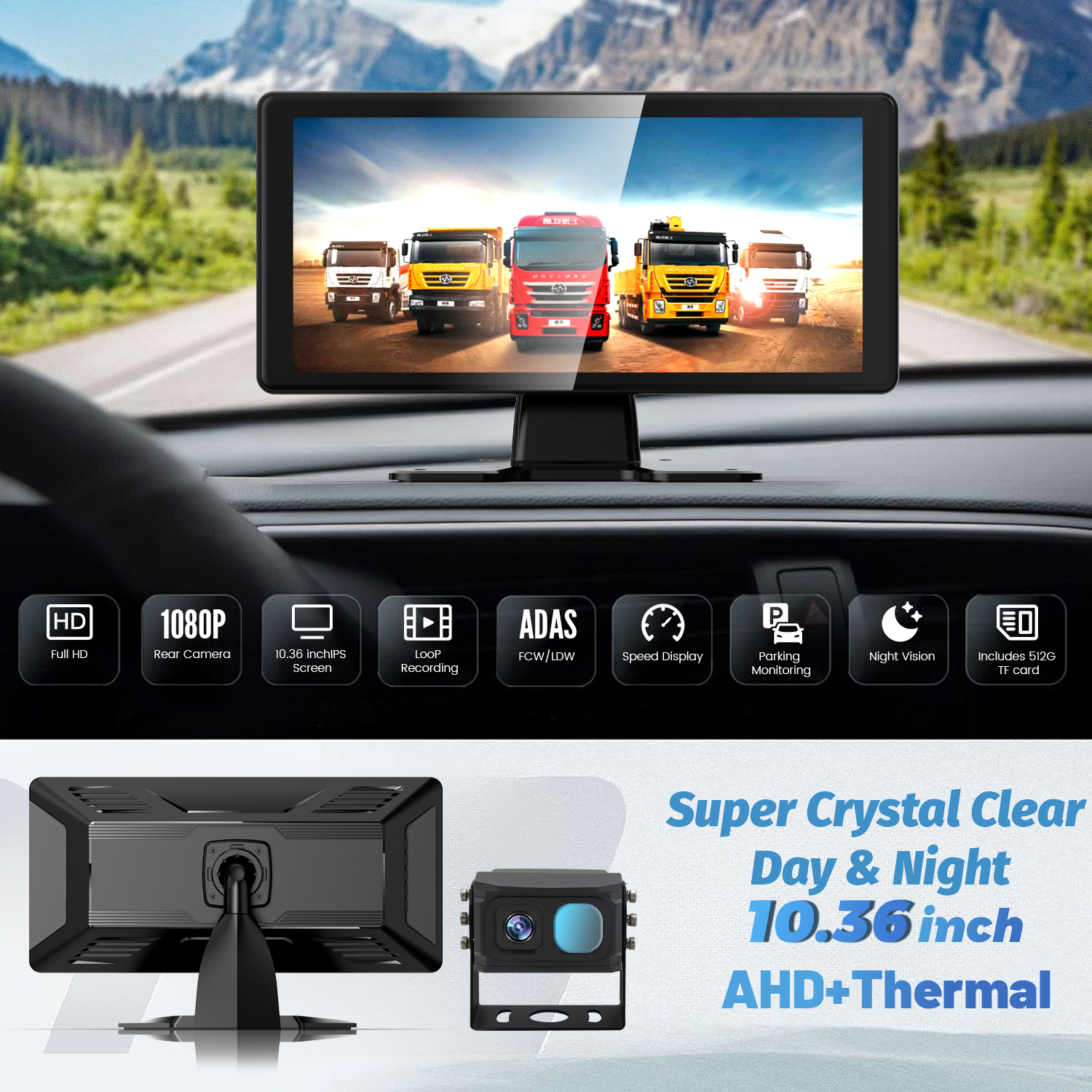

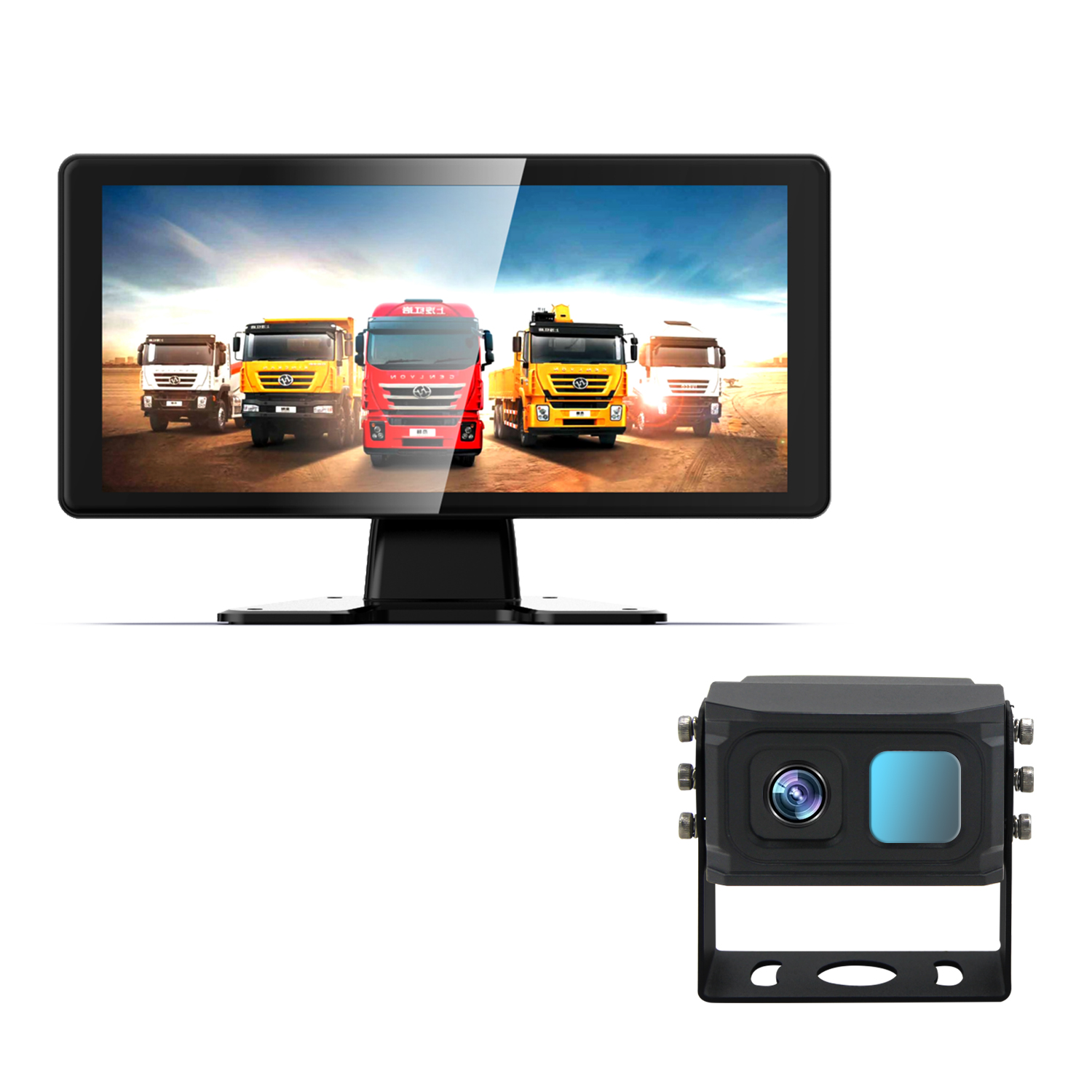

VEHICLEDIGITAL 10.36 inch AI AHD Driving Assistant Dual Display Vehicle Mounted Infrared and Thermal Imaging Camera System
10.36 Inch Split IPS Monitor
|
1 |

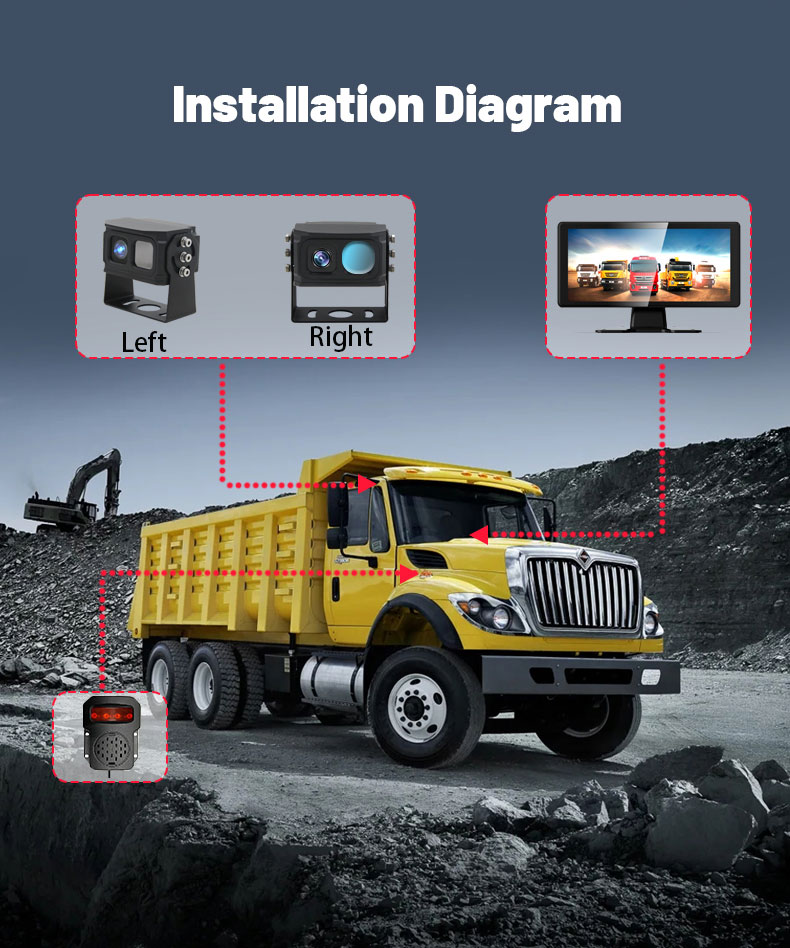

Camera module installation scenario |
The roof of the cab is fixed forward |
|
2 |
Material of structural structure |
High density aluminum alloy |
|
3 |
Module weight |
300g(N.W)/350g(G.W.) |
|
4 |
working voltage |
DC12V±10% |
|
5 |
working current |
≤300mA@12V |
|
6 |
rated dissipation |
≤3.5W@12V |
|
7 |
Taiilline connector interface |
4 PIN video General Waterproof head + 4 PIN communication Waterproof head |
|
8 |
Tailline length |
L=0.5M |
|
9 |
SOC-AI master architecture |
The RISC-V high-performance instruction-set architecture |
|
10 |
Thermal imaging sensor chip |
High-performance vanadium oxide uncooled infrared detector |
|
11 |
Thermal imaging imaging mode |
White hot mode * Opmultiple multiple color modes * |
|
12 |
Thermal imaging of the pixel spacing |
@12μm WLP |
|
13 |
The thermal imaging response frequency band |
8 ~14μm |
|
14 |
Thermal imaging probe lens |
4.3mm/7.0mm, Fixed focus: 5M-infinity |
|
15 |
Thermal imaging V angle |
Horizontal 39° * vertical 30° / horizontal 29° * vertical 20° |
|
16 |
Thermal imaging to probe the distance |
200 m / 300 m * Associated according to the installation height and Angle of the real vehicle * |
|
17 |
The AI probe recognition distance |
100 m / 150 m * Associated according to the installation height and Angle of the real vehicle * |
|
18 |
Visible light sensor chip |
GC2053 |
|
19 |
Visible light field of view angle |
Horizontal 110° * diagonal 130° * vertical 70° |
|
20 |

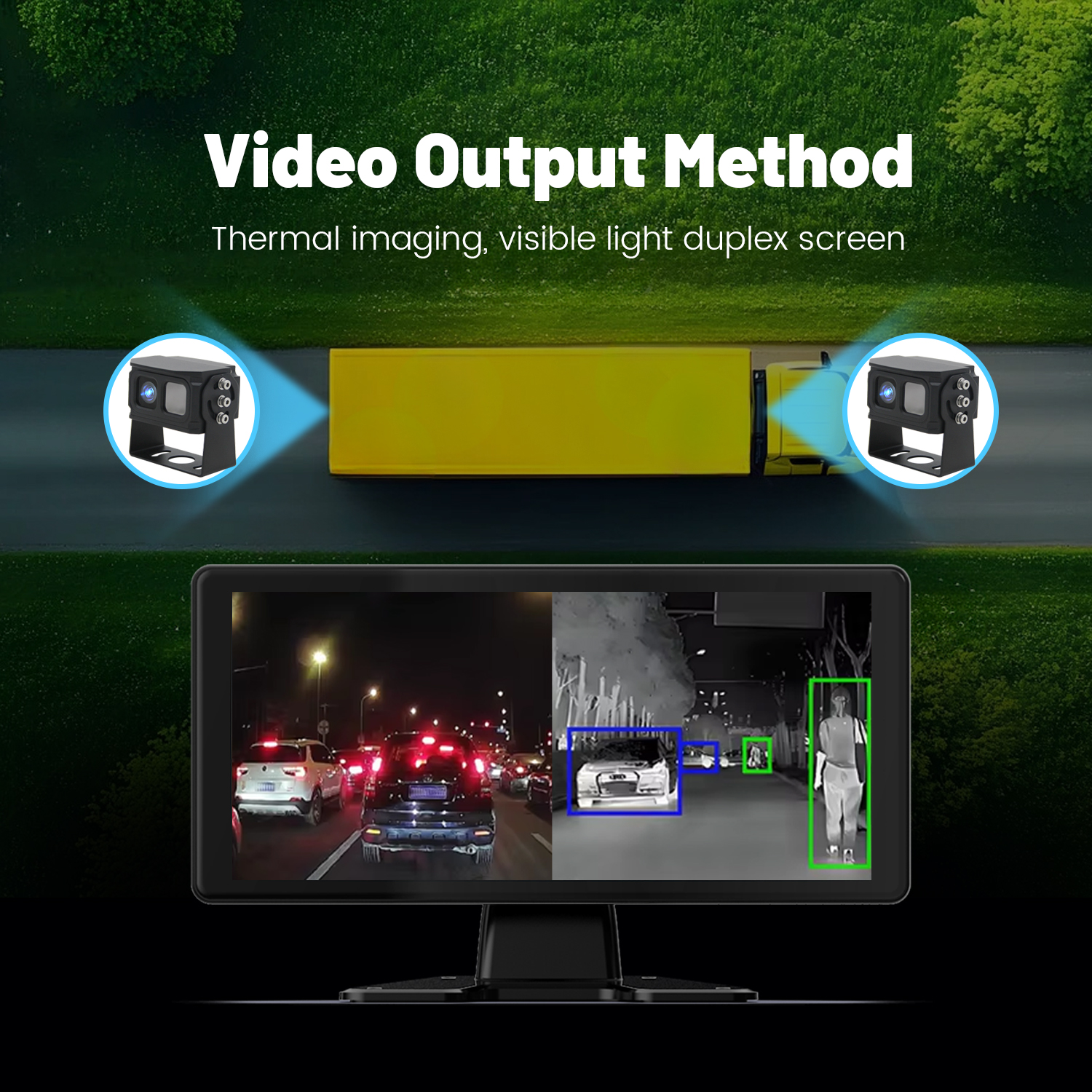

Video output |
Thermal imaging, visible light double spell picture |
|
21 |
Video output format |
AHD |
|
22 |
Video resolution |
|
|
23 |
Connector IP level |
IP68 |
|
24 |
Camera IP level |
IP69K |
|
25 |
Storage temperature |
-30℃~+85℃ |
|
26 |
working temperature |
-30℃~+70℃ |
|
27 |
Working humidity |
20%~80 |
Characteristics of thermal imaging: The principle of thermal imaging is to form an image through the temperature difference on the surface of an object without relying on the light source, so it has strong anti-glare, lightless imaging, and the ability to penetrate smoke and haze, and penetrate high-speed fog.

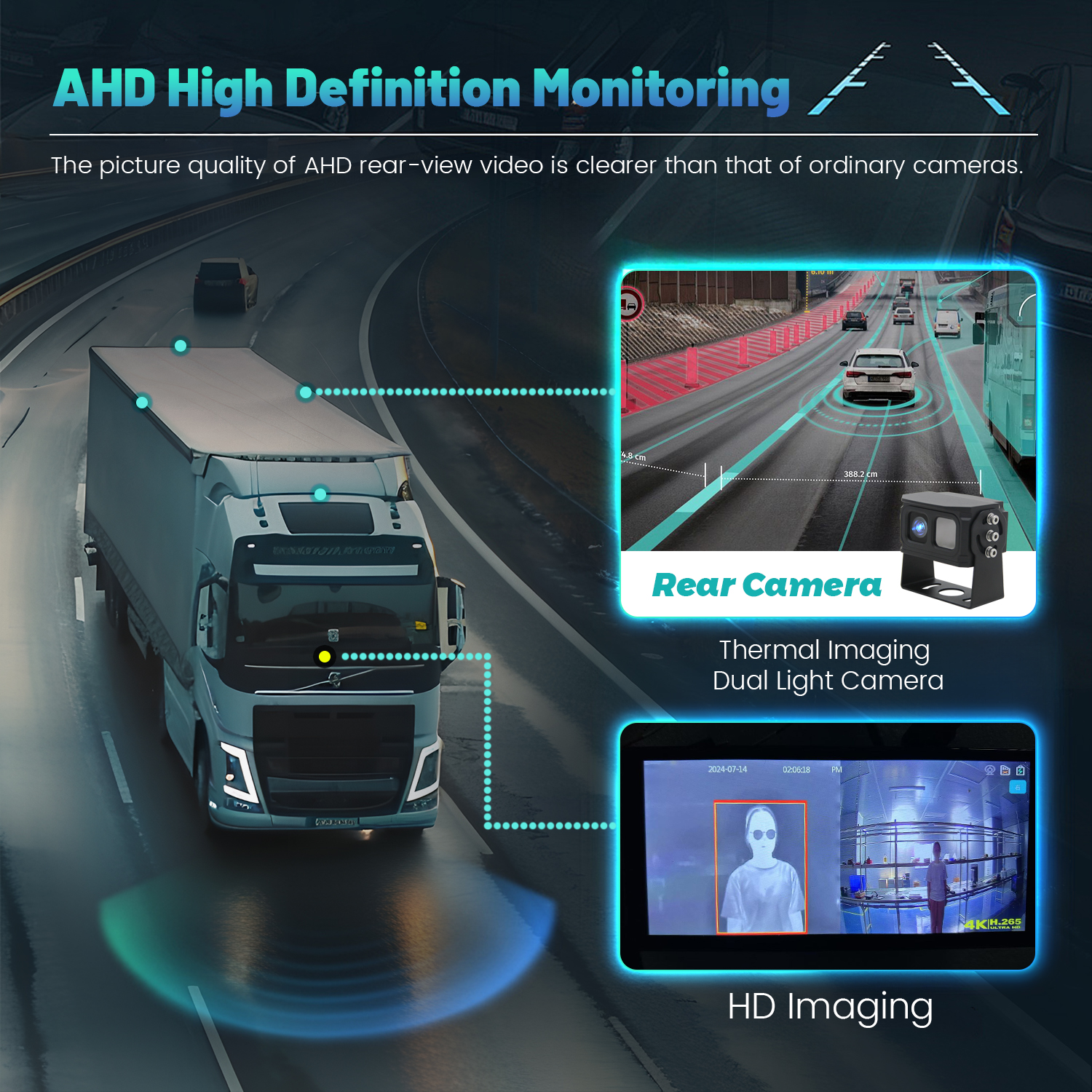

[Dual Spectrum Integration]Integrating infrared light and visible light camera, it can display visible light and infrared light images at the same time, more suitable for all-weather road conditions.
[Infrared Clear Imaging]Infrared light resolution up to 384*288 makes it see farther and clearer in the dark.
[Pedestrian & Vehicle & Non-motorized Vehicle Detection]Built-in AI algorithm can identify pedestrians, vehicles and non-motorized vehicle such as cyclists, electric bikers, and pedestrians on foot and provide audio warning function; Support customized alarm strategies to meet the needs of customers.
[Waterproof and dust-proof]IP69K waterproof and dust-proof features make it suitable for various application.

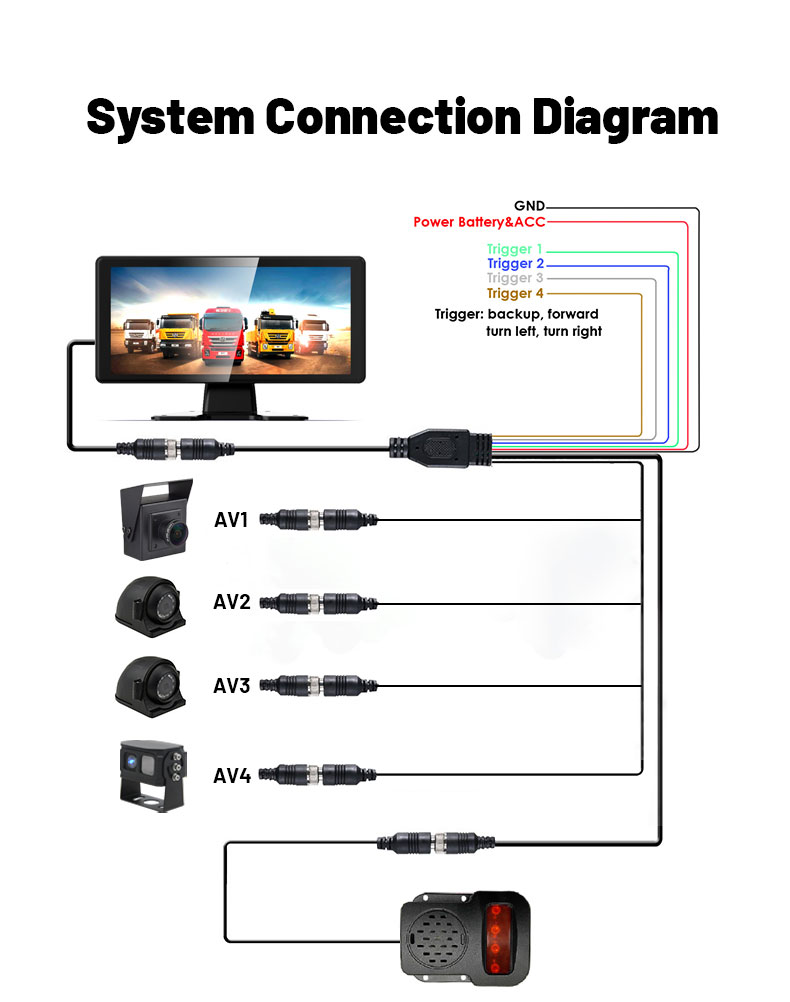

[NOTICE]The listed price is for 1*10.36inch monitor+1*thermal camera+15m cable. The monitor support max 4 channels, if you need more cameras, please contact our salesman, thank you!
Industry-specific attributes
| Car Fitment | Universal |
| Function | NIGHT VIEW, AI pedestrian detection, RS485, ai vehicle detection |
| Voltage | 12-24v |
Other attributes
| Type | Reverse Camera, Parking Sensor, Backup camera, AI camera, INFRAED CAMERA, THERMAL CAMERA |
| Position | Rear or front |
| Power | 3.5w |
| Warranty | 2 years |
| Place of Origin | Guangdong, China |
| Brand Name | VD |
| Model Number | VD-AI10TH |
| Thermal Imaging Sensor | high-performance vanadium oxide uncooled infrared detector |
| infrared imaging sensor | 1080P |
| Night vision | 12pcs IR LED |
| Tail line connector interface | 4pin video general waterproof head+4pin communication waterproof head |
| Infrared imaging lens | 2.8mm/3.6mm/2.1mm |
| Thermal distance | 50-150m |
| Audio output | Alarm output |
| Cable Length | 0.3 meter/11.81inch |
| Power Supply | DC 12~32V |

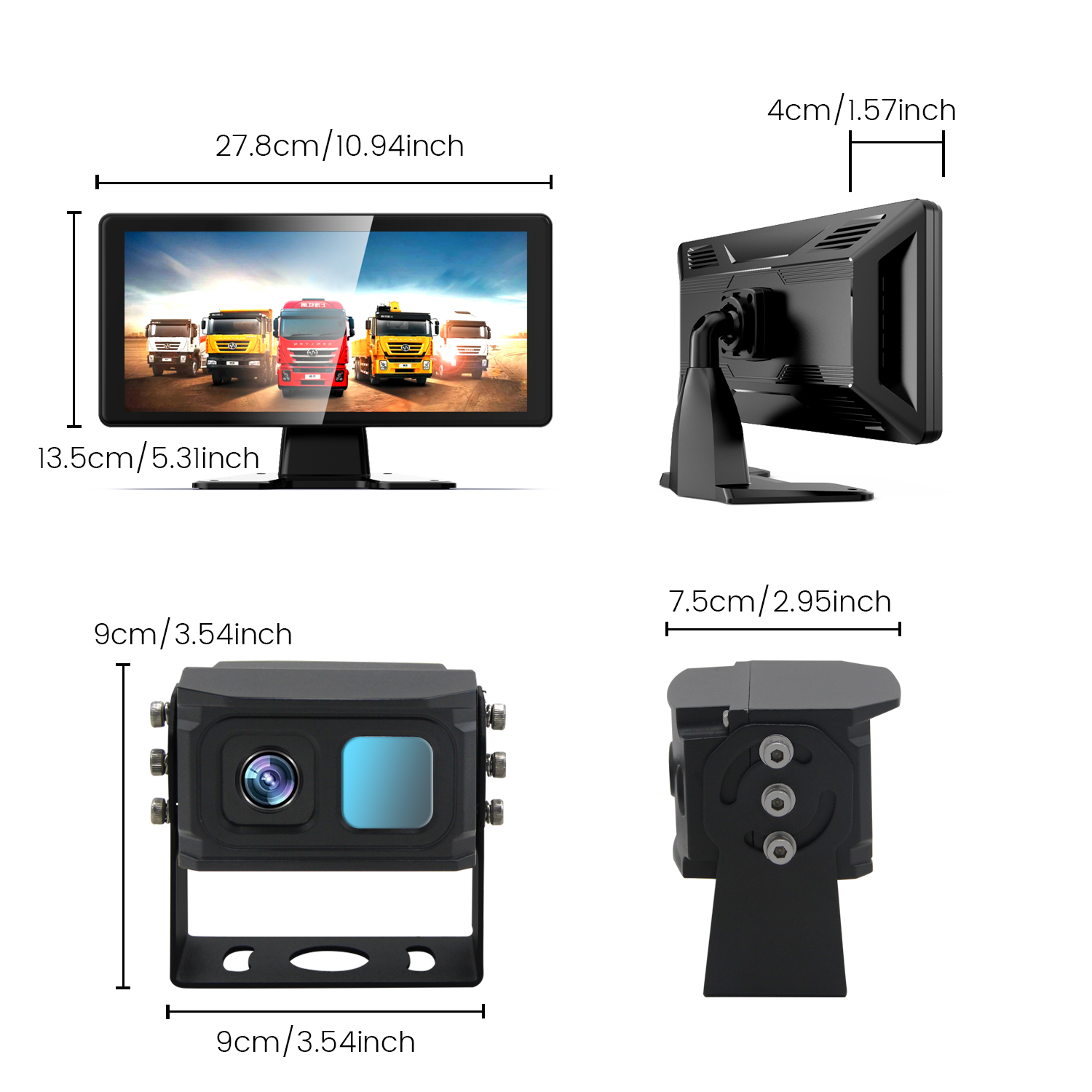

| Size | 90*90mm |
