Features:
1. Combines DVR Function:1080p full HD: a major upgrade of in vehicle monitor! It can record and replay driving videos. This function can help you free from unreasonable damage and responsibility.
2. Fast output speed: quick turn-on, start displaying images and recording videos within 3 seconds after powered.
3. Super Good View Angle IPS Screen: high contrast, high brightness. It could restore the true color, presenting the brighter and more delicate display with much higher resolution.
4. Replacement for Traditional Rearview Mirror: This monitor had solved the problems of being poor visibility during driving at night, susceptible to rainy, snowy and foggy weather and having strong reflection, etc. Showed on traditional rear-view mirrors.
5. Data security: ACC time-lapse recording; super capacitor power-down protection, to prevent the loss of video data.
6. Auto Dimming: At day time auto turn high brightness, at night turn down brightness
Specifications:
|
Functional parameters |
|
|

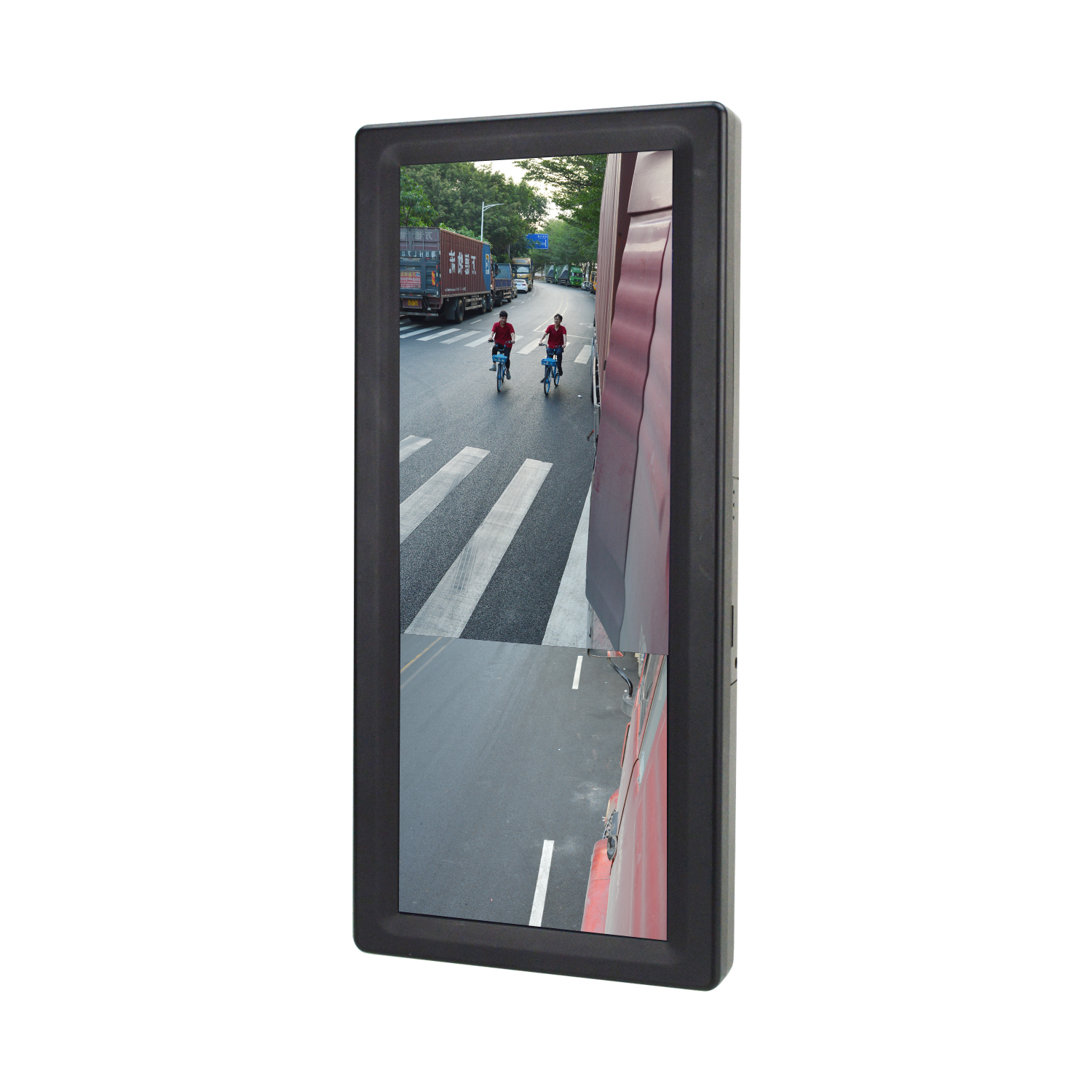

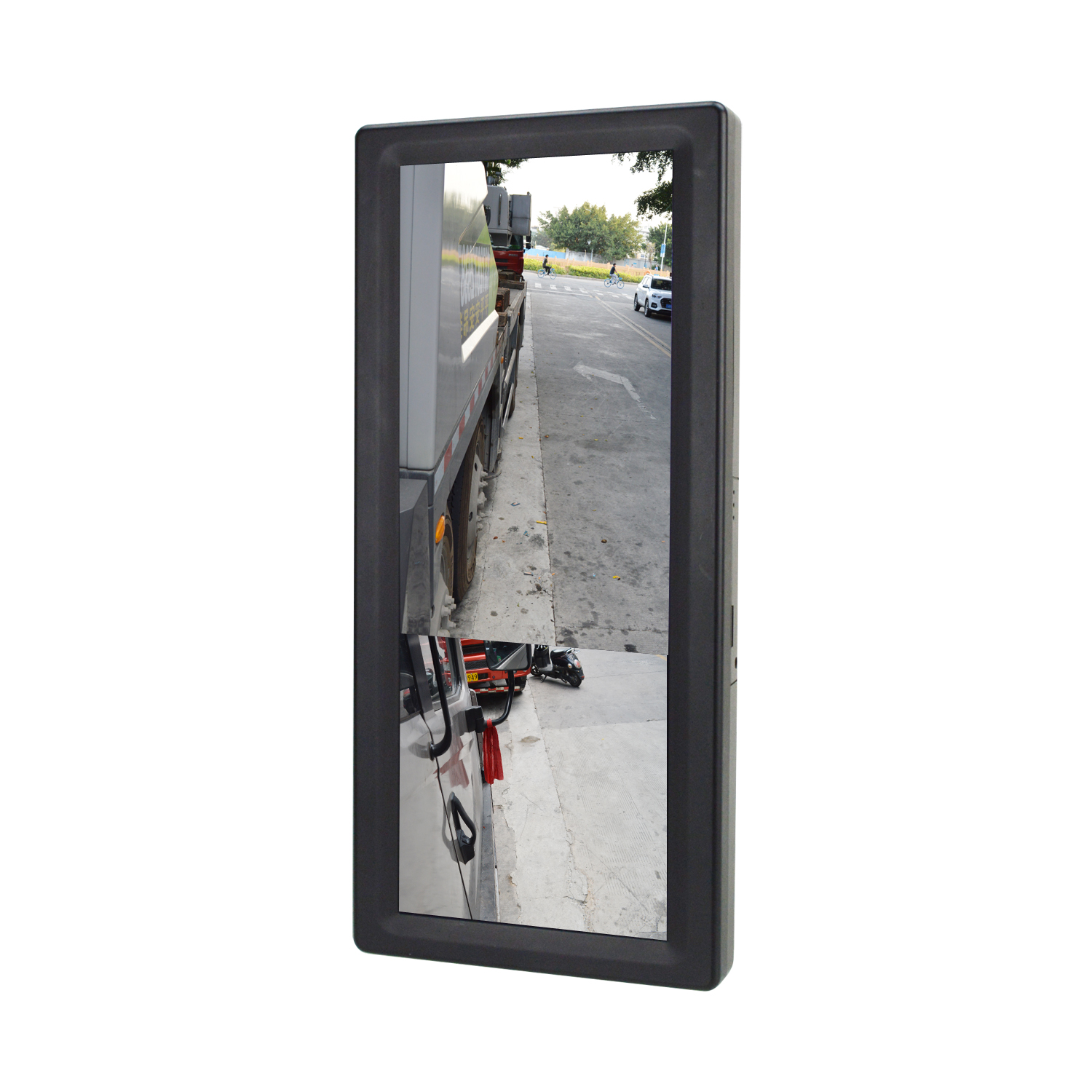

1. 12.3 inch IPS vertical monitor |
|
|
2. Four Channel AHD video input |
|
|
3. 12-24V power supply, 12V / 800mA |
|
|
4. Support CVBS, 720P, 1080P camera mixed input |
|
|
5. OSD menu, remote control |
|
|
12.3 inch HD monitor |
|
|
SPECS |
Model No.:EV-1230HQ |
|
Screen ratio |
8:3 |
|
Screen resolution |
1920(H)*RGB*720(V) |
|
Backlight |
LED, brightness 850 cd/M2 |
|
Frame rate |
1080P: P25f/s/N30f/s |
|
Contrast |
1100:1 |
|
Viewing angle |
UP-85°,DOWN-85°, LEFT-85°, RIGHT-85° |
|
Working temperature |
-20~+70 ºC |
|
Working humidity |
85%RH |
|
Storage temperature |
-30~+85 ºC |
|
Power supply |
12-24V |
|
Boot time |
12S |
|
Current consumption |
TYPE:750mA |
|
OSD control |
Channel Character and time could be displayed on the screen at the same time |
|
Power consumption |
Normal working state < 9W (excluding camera) |
|
Signal input |
4CH 1080P, 960P, 720P, 960H, D1 (CVBS) video input |
|
Recording function |
Support |
|
TF card storage |
Support 512G |
|
Video compression format |
H.264 compression mode |
|
Video resolution |
1920*1080 |
|
Video playback |
2 channel synchronous playback, support pause, fast forward, fast backward |
|
File format |
DAT |
|
File size |
1GB/46min |
|
System Language |
Chinese, English (support customized languages) |
|
Display |
Multiple split screen switchable |
|
Trigger control |
4CH trigger control, with parking guide line |
|
System |
PAL/NTSC automatically |
|
Shockproof level |
5G |
|
Audio |
Support camera recording(CH1) |
|
Speaker output power consumption |
no |
|
Weight |
|
|
Size |
|
