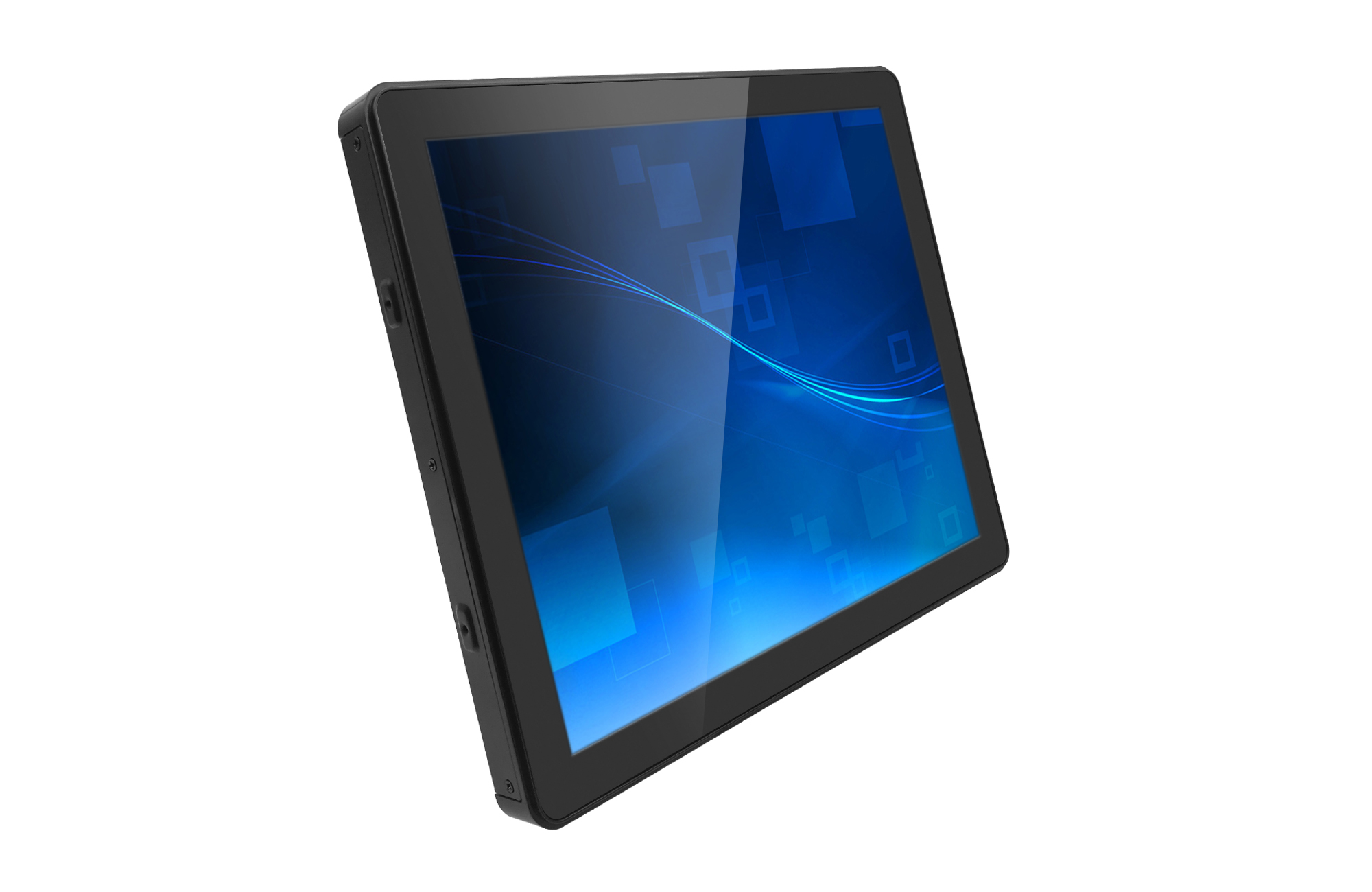

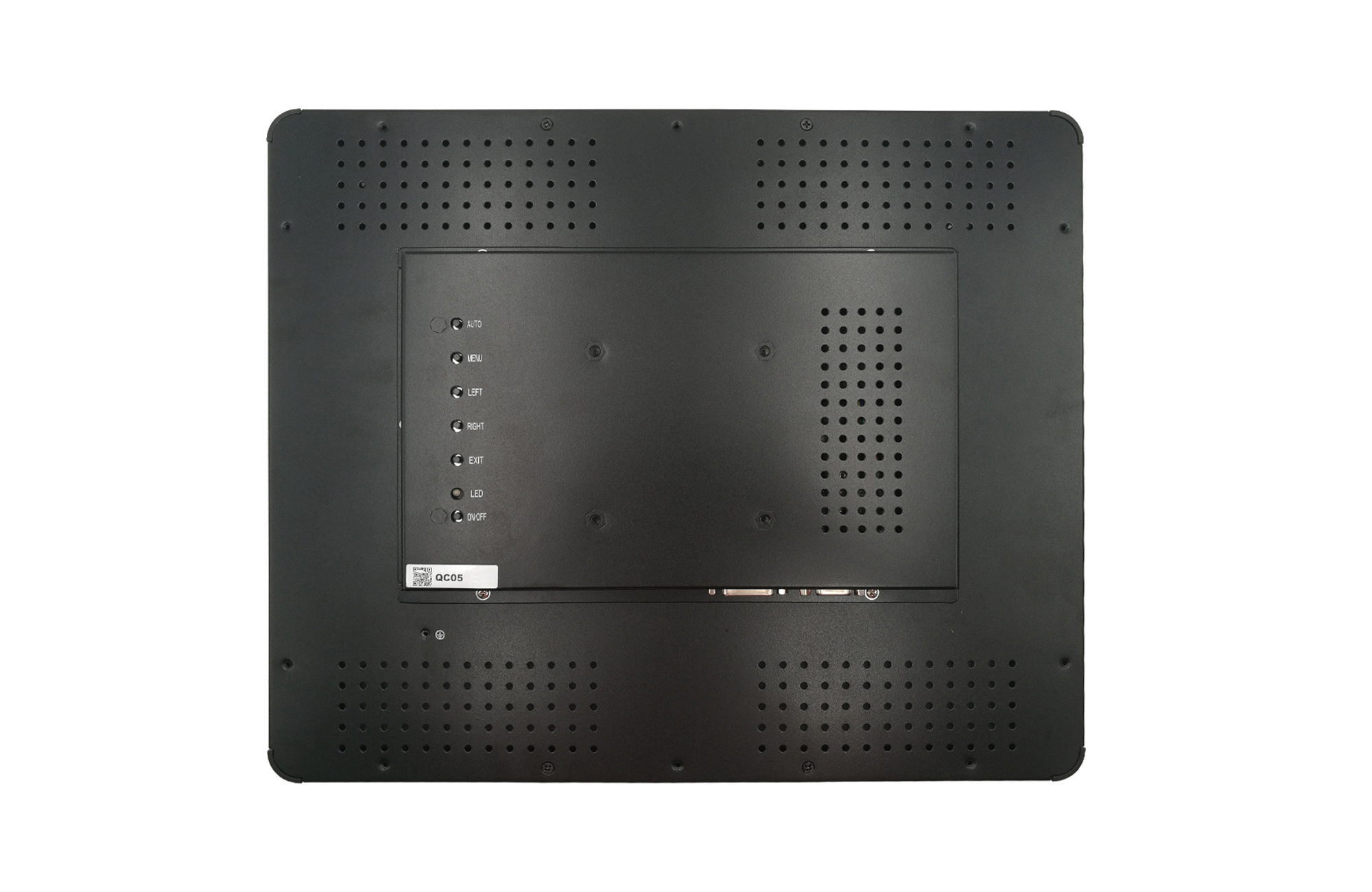

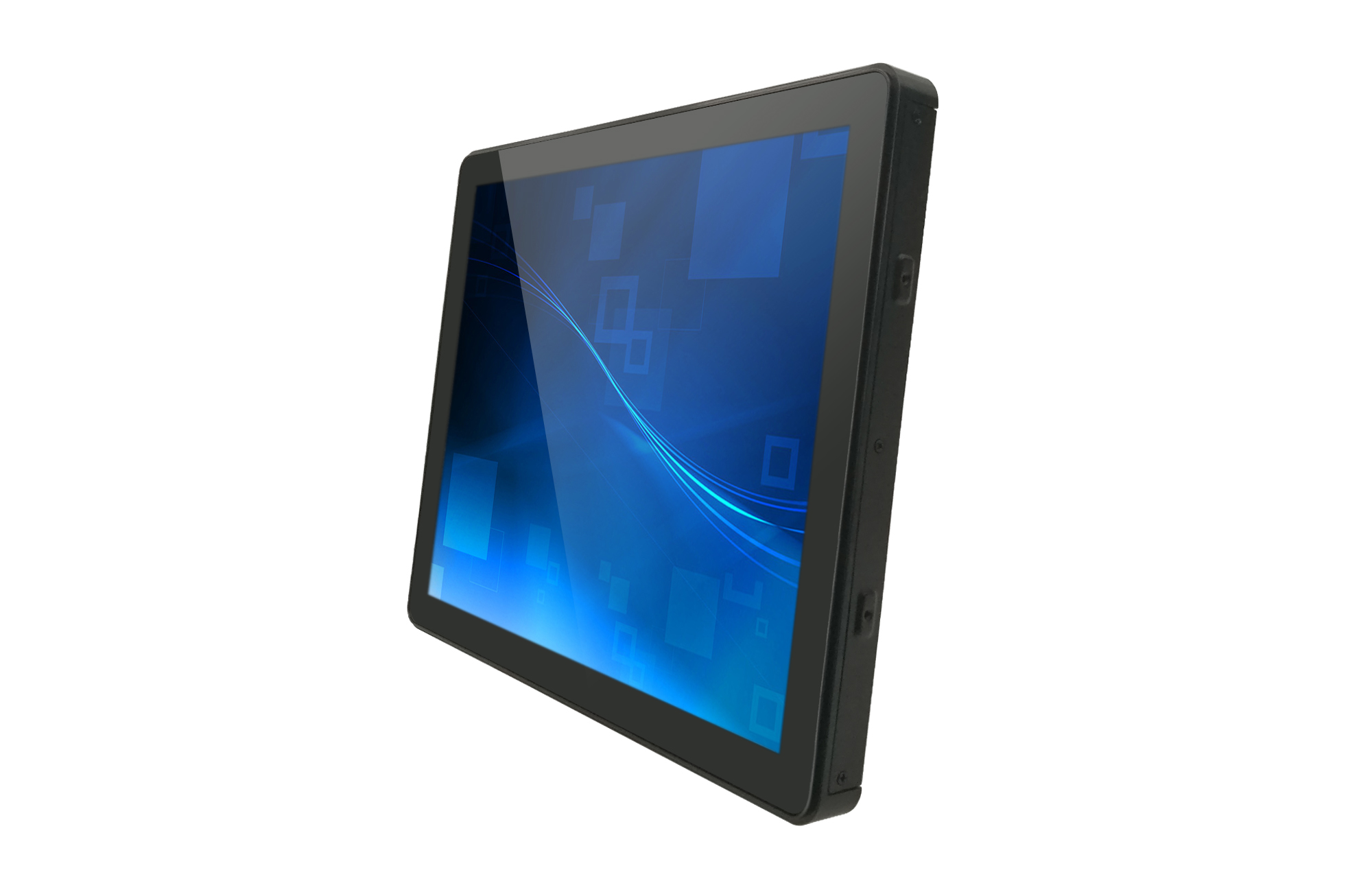

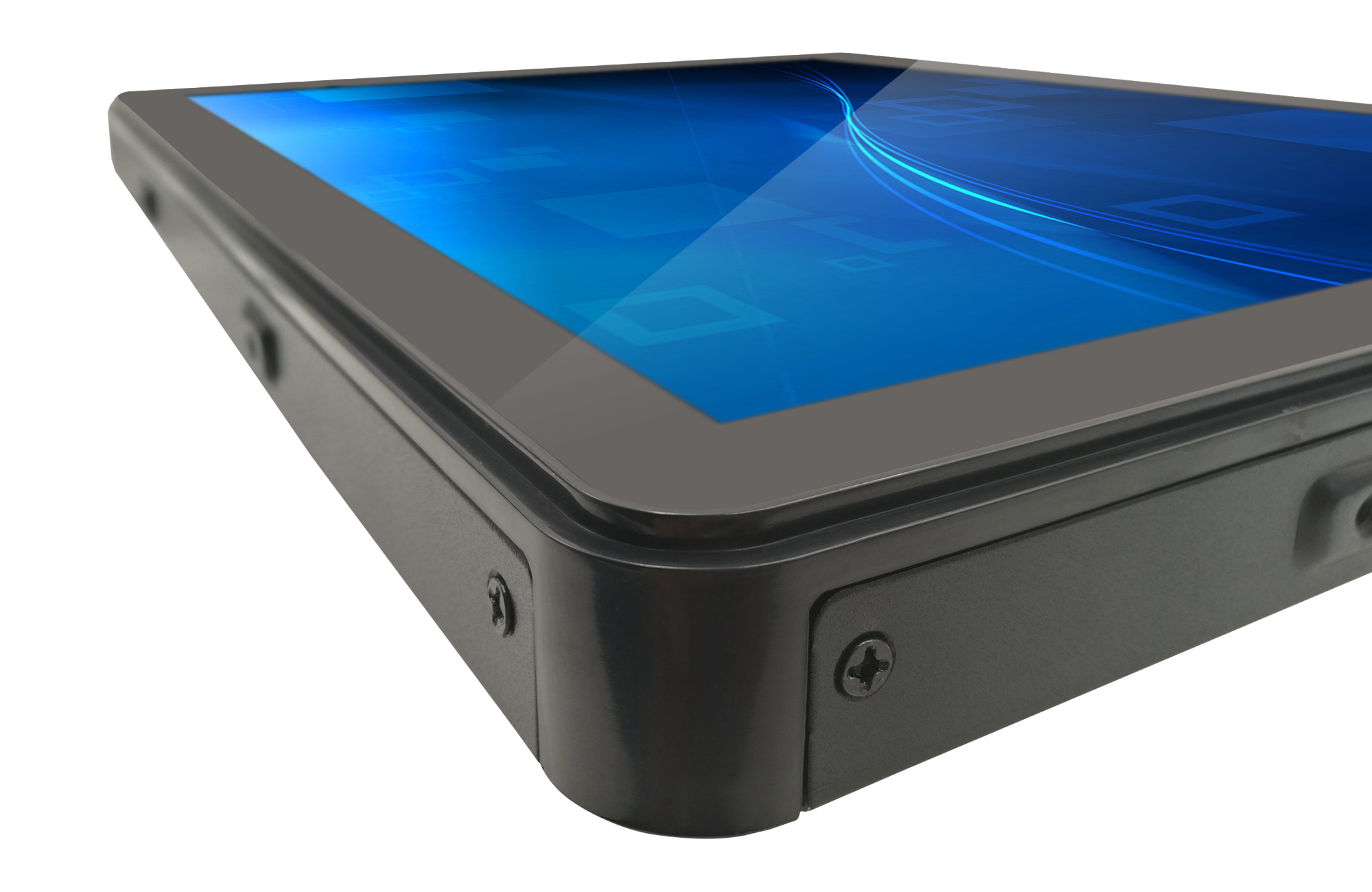

PCAP Touch Monitor VD-17OPGD01T3

Products

7" AI Pedestrian Detection System 9" AI Backup Camera System 10.1" AI Rear View Camera System 15.6" AI Pedestrian Detection System

Truck DVR System Bus DVR system Taxi DVR system Motor Bike DVR system

Truck&bus 360 SVM System Car 360 System

Car Reversing System Truck&bus Rversing System

Truck Wireless Camera System wireless Truck Microwave Sensor System 4G Wireless Camera WIFI Wireless Camera System

Glass Heated Camera Truck&bus camera Car Rearview Camera 180&360degree Camera Car Brake Light Camera Mini Camouflage Camera Car LOGO Camera

ADAS+DSM System AI BSD System Smart AI Camera System Blind Spot Information System (BSIS)

One Wire Digital Sensor 10GHZ Microwave Sensor 24GHZ Microwave Sensor 77GHZ Microwave Sensor

Thermal AI camera ADAS Camera DSM Camera BSD AI Camera Backup AI Camera

Mobile MDVR Car Dash Cam Police Body Camera

Standalone Monitor Waterproof LCD Monitor Rearview Mirror Monitor RoofMount Monitor Headrest Monitor

4G Wireless PTZ Camera

Vehicle Working LED Lights Vehicle Video Cables

Rigid truck

Details

Features

Convex full flat fillet design PCAP Multi touch screen

Plastic frame, rugged steel housing Privacy film optional

High reliability and long lifetime

Application:

AFC / Kiosk / Non-cash equipment etc

LCD Spec
Model Name	VD-17OPGD01T3
Screen Size	17″
Active Display Area(mm)	337.920(H)x270.336(V)
Pixel Pitch(mm)	0.264(H)x0.264(V)
Display Mode	Normally white
Display Resolution(pixel)	1280×1024
Contrast Ratio	1000:01:00
Brightness	250/300/350nits
Backlight	LED
Viewing Angles(CR=10)	170(H);160(V)
Response Time(Typ.Tr+Tf)	5ms
Optional
Touch Screen	PCAP Touch(10 points)
Privacy Film	Optional
Light Sensor	Optional
I/O Interface
Signal Connector	VGA/DVI-D
Power Consumption	DC 12V
Touch Controller	USB
Mechanical
Dimension(VxHxT)mm	391×323.4×59.2
Environmental
Operating Temperature	0~50℃(Not clotted)
Storage Temperature	-20~60℃(Not clotted)
Relative Humidity	5~90(%RH)
Ordering Information
	OP with 17″ LCD,250nits(optional),1000:1,1280×1024,170(H)x160(V),LED Backlight,5ms(Typ.Tr+Tf);
VD-17OPGD01T3	VGA/DVI-D/USB,PCAP Touch(10 points);
