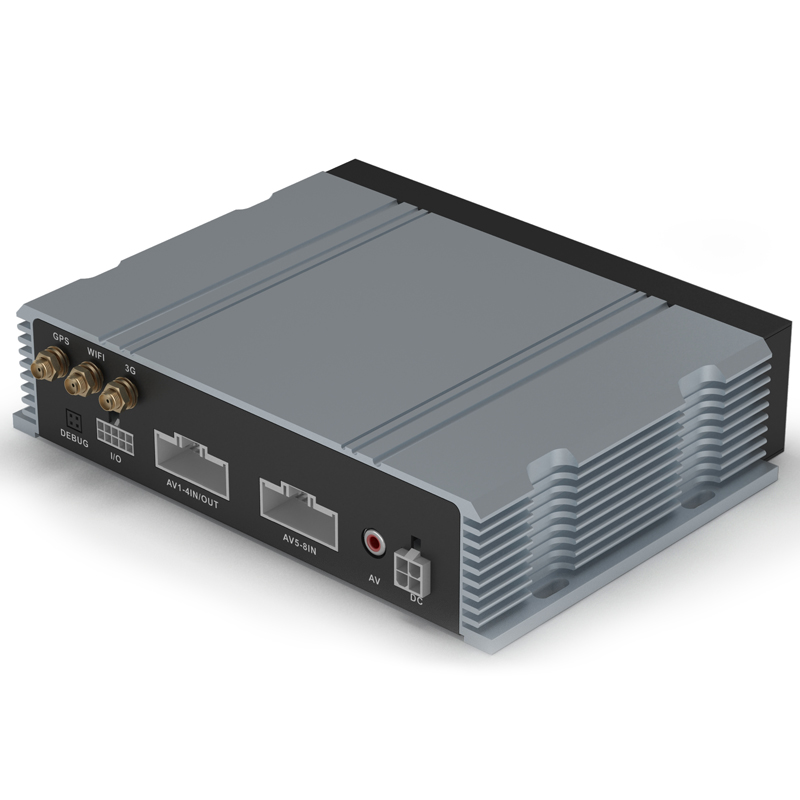

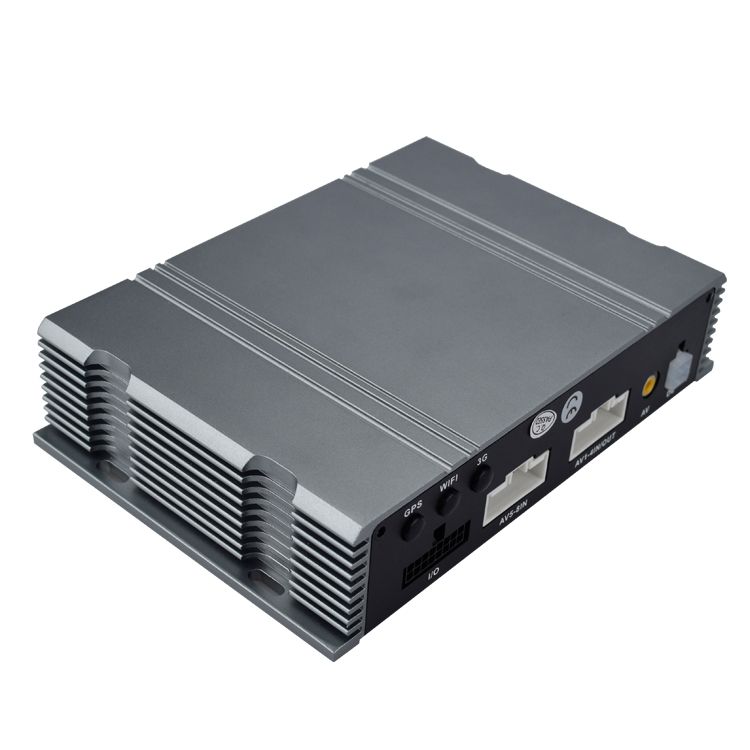

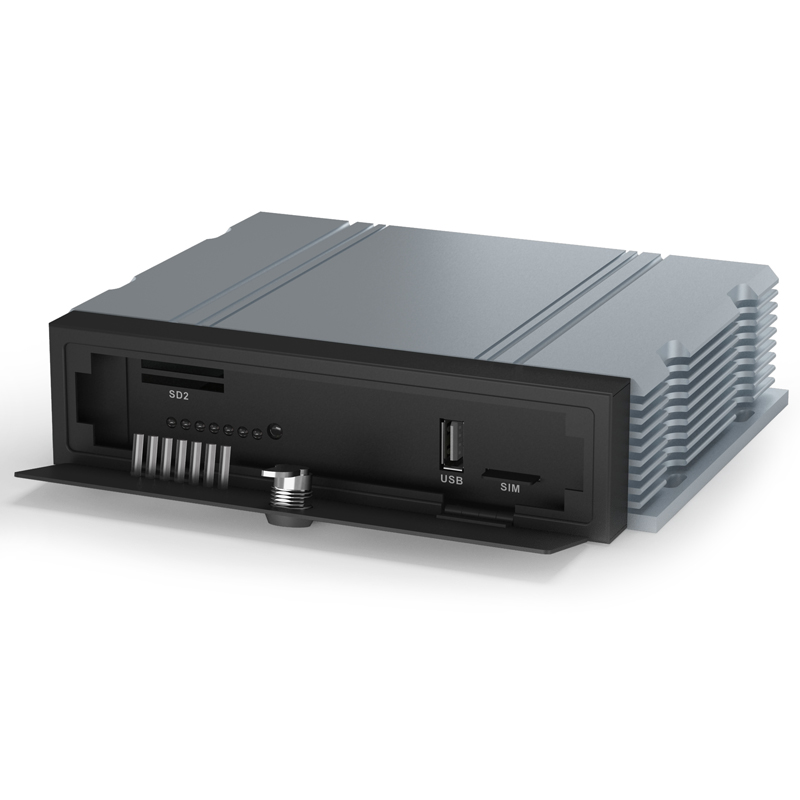

8CH D1 Mobile DVR VD-MDVR8188
This 8ch MDVR is specially designed high price-quality ratio product for the car mobile video monitoring，It adopts embedded processor and embedded operating system, combines the latest technologies in the IT filed like audio and video compression/decompression technology. High-capacity HDD record、wireless transmission、GPS location technology and so on. Its structure adopts special anti-vibration technology. Software using a particular hard disk protection technology to effectively solve the problem of frequently encountered Car DVR hard drives error. The product has good shock resistance, heat resistance and stability; it can be widely applied to various types of vehicles.
Main Function:
- Using H.264 Compression algorithm, high compression ratio, image more clearly;
- With 8-36 V wide voltage design, for all kinds of automobiles;
- Support 8 channels input , can monitor more positions;
- Using special file management mechanism, it can encrypt the data, and effectively protect data security;
- Using particular error scan technology of the hard disk, it can ensure the continuity of recording, and also prolong the hard disk life
- With dual streaming technology, it can ensure the effect of local video recording, and also ensure the wireless transmission effect;
- Support recording to SD card;
- Support tooverlay some vehicle informations, such as the stops information, speed, brake signal, and door open or closed signal;
- Support 3G transmission;
- Support GPS;
- Support WIFI
Specification:
|
|
Model |
MDVR8188 |
|
|
|
system |
Main processor |
|
Hi3520D |
|
|
Operating system |
Embedded LINUX operating system |
|||
|
System resources |
Simultaneous multi-channel real-time recording, playback, network operation， USB backup |
|||
|
interface |
user interface |
support 16-bit true color graphical menu interface and mouse operation |
||
|
preview screen |
|
1/4/8 |
||
|
video |
vdieo standards |
PAL（625line，50f/s）；NTSC（525line，60f/s） |
||
|
vdieo compression |
H.264(Main Profile) |
|||
|
display quality |
monitor：D1 |
|||
|
play quality |
|
|
D1/Half-D1/CIF/QCIF |
|
|
encode capacity |
|
|
8ch D1 real-time |
|
|
decode capacity |
|
|
1ch D1 real-time |
|
|
|
|
|
||
|
audio |
audio compression |
G.711A |
||
|
bidrectional talk |
supported |
|||
|
Record&playback |
record mode |
manual>alarm>motion detection>timing |
||
|
local playback |
Any channel playback simultaneously（1-4ch） |
|||
|
search mode |
Time/calendar/event/channel search |
|||
|
Storage&backup |
space occupation |
video：CIF 4~5G/ day*channel， D1 8~10G/ day*channel； |
||
|
record storage |
Dual SD card |
|||
|
backup mode |
Network backup,USB HDD,USB writer,U disk |
|||
|
interface |
video input |
|
8ch |
|
|
video output |
1ch (1.0Vp-p,75Ω)，1ch for cable |
|||
|
audio input |
|
8ch |
||
|
audio output |
1ch (200-3000mV,5K) |
|||
|
alarm input |
4ch（multiplexing vehicle signal） |
|||
|
alarm output |
2ch |
|||
|
RJ45 interface |
no |
|||
|
RS485 |
One RS485 |
|||
|
USB |
One USB |
|||
|
|
|
|||
|
Mobile interface &functions(optional interface board) |
GPIO signal |
Support vehicle name、speed、turn light、vehicle door、brake、Steering Information and other signals input；support vehicle information OSD overlay、storage etc. |
||
|
GPS Module/external GPS/BDS (optional) |
support GPS data overlay、timing etc. |
|||
|
WIFI module （optional）
|
support RT3070 series module,support auto registration and upload |
|||
|
3G module （optional） |
Support EVDO、WCDMA、TD-SCDMA，support auto registration and upload；perfect narrowband transmission strategy，ensuring 3G network media transports steadily and fluently. |
|||
|
G-Sensor （optional） |
supported |
|||
|
others |
support delay boot up/shut down |
|||
|
complement |
Exclusive player |
Support google map,showing vehicle running track and data. |
||
|
Platform |
Support auto registration，no need of port Mapping，getting rid of 3G access problem.Support google map,showing vehicle running track and data |
|||
|
SDK |
Free SDK for second development |
|||
|
others |
Power supply |
Wide voltage input 6V~36V，15% overvoltage protection，500MS 60V voltage surge |
||
|
External power supply |
Support 4* 12V controllable power supply for external camera |
|||
|
Power consumption |
<10W（HDD without) |
|||
|
Working temperature |
0℃-＋55℃ |
|||
|
Working humudity |
10%－90% |
|||
|
Atmospheric pressure |
86kpa－106kpa |
|||
|
Dimension |
850*145*44mm |
|||
|
weight |
Net Weight 950G |
|||
