Details

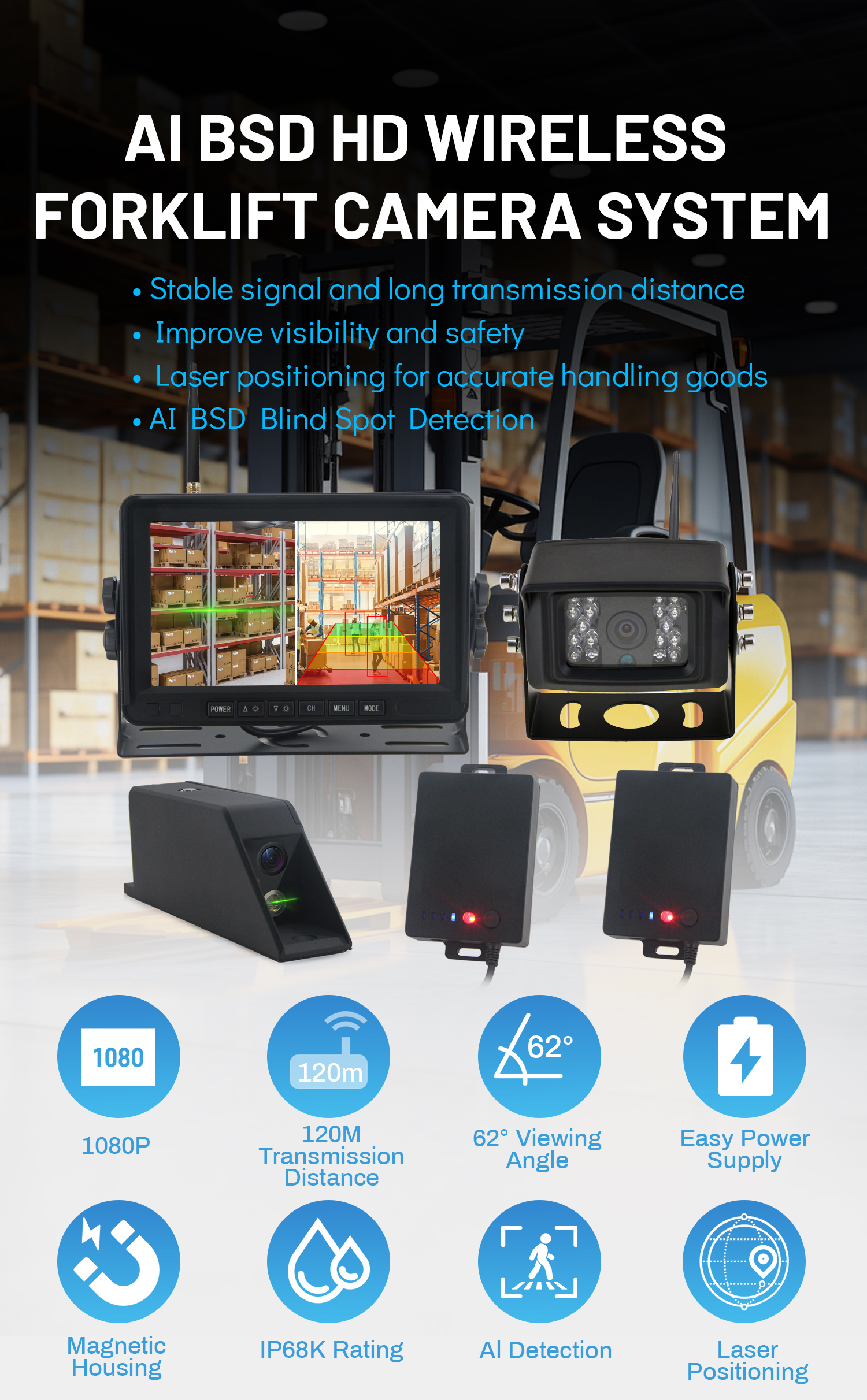

7 Inch AI BSD Forklift Camera Wireless System Monitor with Laser Light and Magnetic Housing for Reverse Camera, Rearview Camera
Features

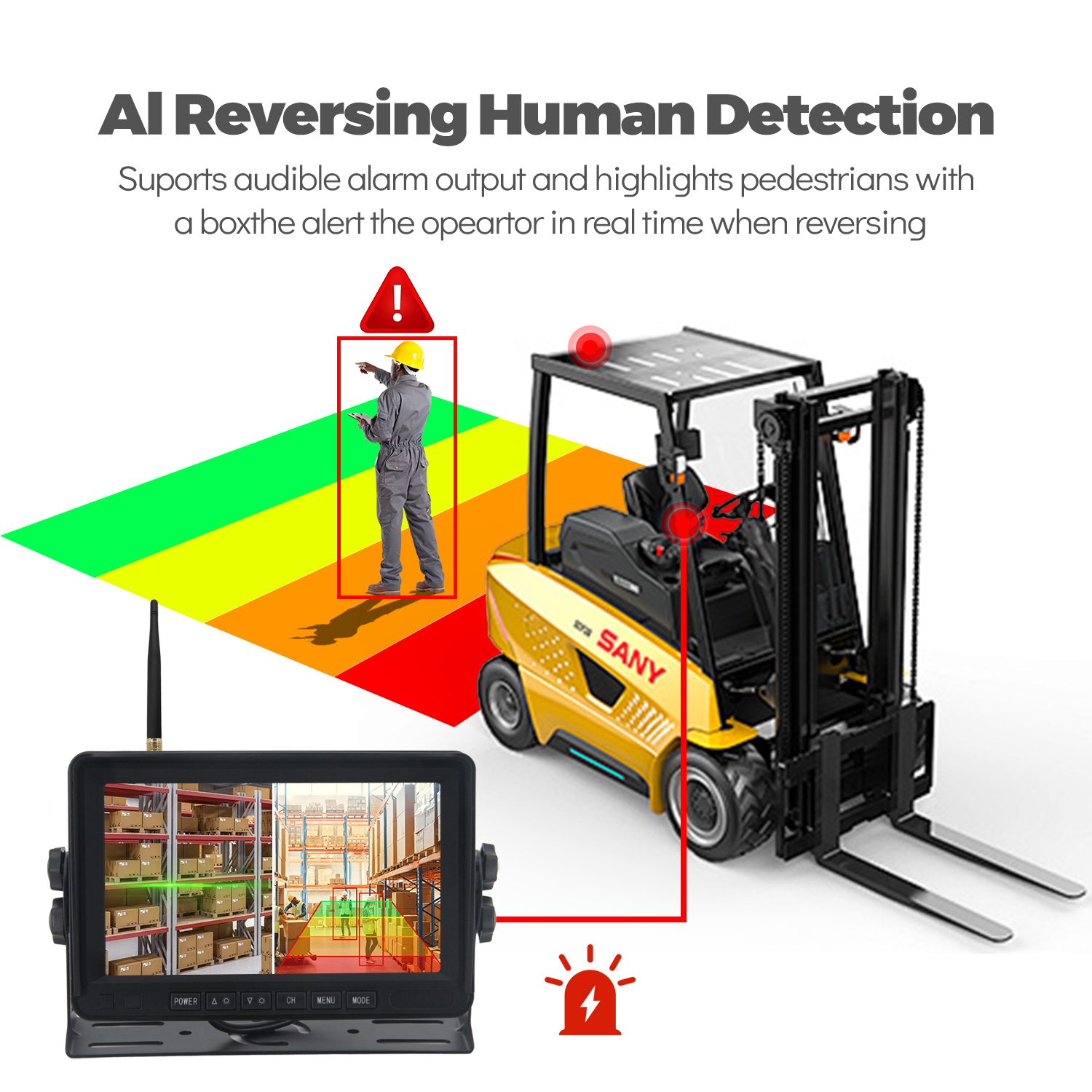

1) 7 inch LCD TFT HD display wireless monitor, support AI BSD Pedestrian blind spot detection

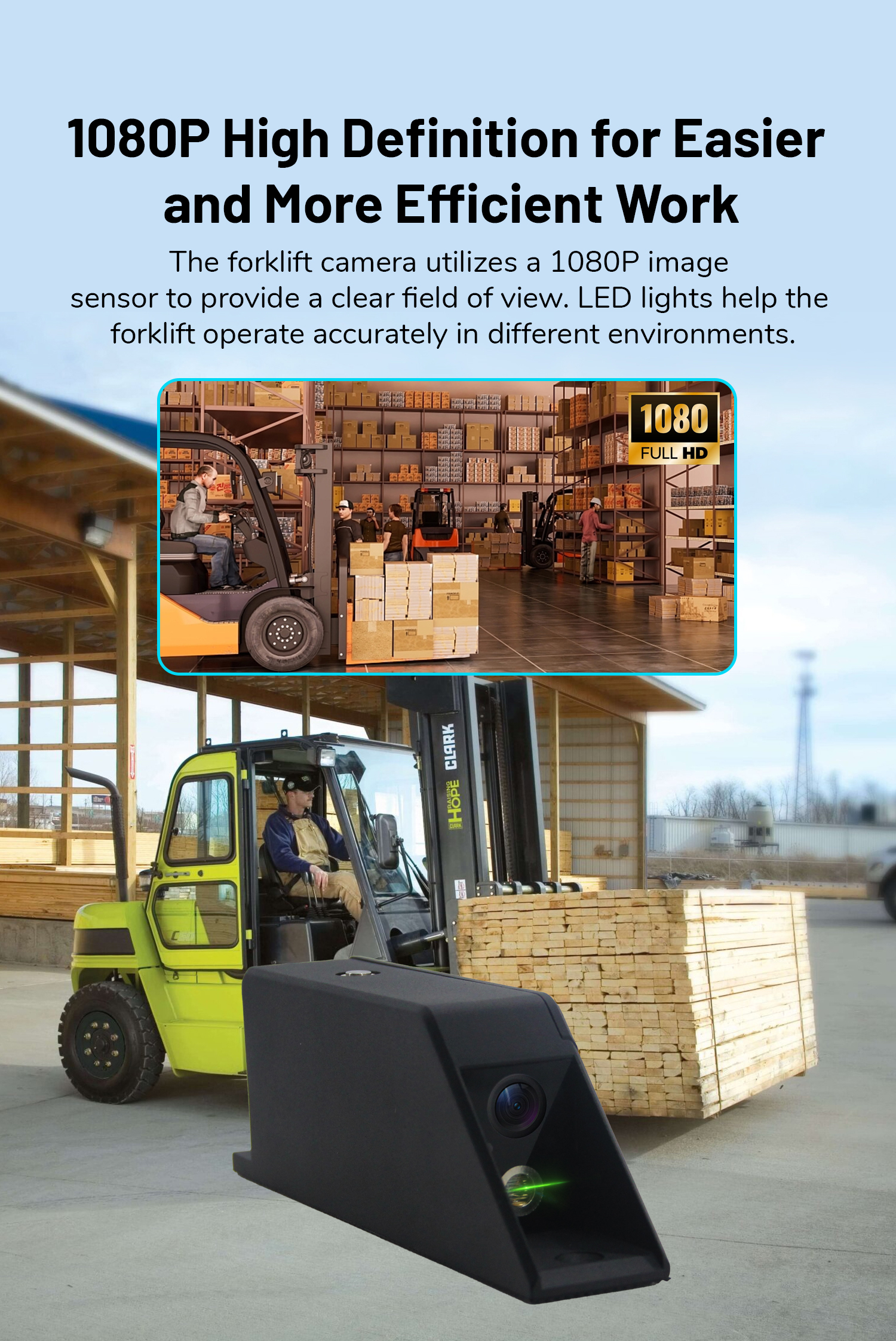

2) 720P wireless forklift camera, IR LED, better day and night vision
3) 720P rear camera, IR LED, IP69 waterproof

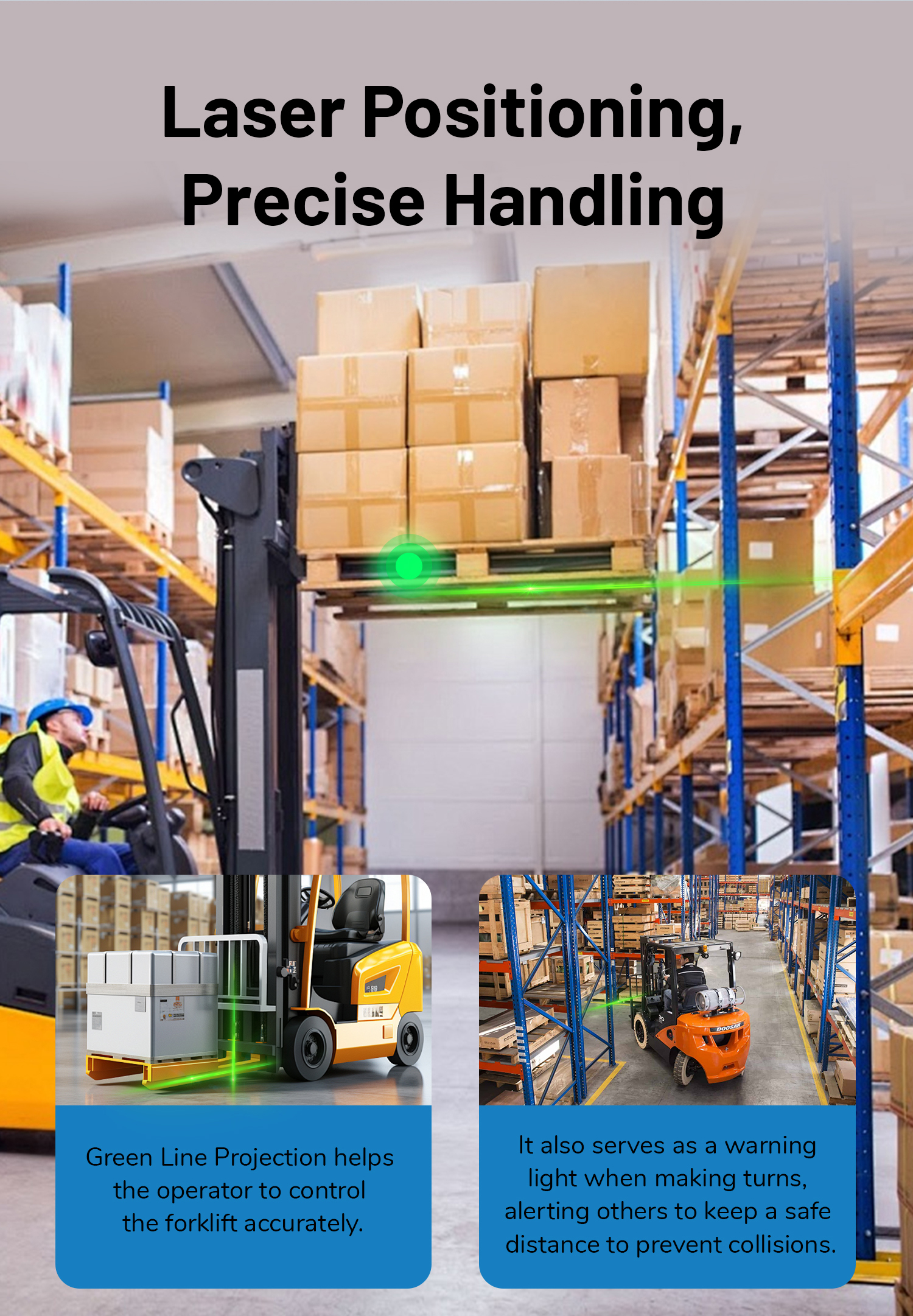

4) Laser positioning for accurate handling goods
5) Support wide operating voltage range: 12-24 V DC

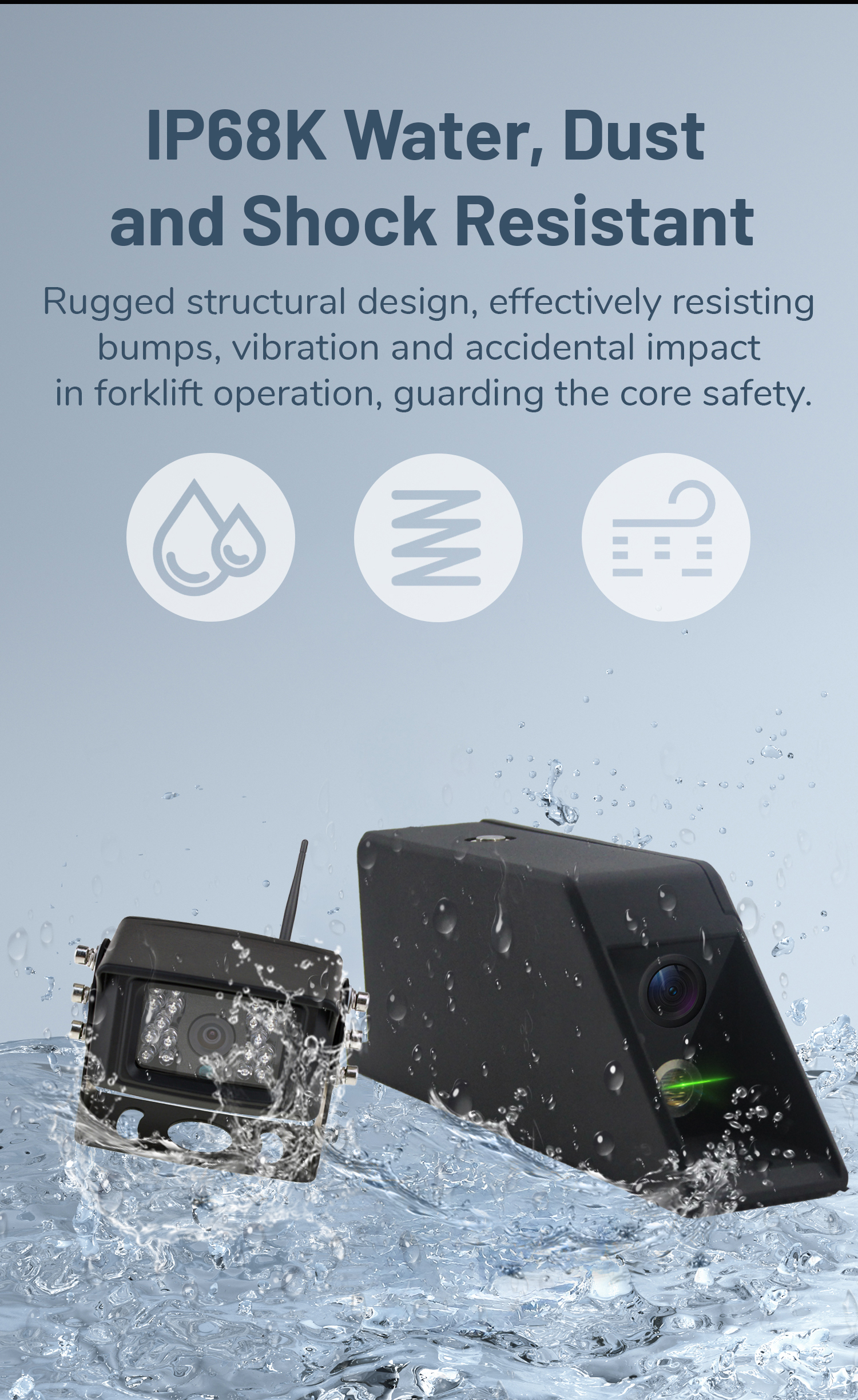

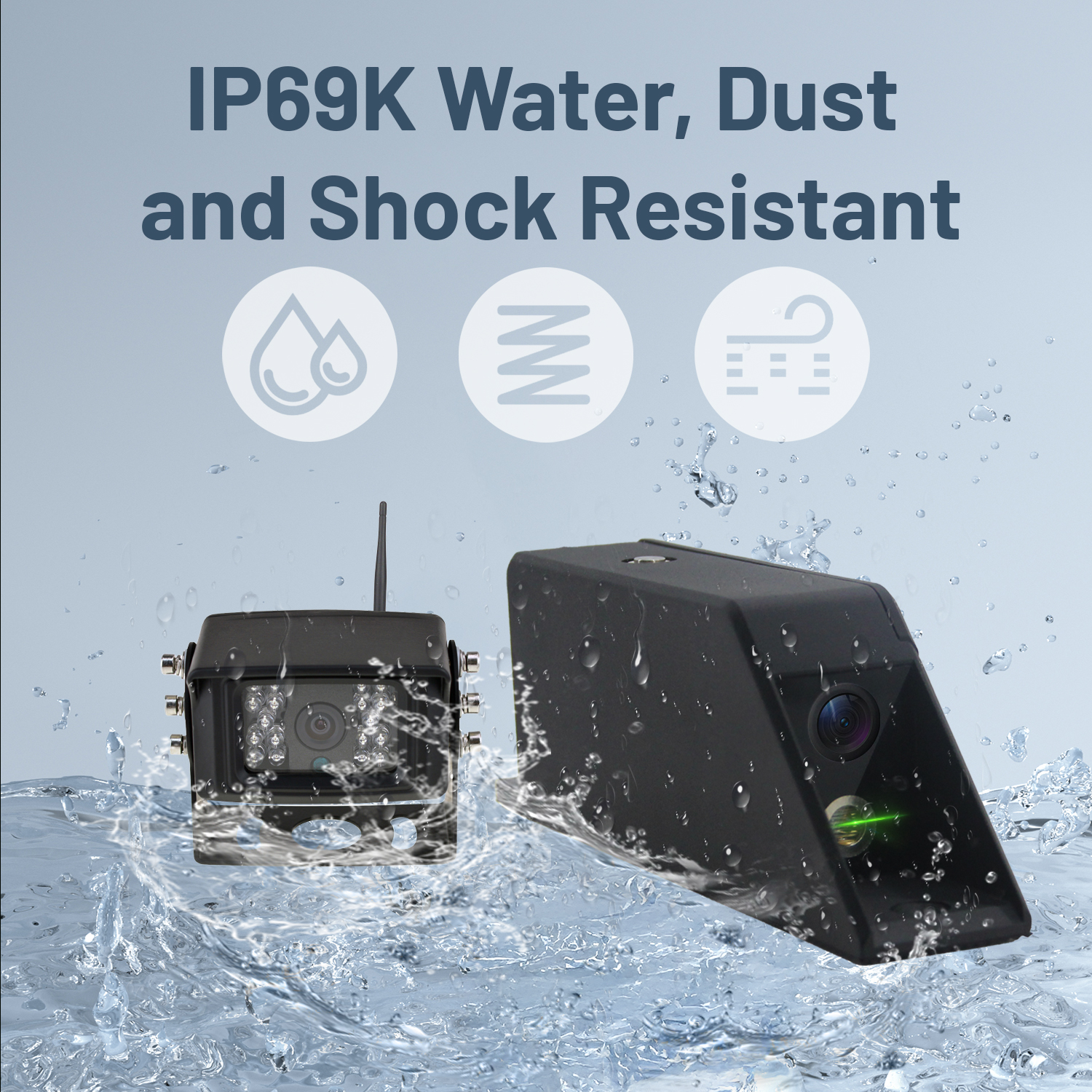

6) IP69 waterproof design for working well in all adverse weather conditions
7) Operating Temperature: -20℃~+70℃, for stable performance in low and high temperature

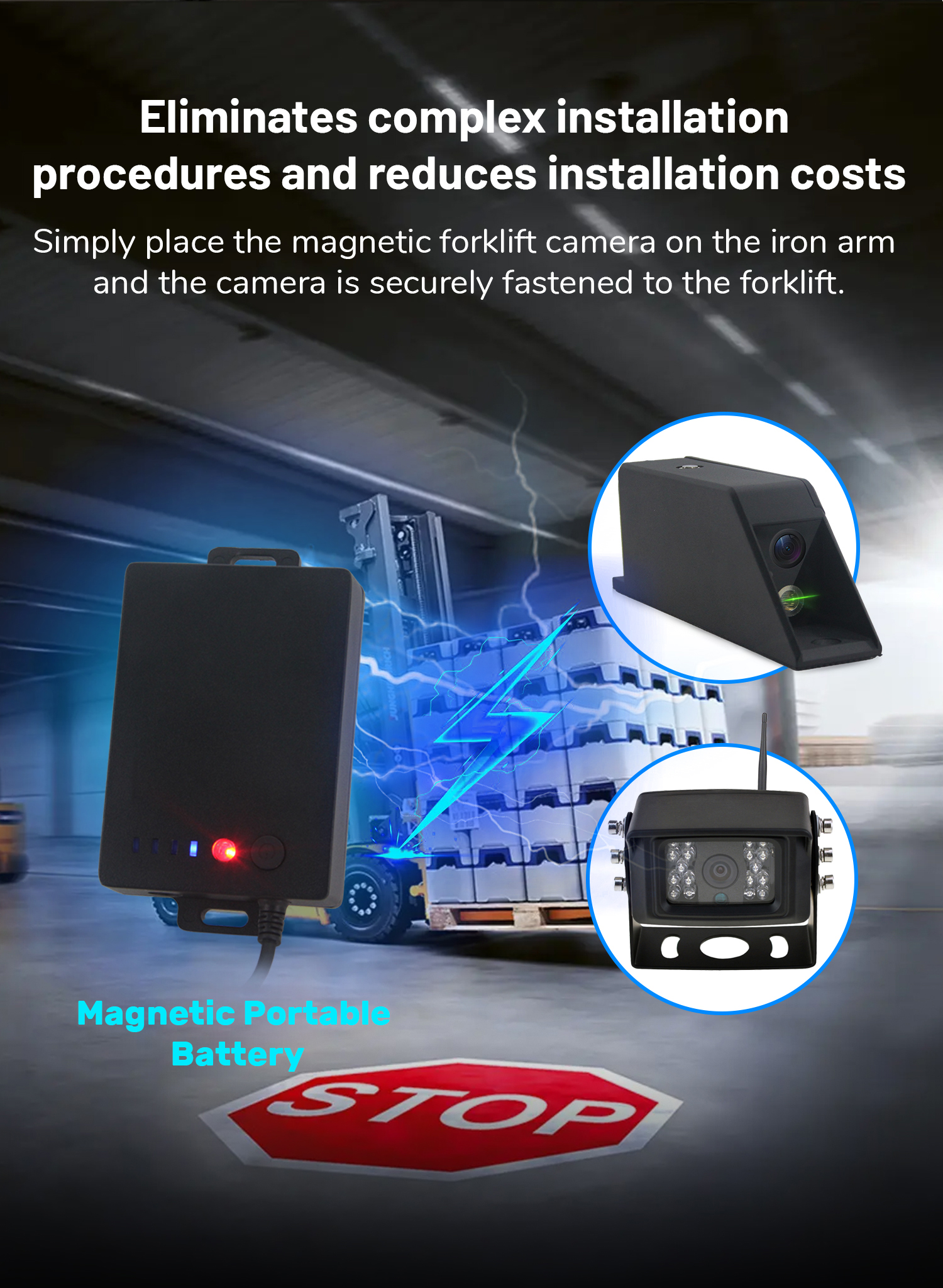

8) Magnetic base for easy and quick installation, mount without drilling holes
9) Automatic pairing with no interference
10) Rechargeable battery for camera power input
More Specifications:
| Wireless HDC Monitor (VD-7019W) | |
| Screen | 7-inch lPS screen |
| Wireless Reveiving | built-in 4 channels of 2.4G wireless reveiver |
| Receiving Sensitivity | ≤-86 dB |
| Resolution | 1024×600 |
| Brightness(cd/m2) | 600 |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC11-32V |
| Outer Dimension | (LxW x T)(216 x150 x80mm) |
| 1080P HD Wireless Camera(VD-RC670W) | |
| lmga Sensor | 1/2.9 Color CMOS |
| Wireless Transmission | built-in 2.4G digital wireless transmitter |
| Transmit Power | 18Bm |
| Resolution | 1080P |
| Waterproof Grade | IP69K |
| Effective Pixels | 1920(H) x1080(V) |
| Visible Angle | 120° |
| Operating Voltage | DC12V |
| Laser light forklift HD Wireless Camera with Magnetic housing and lnner Power(VD-FK601) | |
| Wireless Transmission | built-in 2.4G digital wireless transmitter |
| Transmit Power | 18dBm |

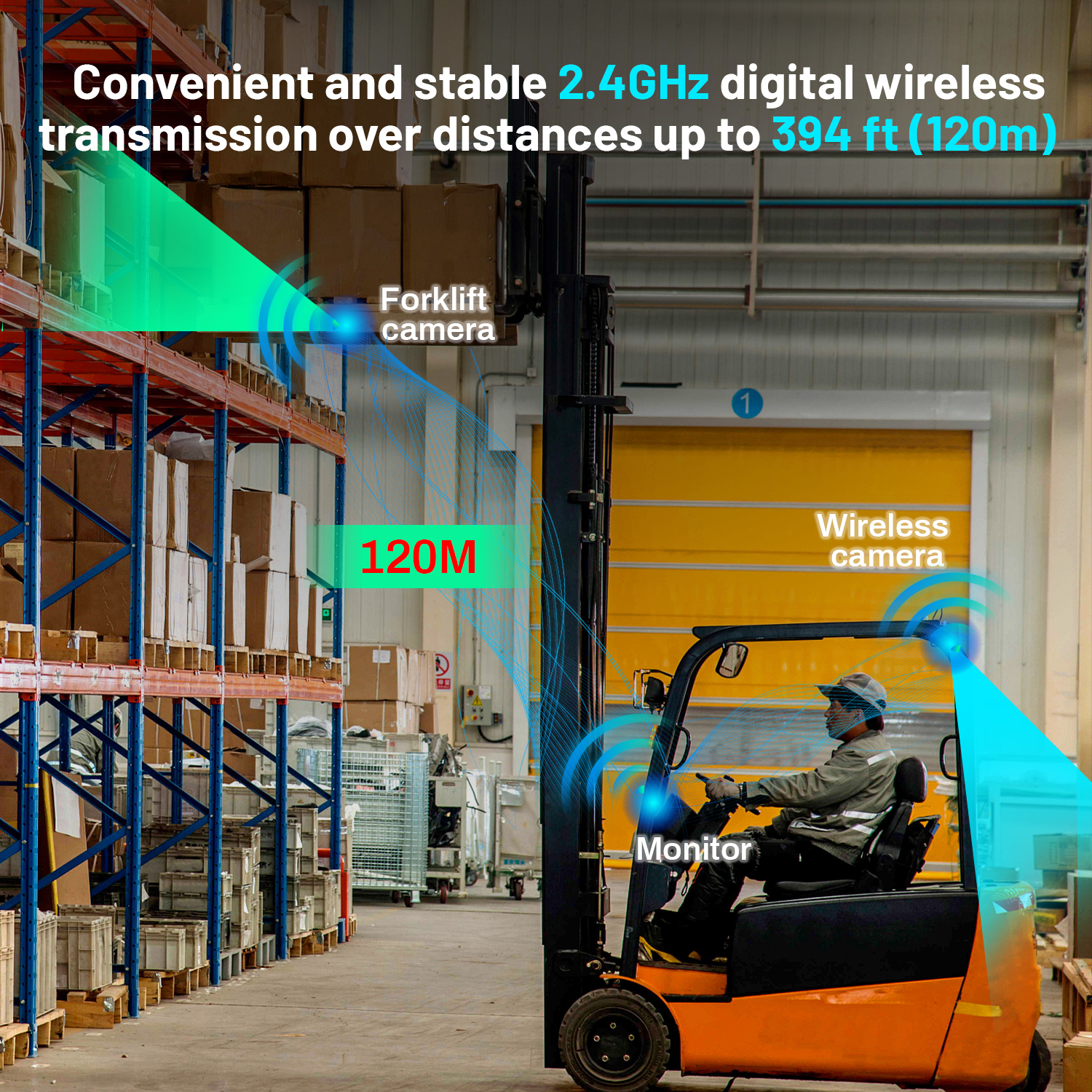

| Transmit Distance | Up to 120m Clear Line of Sight |
| Resolution | 1080P |
| Effective Pixels | 1920(H) X1080(V) |
| Visible Angle | 62° |
| Laser Positioning | Green slotted laser |
| Waterproof Grade | IP69K |
| Operating Voltage | DC12V |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃℃ to +75℃ |
| Mobile Rechargeable Power supply (VD-BA160) | |
| Cell Type | lithium-ion polymers |
| Cell Capacity | 16Ah /16000mAh |
| Rated Capacity | 16000mAh/(12V 0.5A) |
| USB Input (support fast charging) | 5V=15W,9V/12V=36W |
| DC output | 12V(0.8A)-9.6W)Max |
| Waterproof Grade | IP69 |
| Charging Environment Temperature | 0℃~+50℃ |
| Discharge Operating Temperature | -20℃~+55℃C |
| Storage Temperature | -40℃~+70℃ |
| Outer Dimension | 120(W)x85(H)x30.5(D) mm |
