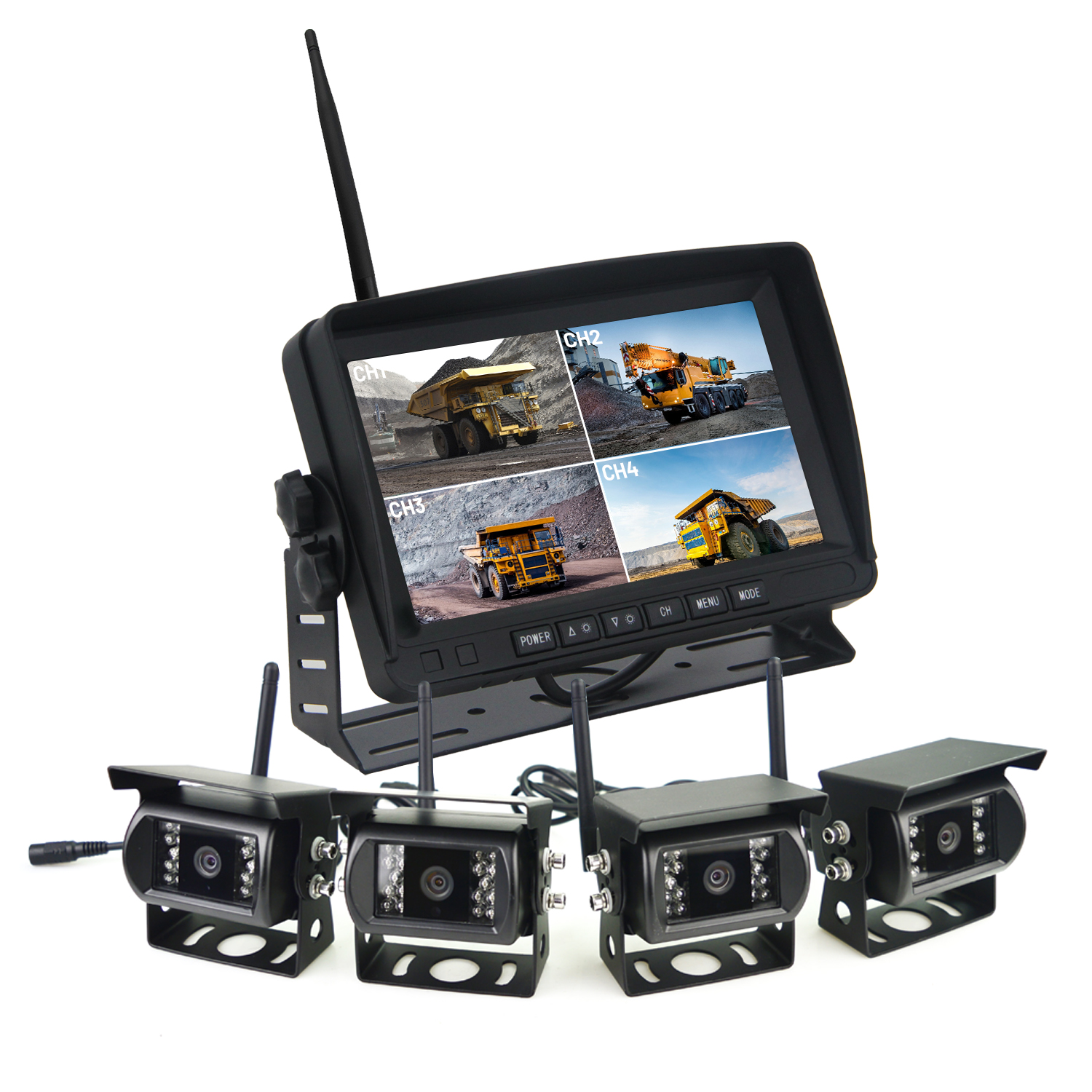

7 Inch Wireless Monitor 4CH Camera System with AI BSD Reversing Screen for Trucks
Advantages:
1. Heavy Duty Digital wireless video camera surveillance system 4 channels four pictures used in the container trailers, tank trailers, cranes, and other construction vehicles, without cables through the routing application, you can monitor four screen images and video playback screen.
2. 7 “digital screen TFT LCD display, built-in DVR, 2.4GHz digital wireless receiver, four screen /Dual screen/ single-screen display, drawing the line of the menu, and individually set Front / Left / Right / Back frame around the mirror, upside down, flipped up and down, Back channel individually set reversing ruler.
3. Auto pairing: auto pairing happen when camera is powered on
Support 4ch single channel recording in AVI format.
4. Auto dim function, auto adjust the brightness during day and night time
4pcs 2.4GHz Digital Wireless Camera Aluminum Camera IP69K input
Built in speaker optional
5. DC14~+87V(Td400mS) 5pulses Load Dump,400cd/m2 Brightnes
Auto swith to the working channel when trigger wire is activated
More Specifications:
| Digital wireless Receive Monitor(Model:VD-7019WH) | |
| 7″ Digital Screen TFT LCD Monitor with Removable Sun Visor | |
| Built-in 2.4G digital wireless receiver module, supports single screen / quad screen display | |
| Built-in DVR recording function, maximum support 128G sD card, can record for 16hours(sD card not including) | |
| Operation Frequency | 2400 ~ 2483.5MHZ |
| Receiving Sensitivity | ≤-86dBm(1MHZ QPSK MD300RE) |
| Overlapping Hopping Channel | 80 |
| Color System | PAL/NTSC |
| Display Resolution | 800RGB(H)x 480(V) dot |
| Wide view angle(CR>10) | (up/ down):50/70 (left/right): 70/70 |
| Brightness (cd/m2) | 400 |
| Contrast ratio | 400:1 |
| Operating temperature | -20’C to +70° |
| Storage temperature | -30’℃ to +80℃ |
| Free Operating Voltage | DC10~32V |
| External dimensions | (L x W xT)(234 x158 x 8lmm) with mounting Sun Visor |
| Weight Approx | 479g |
| Digital wireless Waterproof IR Camera(MODEL:VD-7019WH) | |
| Image Type | 1/3 inch Color CMos |
| Built in 2.4GHz Diqital wireless transmitter | |
| Transmission Power | 18dBm with Power control |
| Line of Sight Range | ≤100M |
| Horizontal Resolution | 700Tv Lines |
| Effective pixel | 976(H)x596(V) |
| Usable lllumination | 0Lux ( Built in 18pcs IR LED’s for Picture Support in the Dark） |
| Free viewing angle | 120° |

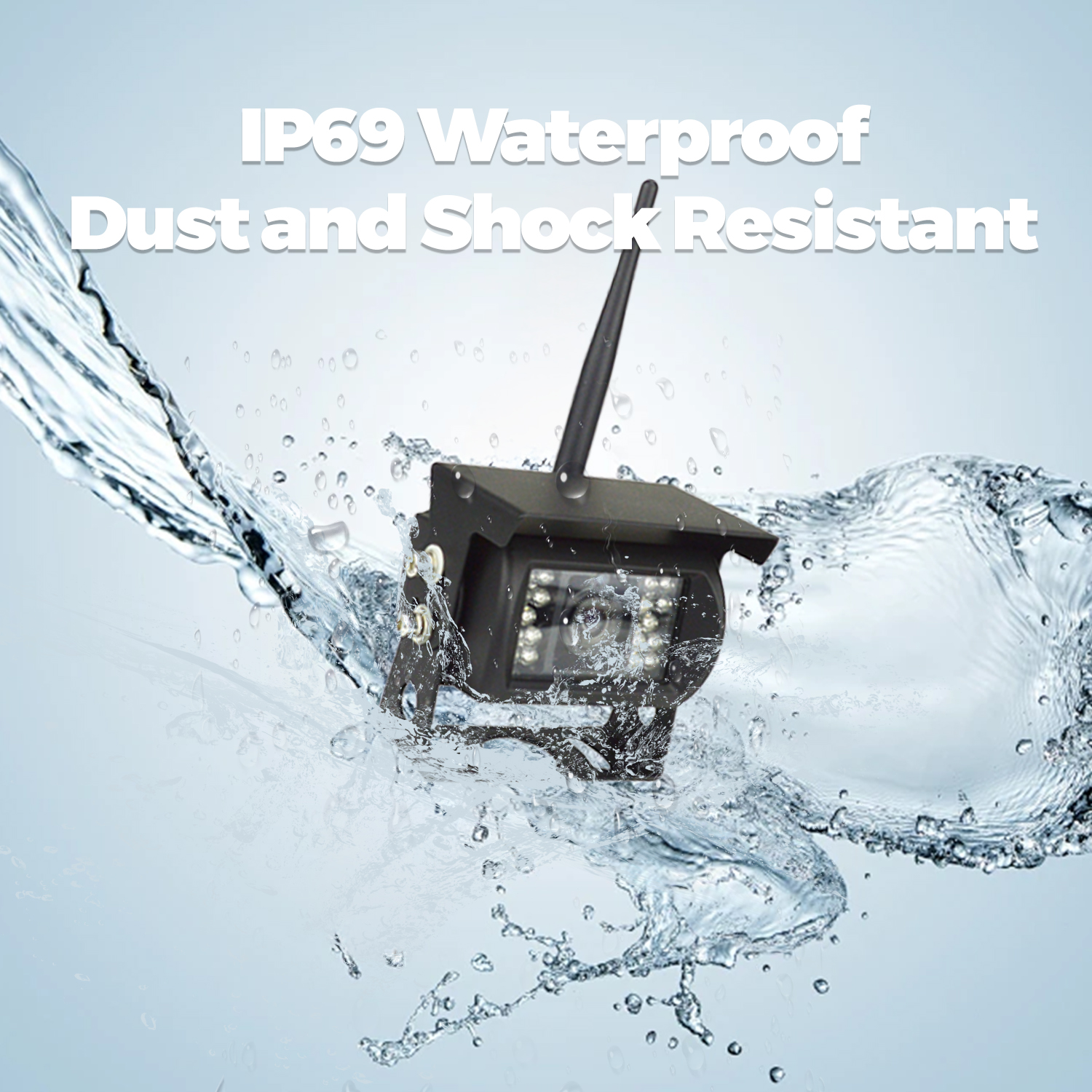

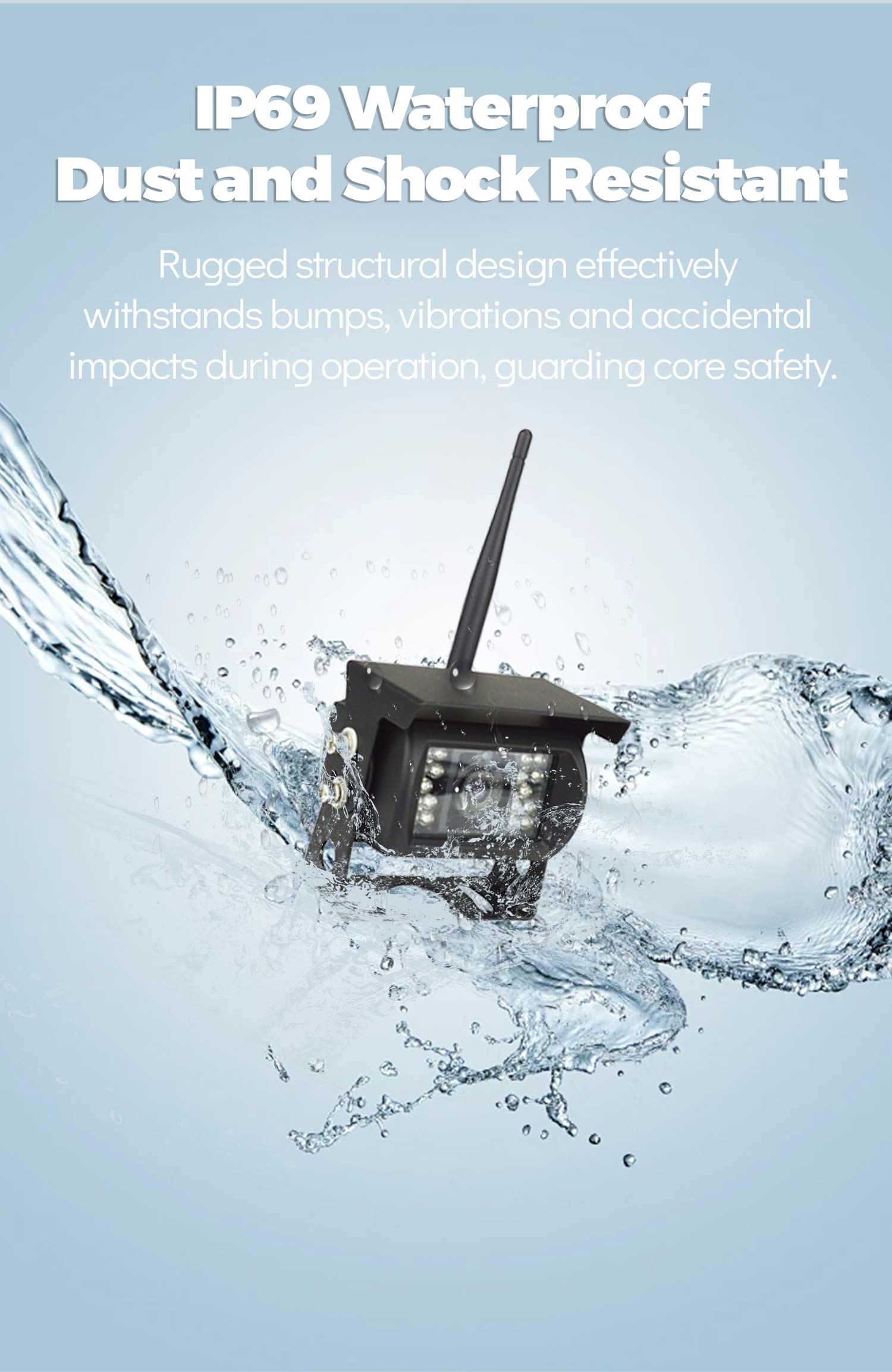

| Waterproof | IP69k |
| Shockproof | 10G |
| Free operating Voltage | DC10-32 Volts |
| Dimensions | 80(L)x70(w)x77(H)mm(with mounting) |
| Weight | 450g |
| Accessorie | |
| U- Support Bracket,Angle Adjustment Screw*2,Removable Sun Visor*1,Electrical ConnectingCable*5,Antenna*6,Stainless steel Screw *2,User’s Manual*1 | |
