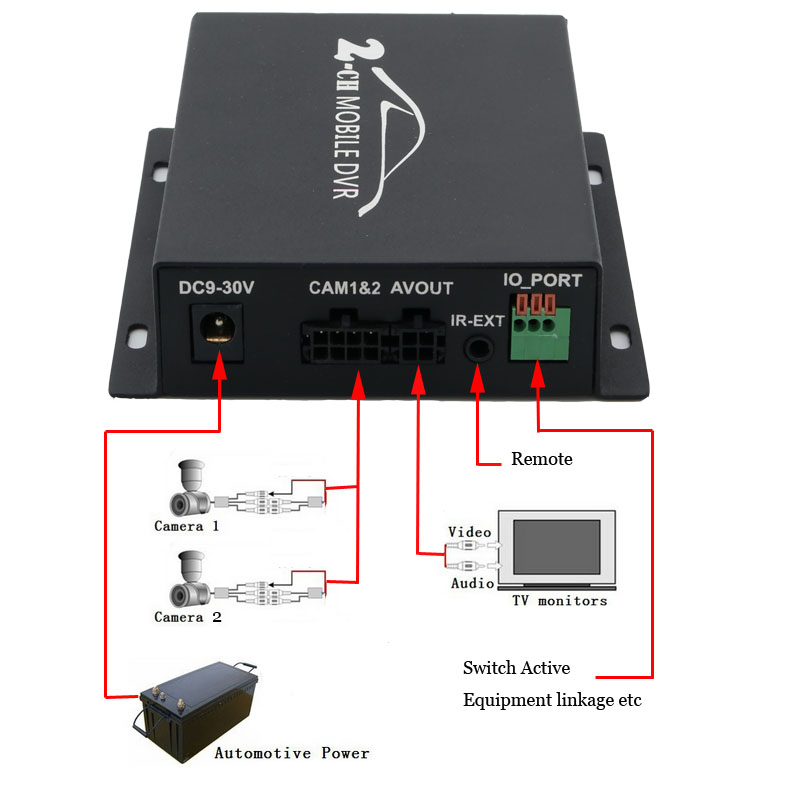

This is a smallest HD 1080P 2 Channel SD DVR, with the most powerful functions in China market here now, it can work in vehicles and other ranges. It works with CVBS and AHD, avi format and save videos in SD cards. You can use 4 modes on records: Power-up, Manual, Motion Detection, Scheduled Record; You can also take JPEG photos with audio playback, fast-forward, pause, HDMI 1080p output, and normal analog CVBS video output, password login, etc.
New HD Audio Video Encoding and decoding technology
Intelligent Power Support
SD Card Hot Insert/Remove Support
Video files can be playback by the media players below:
Item |
Data |
Description |
|
System |
Language |
Simple Chinese/English |
|
Interface |
Image menu |
||
Video |
Video input |
1/2 Channel composite input(AHD) 1.0V, p-p,impendence 75Ω,BNC |
|
Video output |
1 Channel composite output, 1.0V, p-p,impendence 75Ω,BNC |
||
Video display |
1/2 channel in 1 screen, 2CH split |
||
Resolution & AHD Standard |
CVBS (720X576) AHD 720P (1280X720) AHD 1080P (1920X1080)
|
||
Audio |
Audio input |
1/2 channel audio input,impendence 47KΩ,RCA |
|
Audio output |
1 channel audio output,impendence 10K,RCA |
||
Record mode |
Audio video Synchronous recording |
||
Audio compression |
G711 |
||
Image and storage
|
Image compression |
AVI High Profile,auto adapt to dynamic bit stream |
|
video bitrate |
D1: 200Kbps ~ 10Mbps,5 levels of image quality for options |
||
Audio bitrate |
8KB/s(after compression) |
||
storage |
One SD slot (256G MAX) |
||
Record |
AVI audio video sync file output |
||
3rd party media |
VLC media player, storm media, WINAMP |
||
Update |
SD card upgrade |
||
Power |
Input |
DC:+10V ~ +36V |
|
Output |
+12V@1.5A |
||
Power |
Less than 5W |
||
Temp |
Working Temp |
-10℃ ~ +60℃ |
|
Dimension |
10CM(W)×2.8CM(H)×11.2CM(L) |
