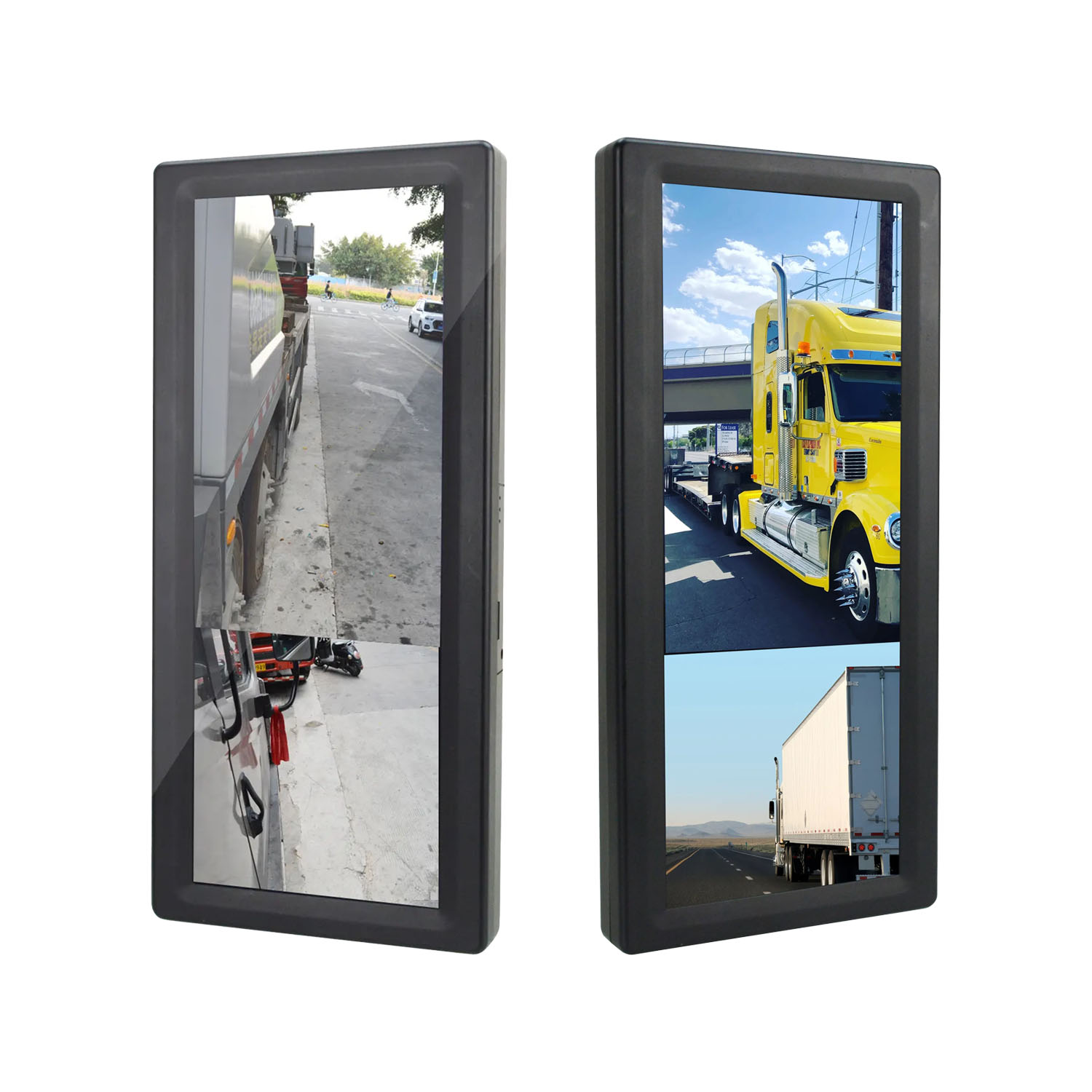

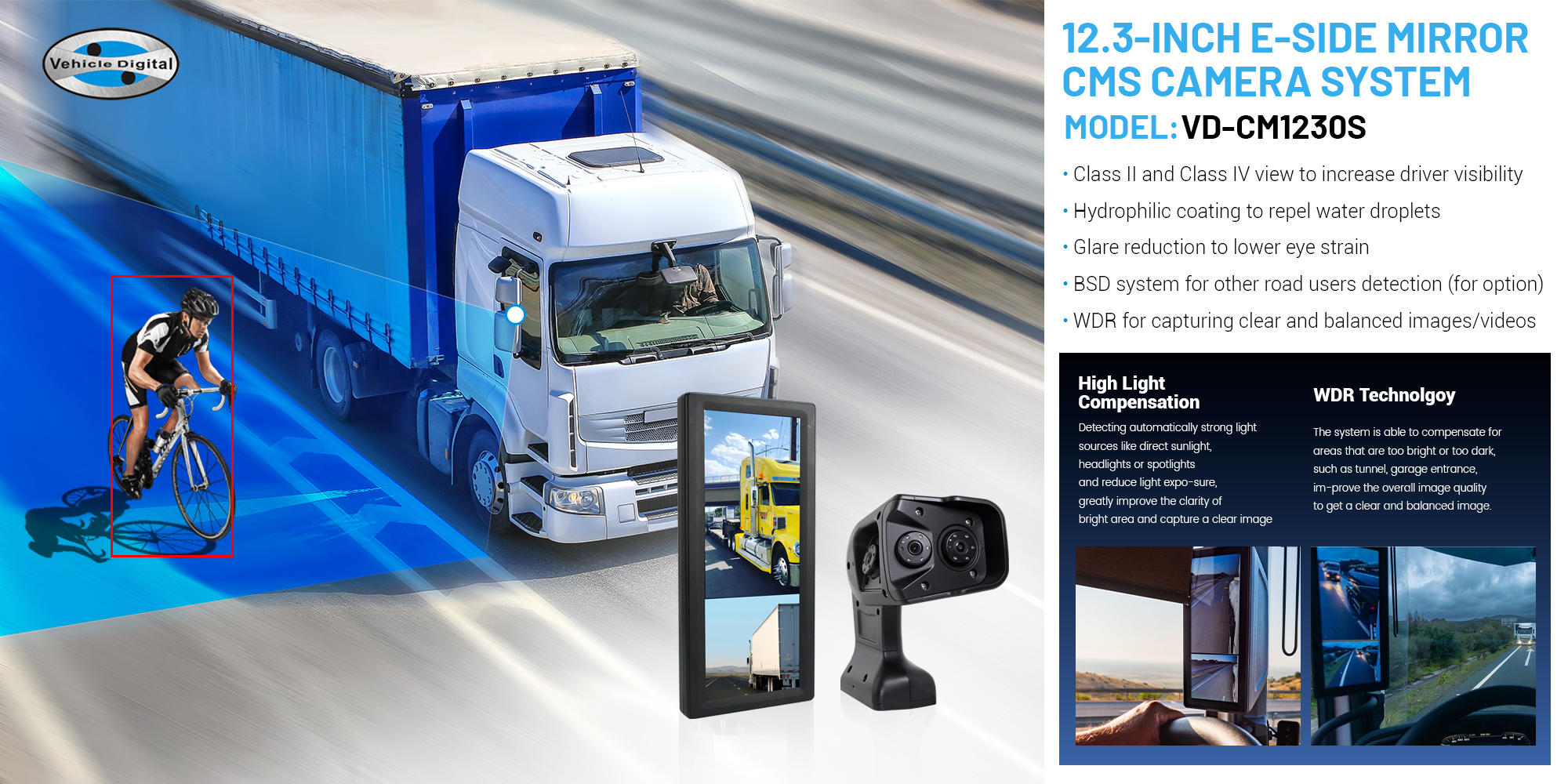

12.3 inch HD Dual Screen Electronic Mirror Monitor for Trucks and Buses Blind Spot Monitoring
Features:
1. Combines DVR Function:1080p full HD: a major upgrade of in vehicle monitor! It can record and replay driving videos.
2. This function can help you free from unreasonable damage and responsibility.
3. Fast output speed: quick turn-on, start displaying images and recording videos within 3 seconds after powered.
4. Super Good View Angle IPS Screen: high contrast, high brightness. It could restore the true color, presenting the brighter and more delicate display with much higher resolution.

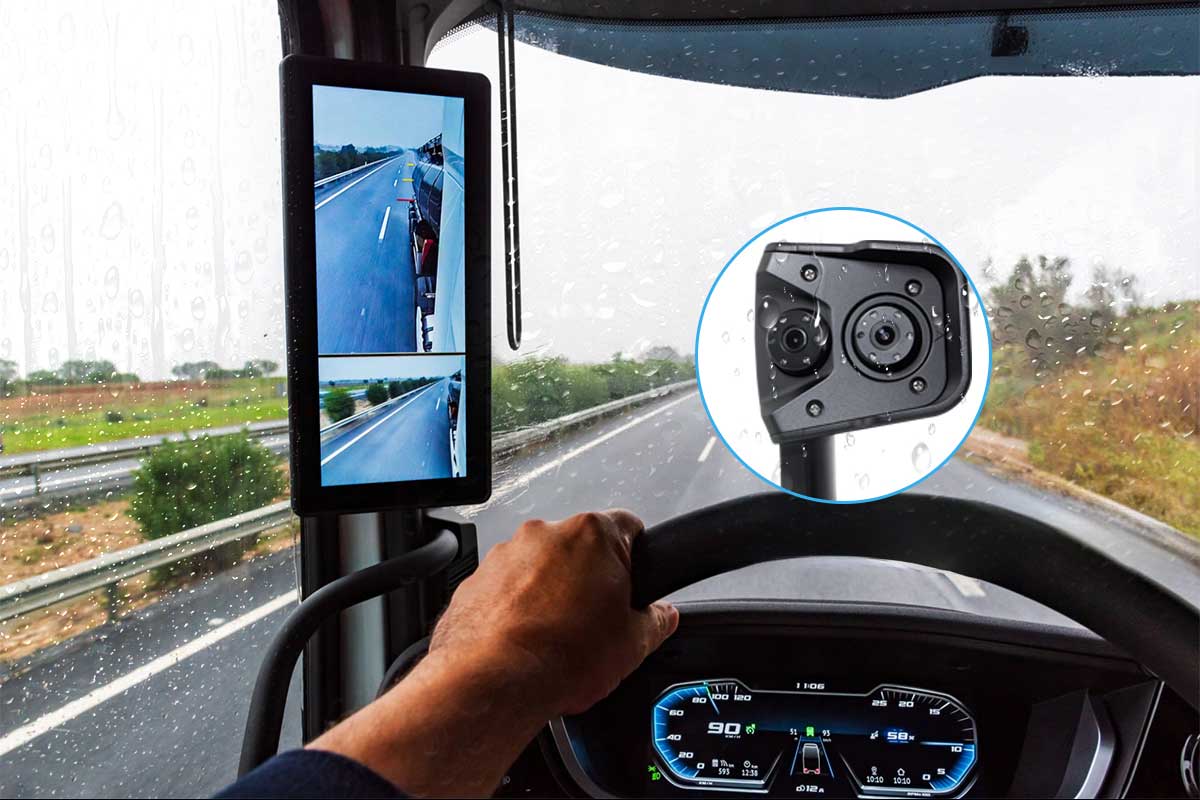

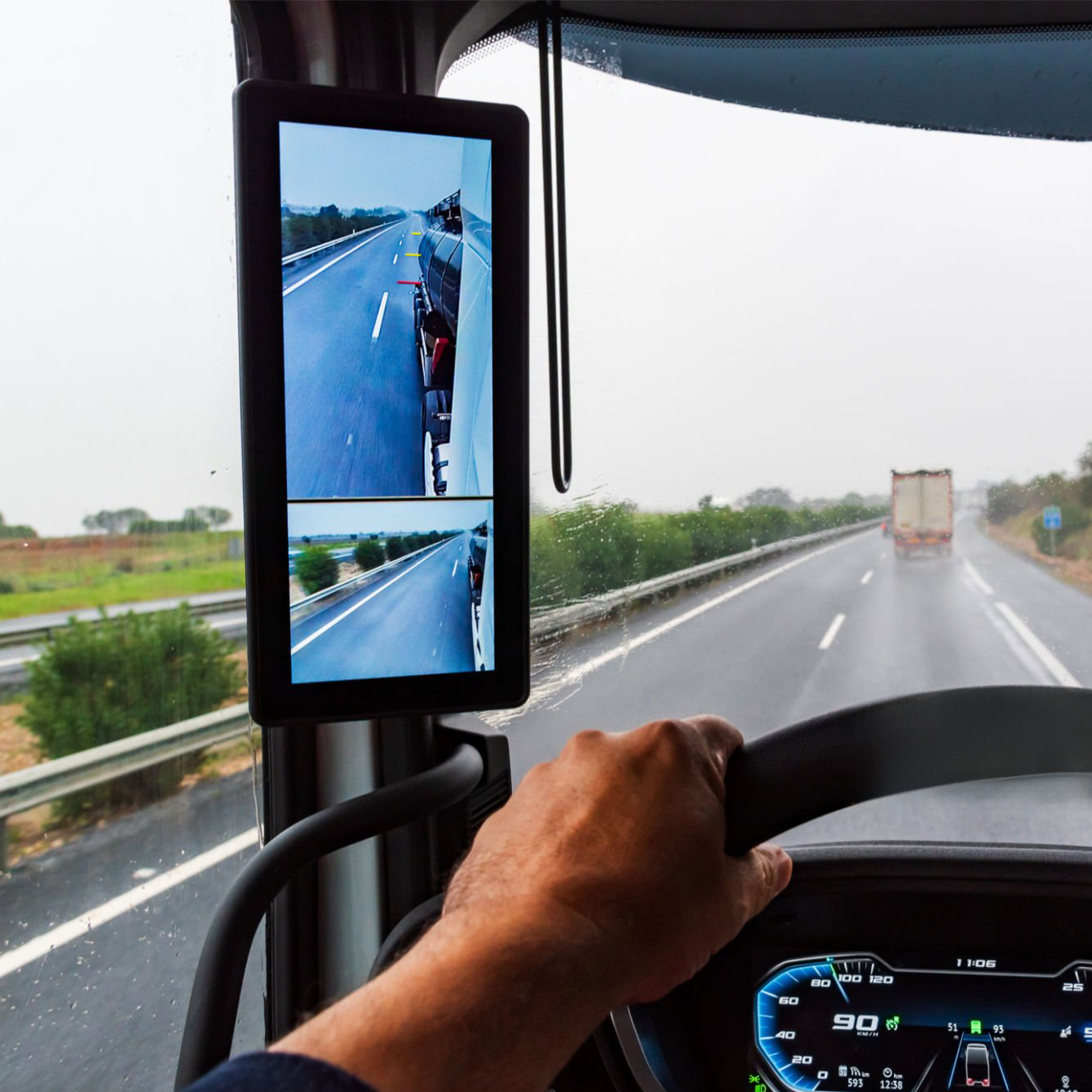

5. Replacement for Traditional Rearview Mirror: This monitor had solved the problems of being poor visibility during driving at night, susceptible to rainy, snowy and foggy weather and having strong reflection, etc. Showed on traditional rear-view mirrors.
6. Data security: ACC time-lapse recording; super capacitor power-down protection, to prevent the loss of video data.
| 1. 12.3 inch IPS vertical monitor | |
| 2. Four Channel AHD video input | |
| 3. 12-24V power supply, 12V / 800mA | |
| 4. Support CVBS, 720P, 1080P camera mixed input | |
| 5. OSD menu, remote control | |
| SPECS | Model No.: VD-CM1230AHD |
|
Screen ratio
|
8:3
|
|
Screen resolution
|
1920(H)*RGB*720(V) |
| Backlight |
LED, brightness 850 cd/M2
|
|
Frame rate
|
1080P: P25f/s/N30f/s
|
| Contrast |
1100:1
|
|
Viewing angle
|
UP-85°,DOWN-85°, LEFT-85°, RIGHT-85°
|
|
Working temperature
|
-20~+70 ºC
|
|
Working humidity
|
85%RH
|
|
Storage temperature
|
-30~+85 ºC
|
|
Power supply
|
12-24V
|
|
Boot time
|
12S |
|
Current consumption
|
TYPE:750mA
|
|
OSD control
|
Channel Character and time could be displayed on the screen at the same time |
|
Power consumption
|
Normal working state < 9W (excluding camera)
|
|
Signal input
|
2CH 1080P, 960P, 720P, 960H, D1 (CVBS) video input Compatible with CVBS and AHD signal input Compatible with PAL and NTSC system input |
|
Recording function
|
Support |
|
TF card storage
|
Support 2-256G
|
|
Video compression format
|
H.264 compression mode
|
|
Video resolution
|
1920*1080
|
|
Video playback
|
2 channel synchronous playback, support pause, fast forward, fast backward |
|
File format
|
DAT |
|
File size
|
1GB/46min
|
|
System Language
|
Chinese, English (support customized languages)
|
|
Display
|
Multiple split screen switchable
|
|
2Trigger control
|
2CH trigger control, with parking guide line
|
|
System
|
PAL/NTSC automatically
|
|
Shockproof level
|
4G
|
|
Audio
|
Support camera recording(CH1)
|
|
Speaker output power consumption
|
no |
Driving Safety Problems Caused by Traditional Rearview Mirror
can contribute to driving safety problems. Some of the issues caused by traditional rearview mirrors include:
Glare and Bright Lights: The reflection of headlights from vehicles behind you can cause glare and discomfort, making it difficult to see the road or other vehicles clearly. This can be especially problematic at night or in adverse weather conditions.

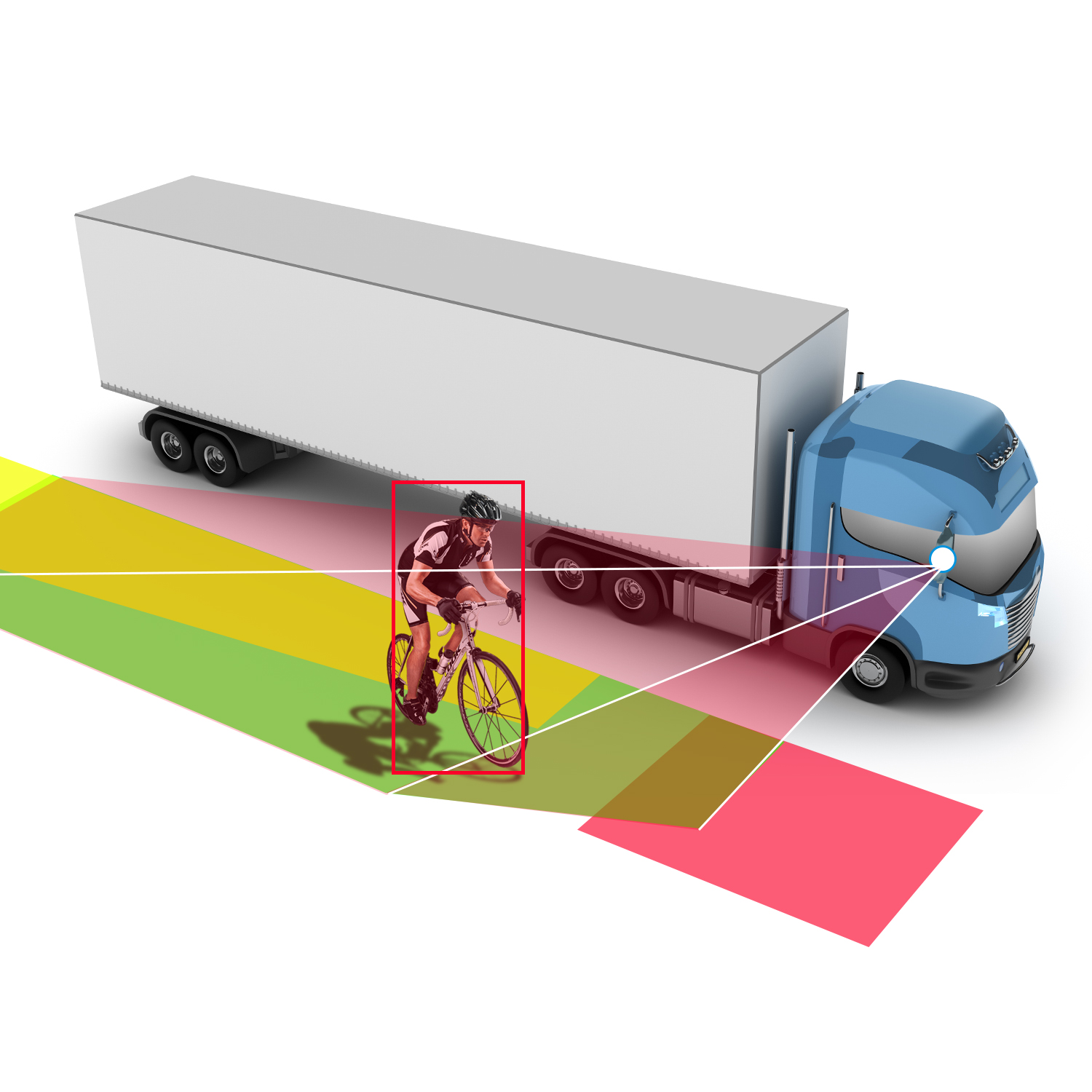

Blind Spots: Traditional rearview mirrors have fixed angles and may not provide a complete view of the area behind and to the sides of the vehicle. This can lead to blind spots, where other vehicles or objects are not visible in the mirror, increasing the risk of collisions when changing lanes or merging onto highways.
Weather-Related Issues: Rain, snow, or condensation can accumulate on the mirror’s surface, reducing its effectiveness and further limiting visibility.

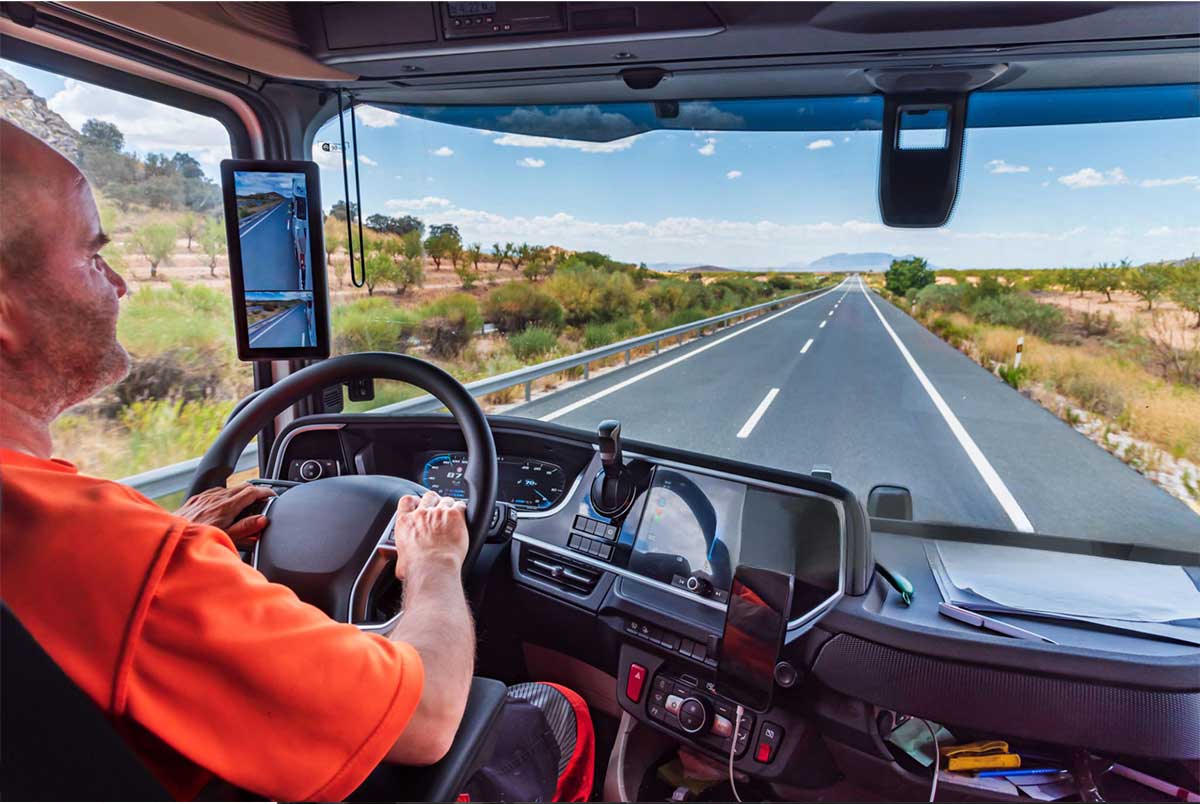

Traditional Rearview Mirrors Replacement
Hydrophilic Coating
