1080P DMS Camera with Night Vision & Fatigue Alert for Taxi, Ride-Hailing, Commercial Vehicles
Core Technology Highlights
•Triple-Layer Safety Defense
AI Fatigue Detection: Real-time analysis of driver’s eye closure/blink rate (PERCLOS) & yawning frequency with >98% accuracy
Night Vision Optimization: 850nm IR LEDs + STARVIS™ CMOS sensor for clear monitoring in 0.1-5 lux darkness
Critical Value for Fleets
• Proactive Risk Control
♦ Reduce 43%* fatigue-related accidents (*Based on 2023 EU fleet trial data)
♦ Generate driver behavior scoring reports via cloud platform (4G/WiFi connectivity)
♦ Instant alarm triggers: Voice/Seat vibration/HUD warning multi-channel alerts
Specitications:
| Product model: | VD-DMS902 |
| imaging device | 1/2.9″CMOS AHD (GC2053) |
| standard | NTSC |
| Effective Resolution | 1920(H)X1080(V) |
| Effective Pixel | 1080P |
| Vertical Synchronization Frequency | 50Hz/60HZ |
| Minimum lllumination | 0.1Lux/F1.2 |
| Video Output | 1.0vp-p, 75Ω |
| Gamma Coefficient | 0.45 |
| AGC | automation |
| sound-to-noise ratio | Greater than 48dB |
| White balance | automation |
| Backlight Compensation | automation |
| Lens | 3.6mm F=2.0 |
| Horizontal Angle | 80° |
| Effective diagonal | 90° |
| Infrared lamp effective distance | 1m |
| Current | 12V/140mA+10% (when IR light is on) |
| Voltage | DC5-16V |
| Working Temperature | -20°C~70°C,RH95% MAX |
| Storage temperature | -30°C~80°C,RH95% MAX |

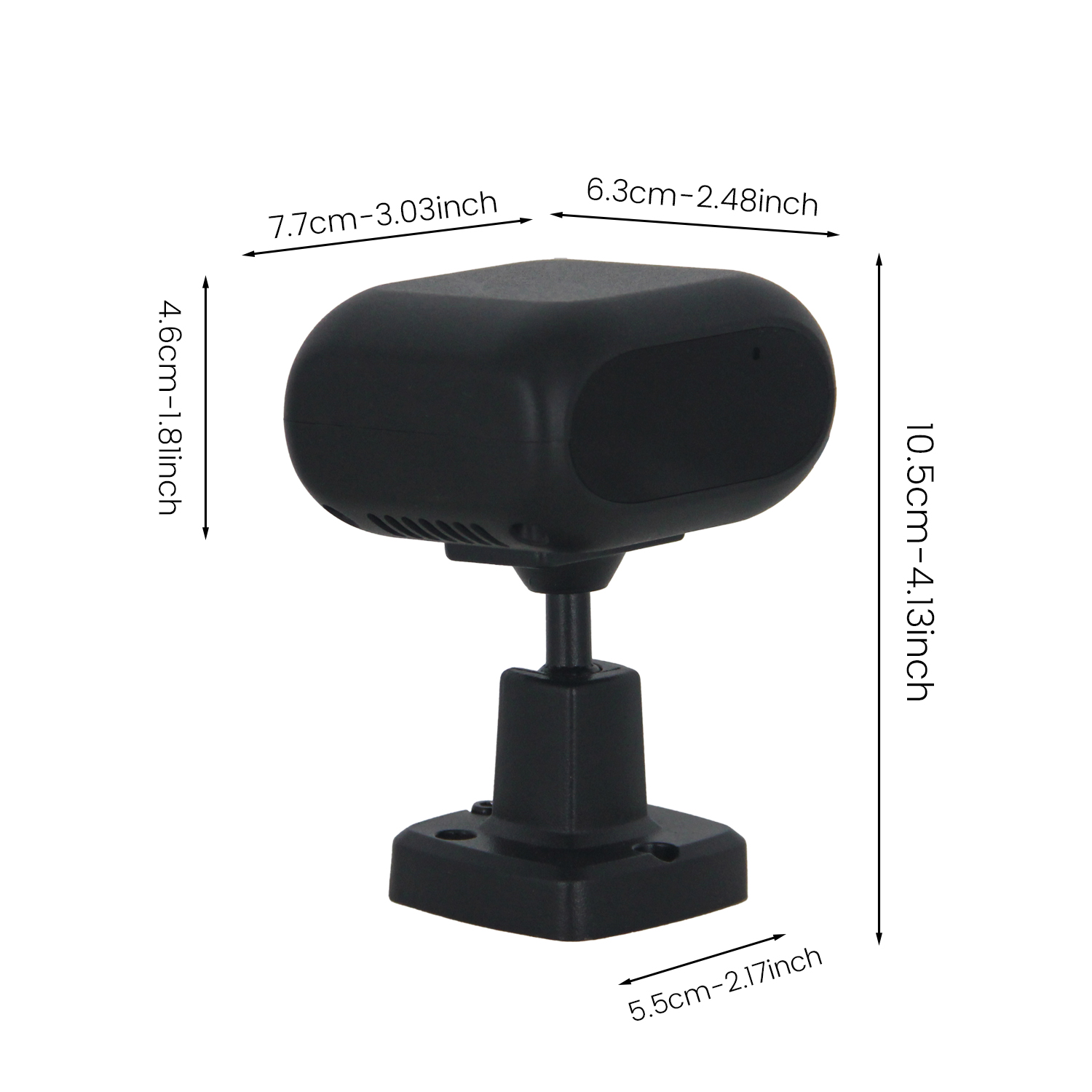

| Net weight | 110g (without cable) |
