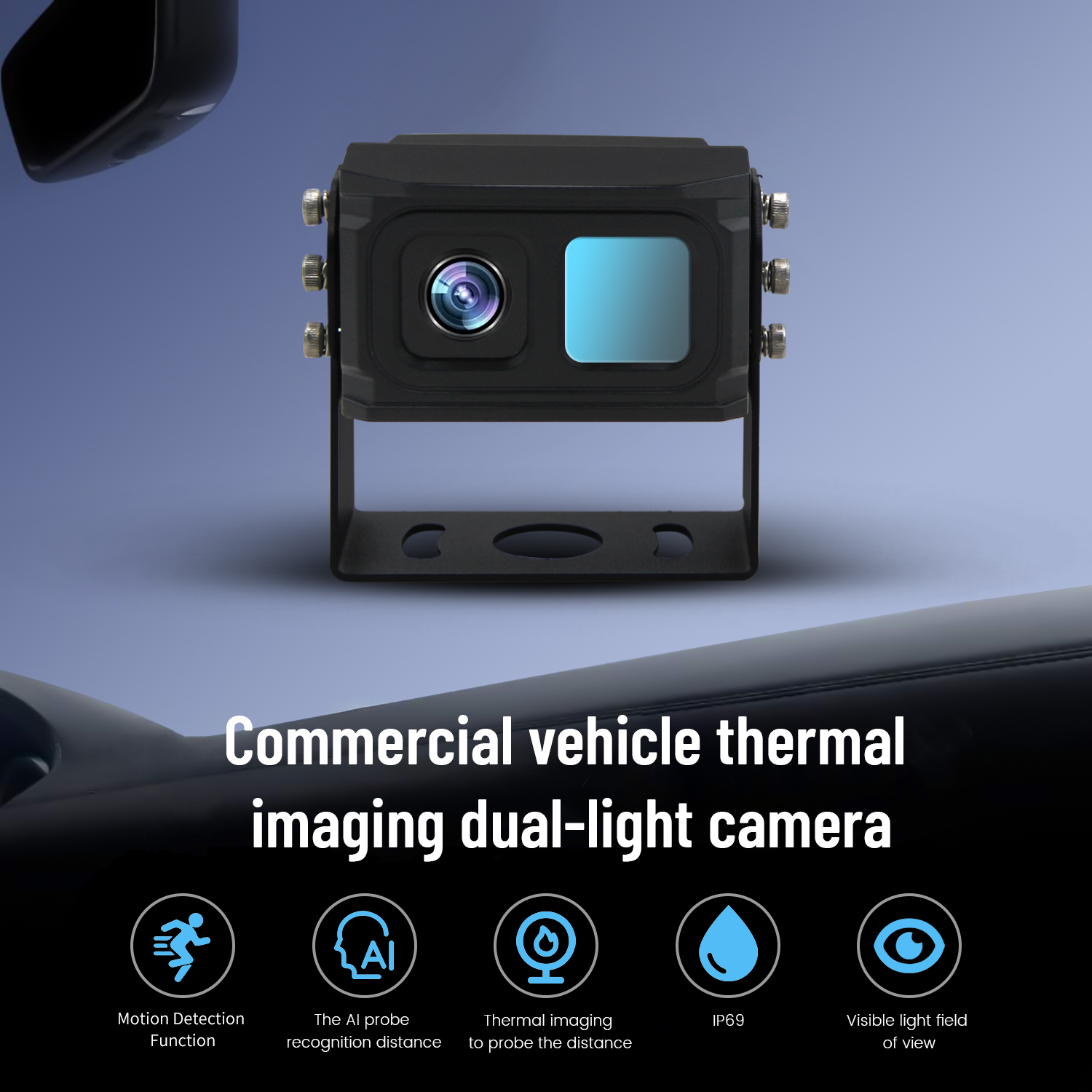

Characteristics of thermal imaging: The principle of thermal imaging is to form an image through the temperature difference on the surface of an object without relying on the light source, so it has strong anti-glare, lightless imaging, and the ability to penetrate smoke and haze, and penetrate high-speed fog.

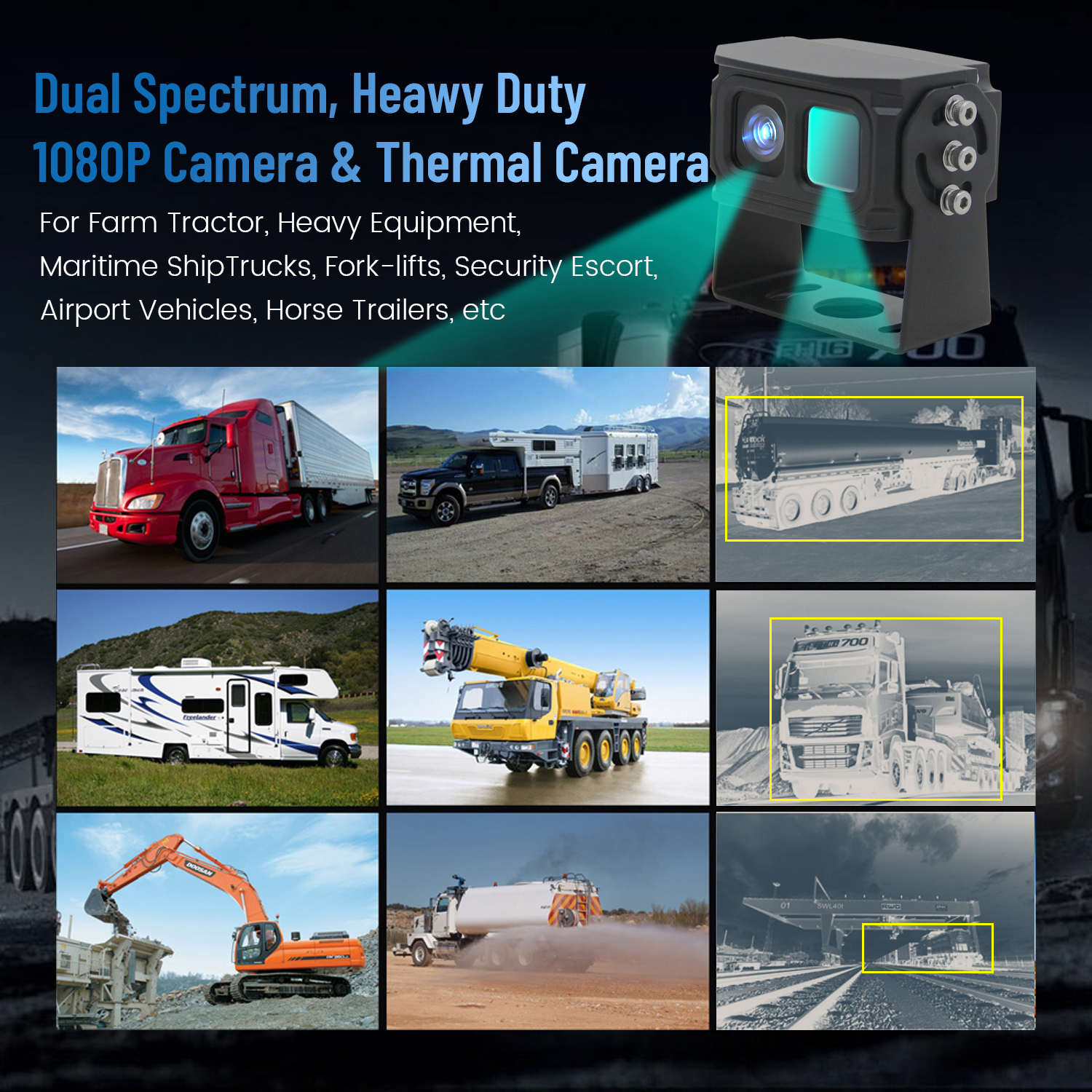

Truck-mounted thermal camera is widely used in construction machinery, agricultural machinery, camping RVs, yacht sailing, sanitation vehicles, tunnel excavators and other equipment.

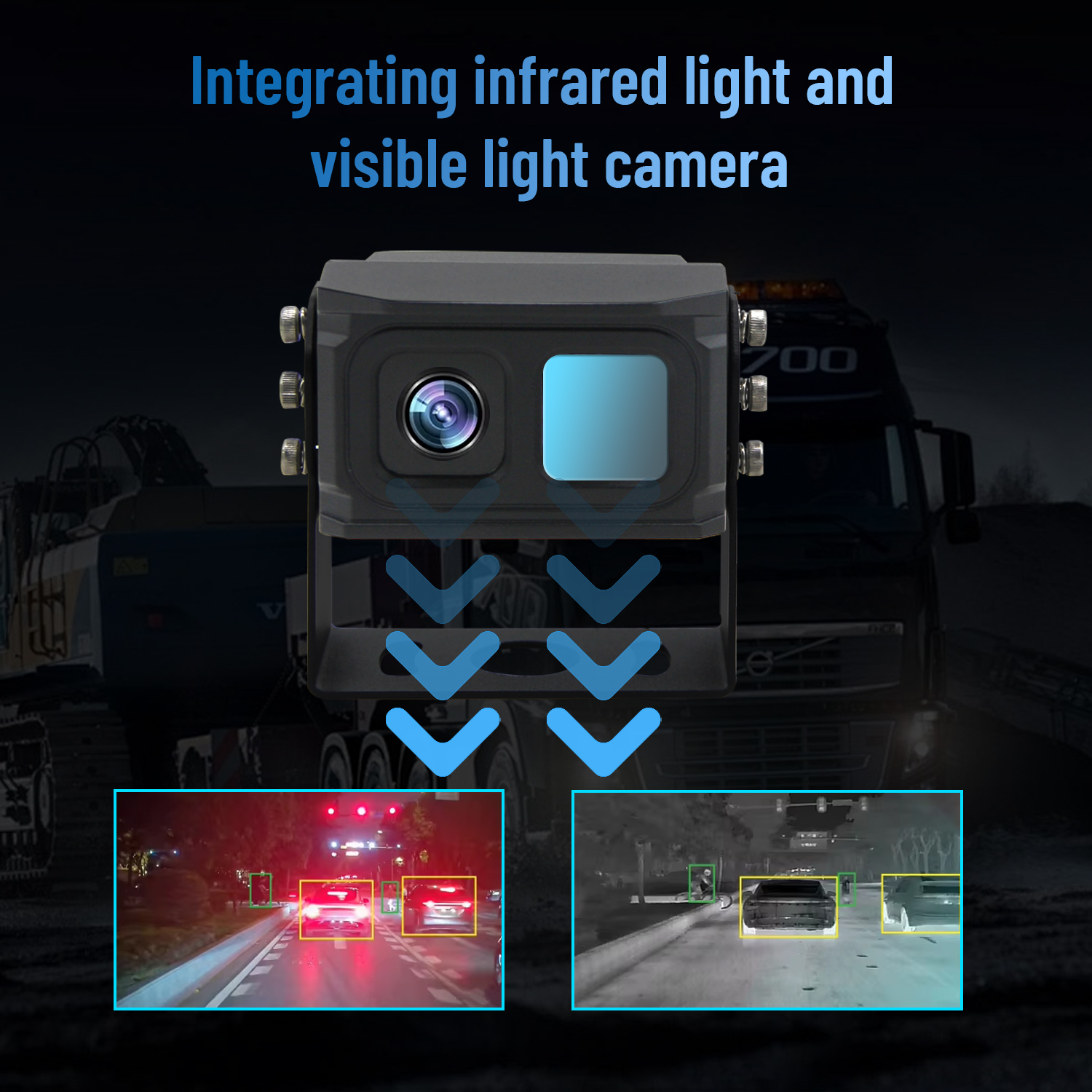

【Dual Spectrum Integration】Integrating infrared light and visible light camera, it can display visible light and infrared light images at the same time, more suitable for all-weather road conditions.

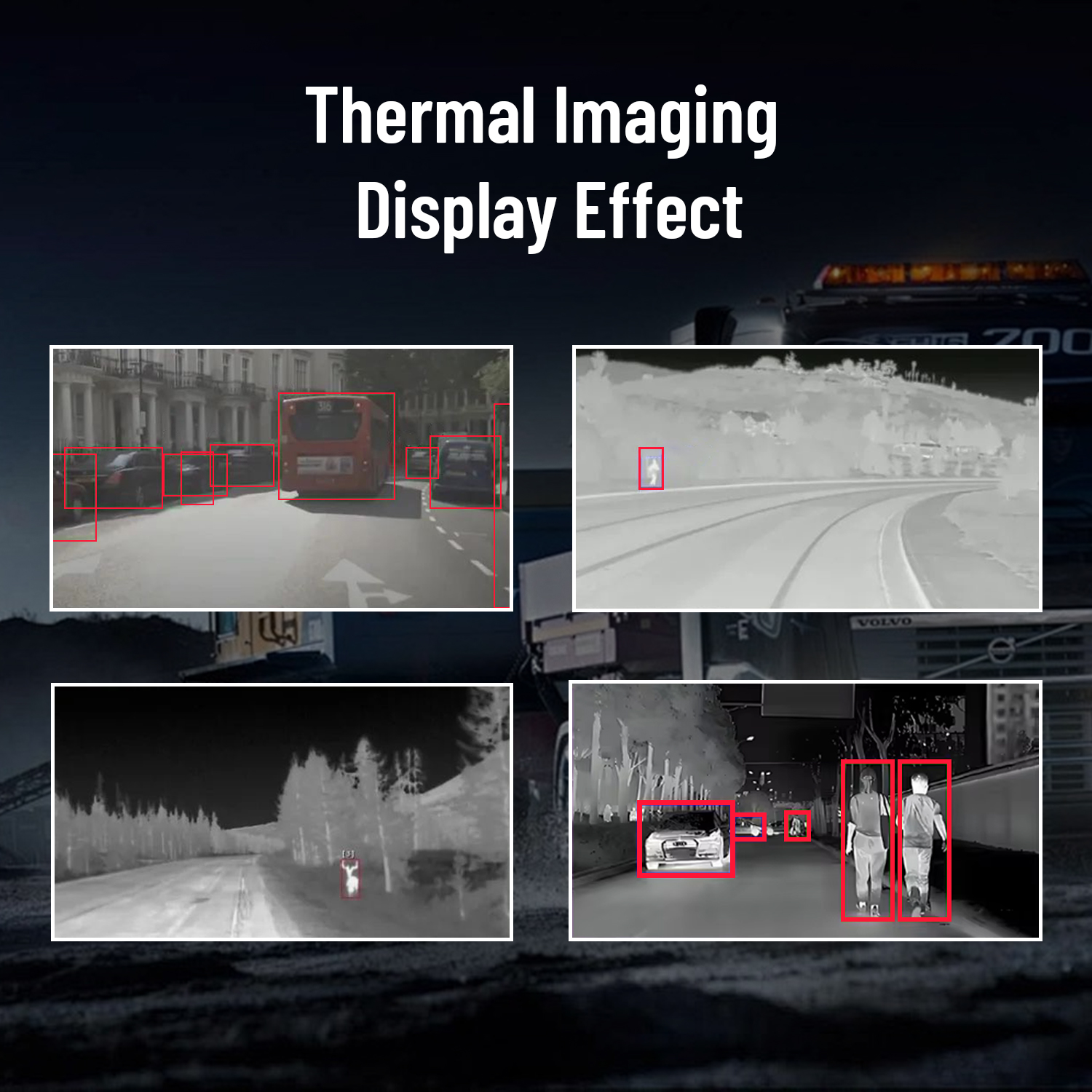

【Infrared Clear Imaging】Infrared light resolution up to 384*288 makes it see farther and clearer in the dark.
【Pedestrian & Vehicle & Non-motorized Vehicle Detection】Built-in AI algorithm can identify pedestrians, vehicles and non-motorized vehicle such as cyclists, electric bikers, and pedestrians on foot and provide audio warning function; Support customized alarm strategies to meet the needs of customers.
【Waterproof and dust-proof】IP69K waterproof and dust-proof features make it suitable for various application.

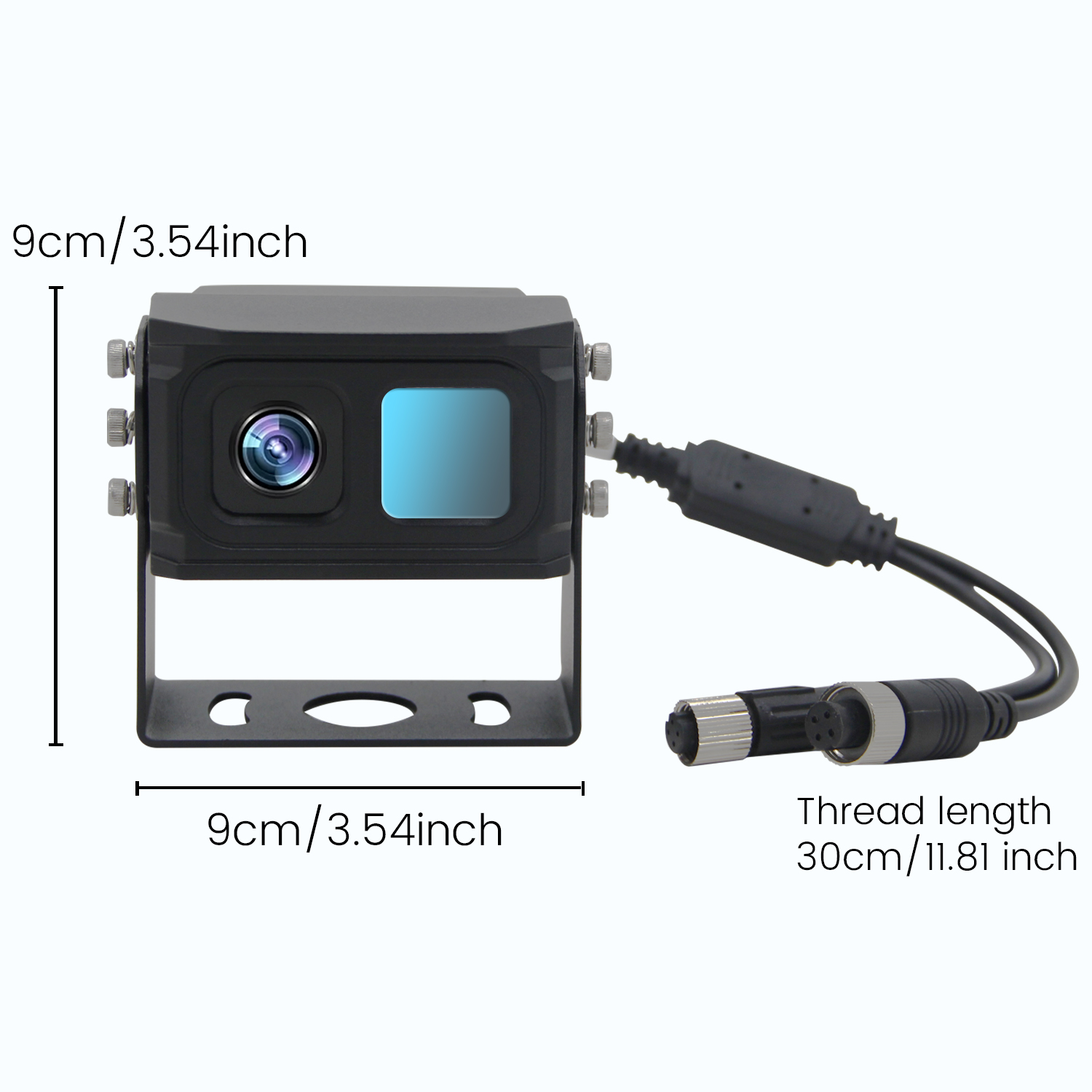

Product Overview
|
1 |
Camera module installation scenario |
The roof of the cab is fixed forward |
|
2 |

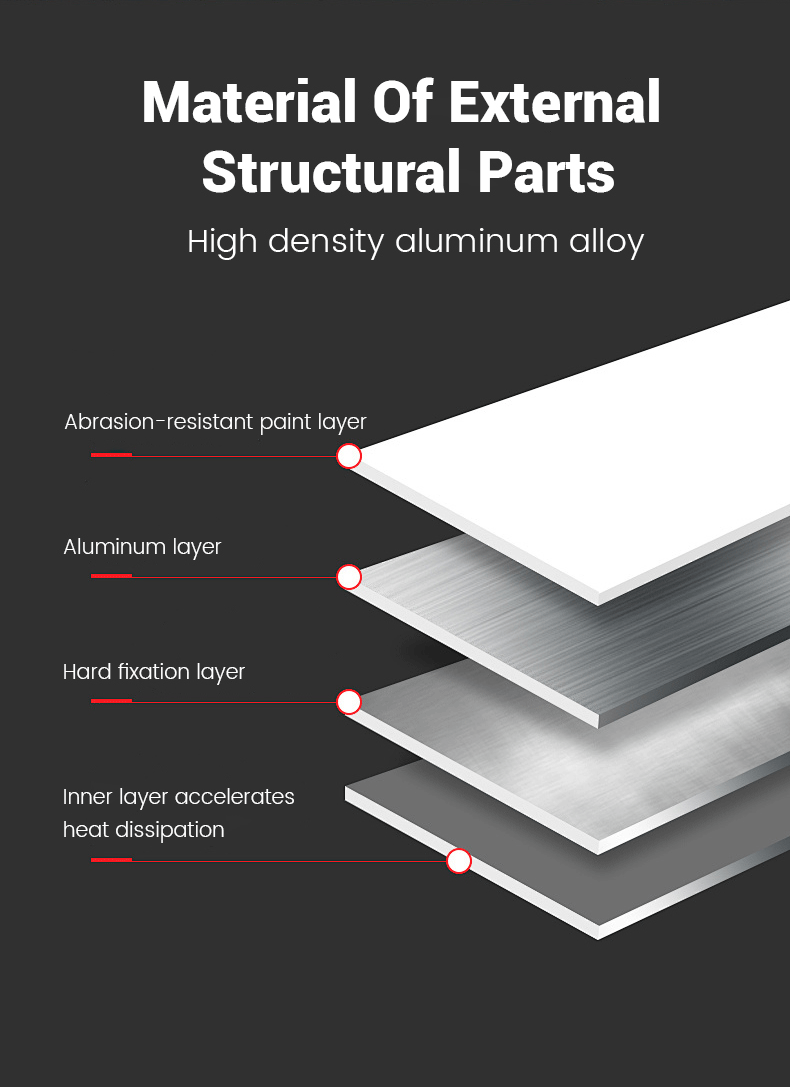

Material of structural structure |
High density aluminum alloy |
|
3 |
Module weight |
300g(N.W)/350g(G.W.) |
|
4 |
working voltage |
DC12V±10% |
|
5 |
working current |
≤300mA@12V |
|
6 |
rated dissipation |
≤3.5W@12V |
|
7 |

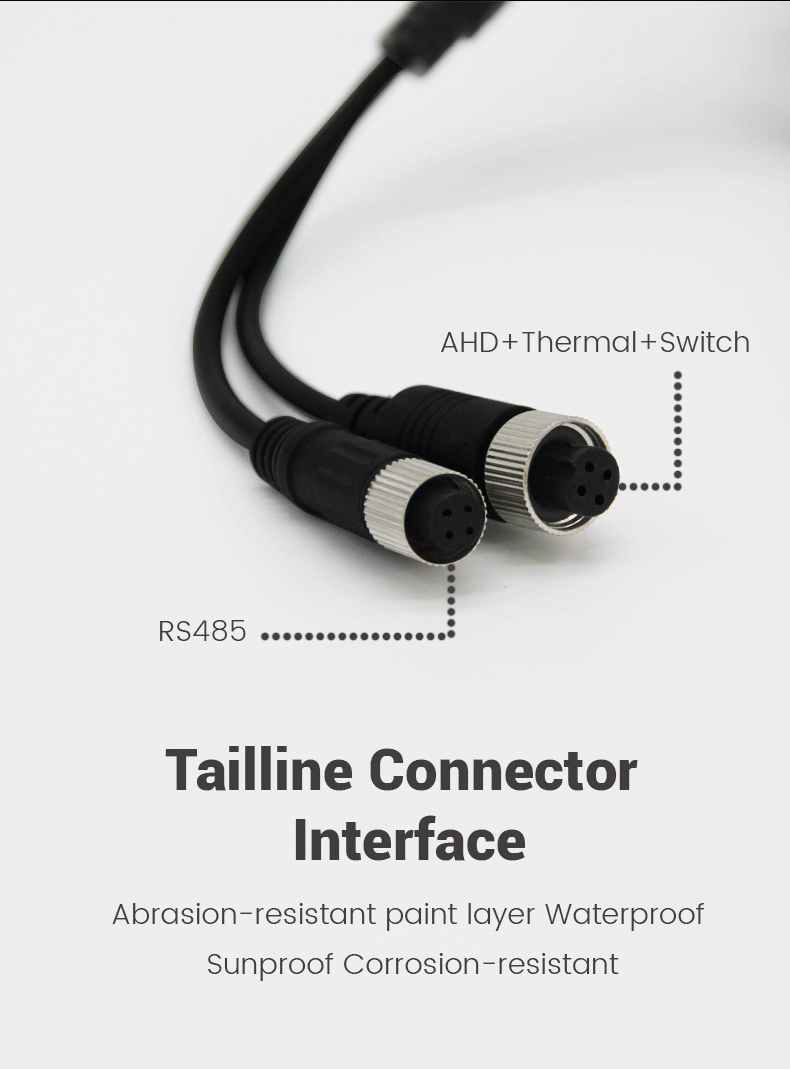

Taiilline connector interface |
4 PIN video General Waterproof head + 4 PIN communication Waterproof head |
|
8 |
Tailline length |
L=0.5M |
|
9 |
SOC-AI master architecture |
The RISC-V high-performance instruction-set architecture |
|
10 |
Thermal imaging sensor chip |
High-performance vanadium oxide uncooled infrared detector |
|
11 |
Thermal imaging imaging mode |
White hot mode * Opmultiple multiple color modes * |
|
12 |
Thermal imaging of the pixel spacing |
@12μm WLP |
|
13 |
The thermal imaging response frequency band |
8 ～14μm |
|
14 |
Thermal imaging probe lens |
4.3mm/7.0mm, Fixed focus: 5M-infinity |
|
15 |

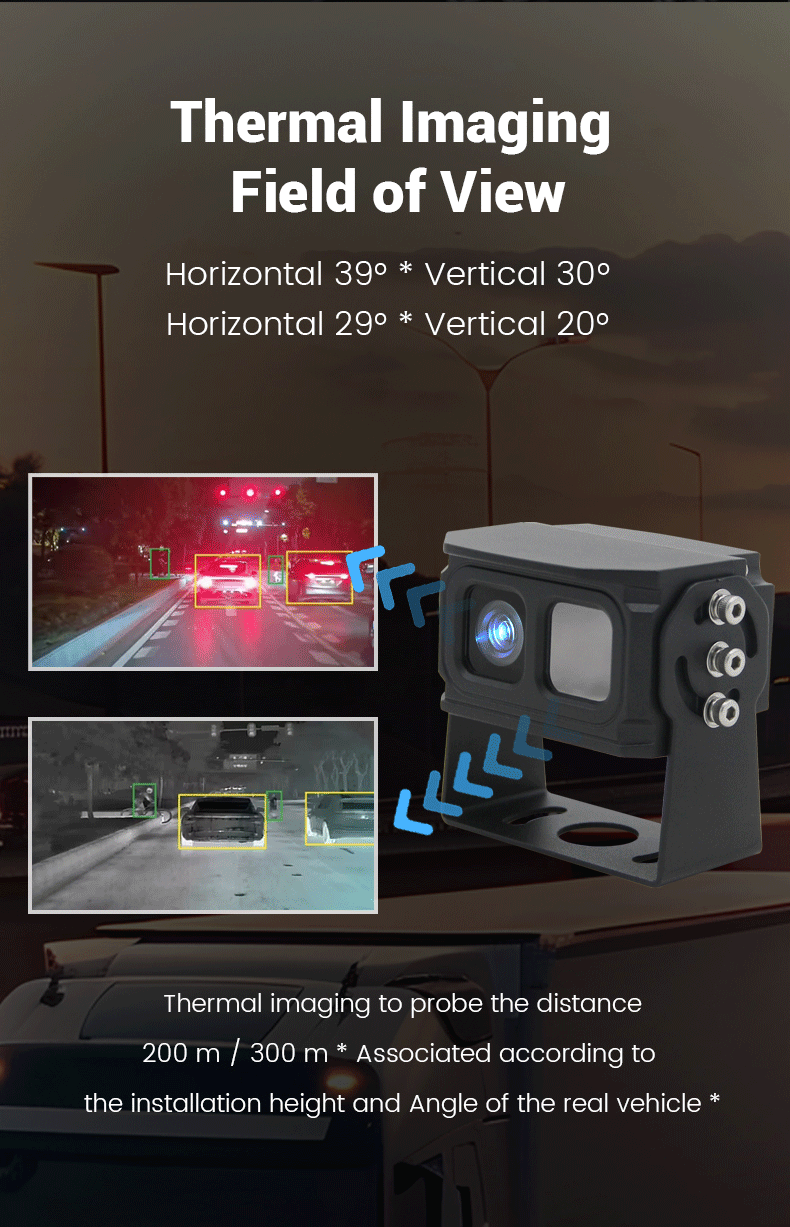

Thermal imaging V angle |
Horizontal 39° * vertical 30° / horizontal 29° * vertical 20° |
|
16 |
Thermal imaging to probe the distance |
200 m / 300 m * Associated according to the installation height and Angle of the real vehicle * |
|
17 |

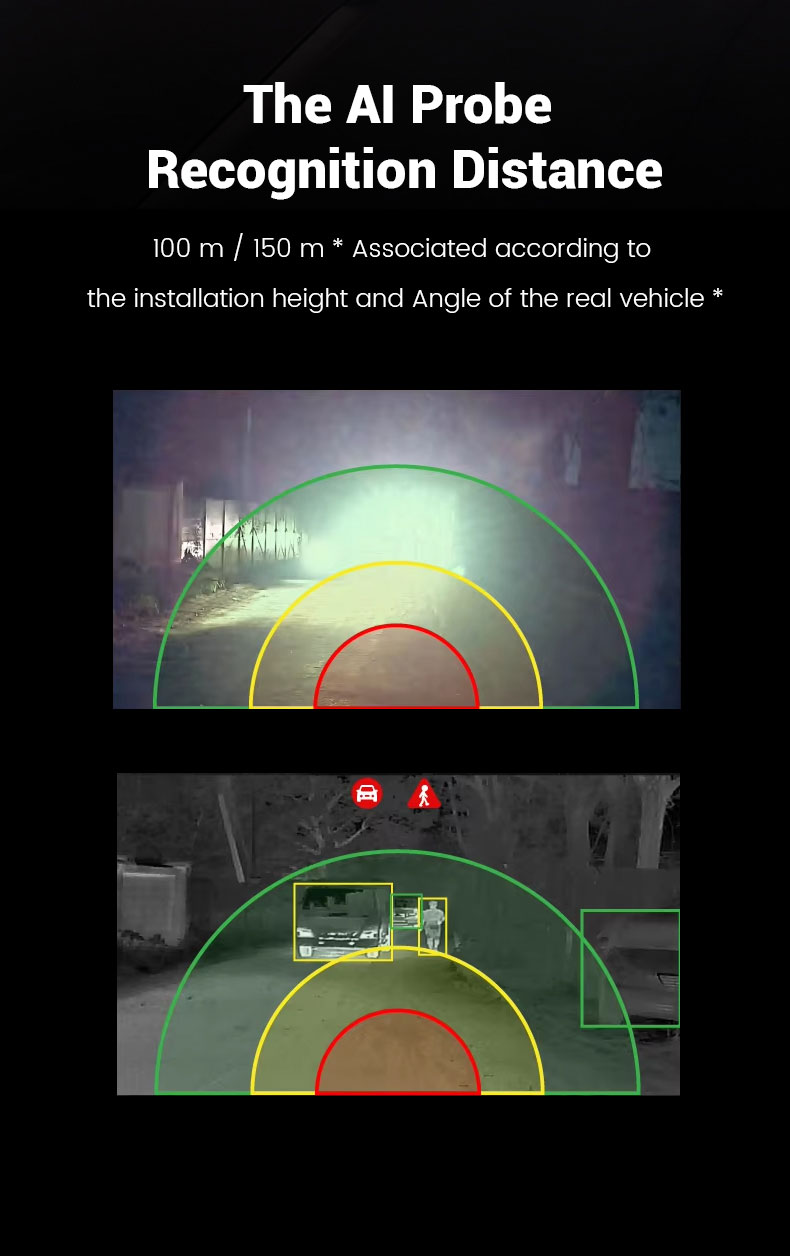

The AI probe recognition distance |
100 m / 150 m * Associated according to the installation height and Angle of the real vehicle * |
|
18 |
Visible light sensor chip |
GC2053 |
|
19 |
Visible light field of view angle |
Horizontal 110° * diagonal 130° * vertical 70° |
|
20 |
Video output |
Thermal imaging, visible light double spell picture |
|
21 |
Video output format |
AHD |
|
22 |
Video resolution |
|
|
23 |
Connector IP level |
IP68 |
|
24 |
Camera IP level |
IP69K |
|
25 |
Storage temperature |
-30℃~+85℃ |
|
26 |
working temperature |
-30℃~+70℃ |
|
27 |
Working humidity |
20%~80 |
