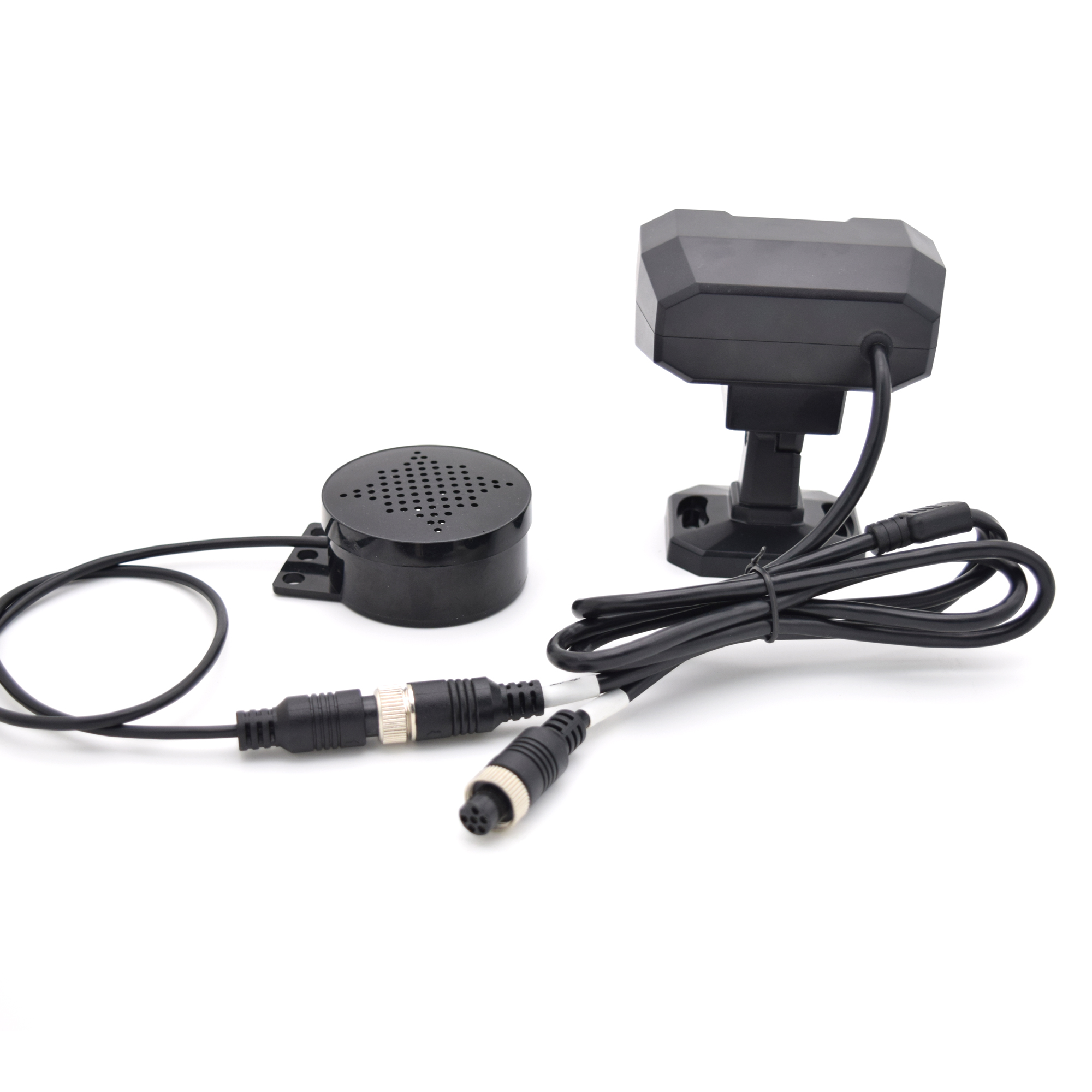

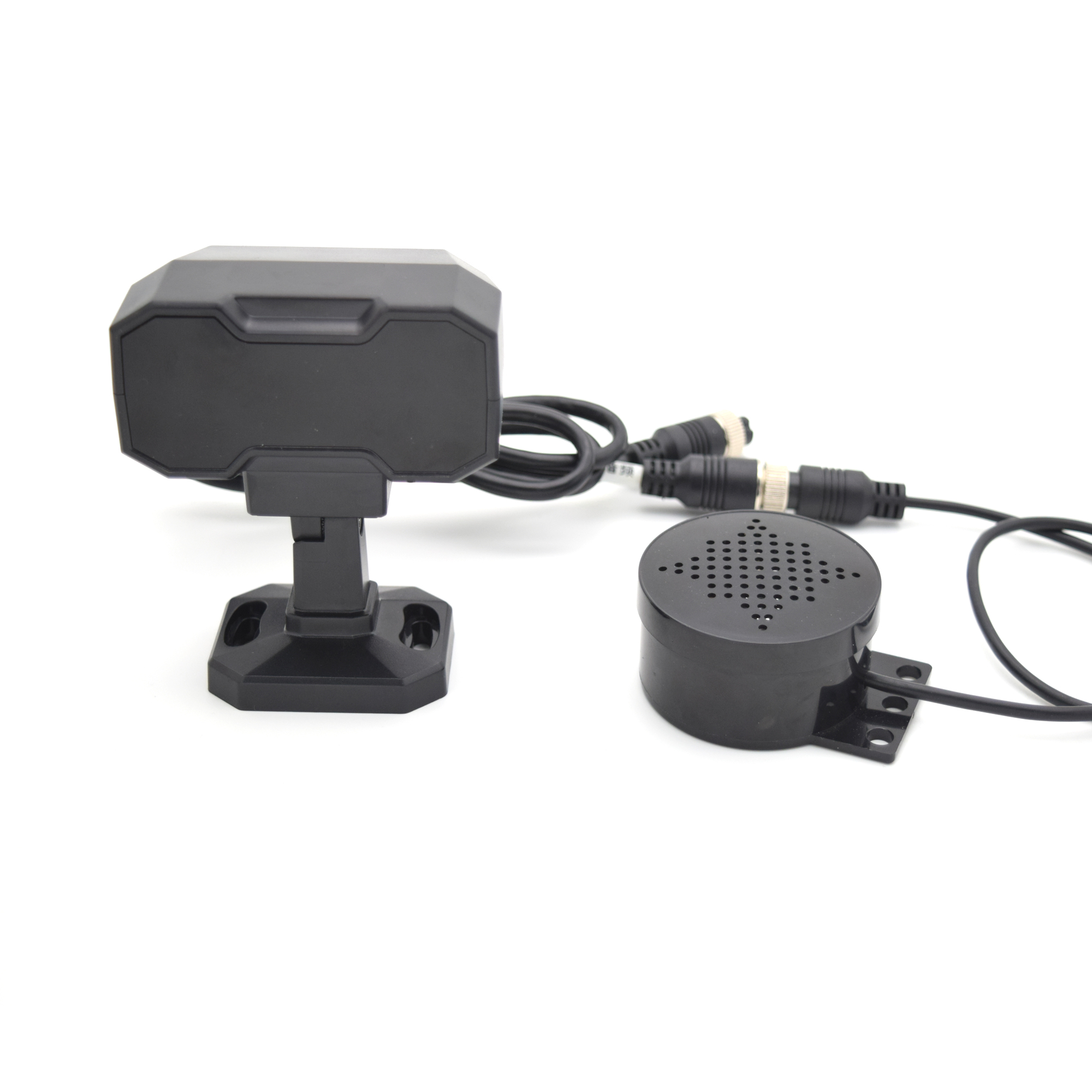

The fatigue driving monitoring system realizes the following functions. When it is detected that the driver is fatigued, yawns, makes a phone call, drinks water, smokes, or is inattentive, it will give a voice prompt to the driver. At the same time, it outputs 5V high level through the IO interface, and the serial port outputs the alarm result command, which can be connected to the car video recorder or other equipment.
Specifications
Project |
Model |
VD-AI-DSM01 |
System |
CPU |
ARM Cortex A7 |
NPU |
0.6 TOPs |
|
Sensor |
1/3” CMOS AHD 720P |
|
Parameter |
Frame number |
30fps |
Video format |
PAL |
|
Effective resolution |
1080(H)X 720(V) |
|
Effective Pixels |
1.0 M pixels |
|
Vertical sync frequency |
50Hz / 60Hz |
|
Minimum illumination |
Color:0.05Lux/F1.2 |
|
Video output |
1.0vp-p, 75Ω |
|
AGC |
Auto |
|
Sound-to-noise ratio |
Greater than 50dB |
|
White balance |
Auto |
|
BLC |
Auto |
|
Lens |
2.8mm F = 2.0 |
|
Lens effective angle |
100° |
|
Effect |
Starlight night vision |
|
Audio |
None |
|
Algorithm |
Built-in algorithm |
Fatigue Detection (DSM) Algorithm |
Interface |
Alarm interface |
1 channel IO alarm output (5V) |
Serial port |
RS485 |
|
Video interface |
AHD signal |
|
GPS module interface |
External GPS positioning |
|
Speaker interface |
In-car horn prompt interface |
|
Power |
Current |
200mA±10% |
Power |
DC 12V voltage (±10%) |
|
Other |
Protection class |
Not waterproof |
Operating temperature |
-40°C~70°C , RH95% MAX |
|
Storage temperature |
-30°C~80°C,RH95% MAX |
|
Size |
63mm*50.5mm*104mm |
