Product Description

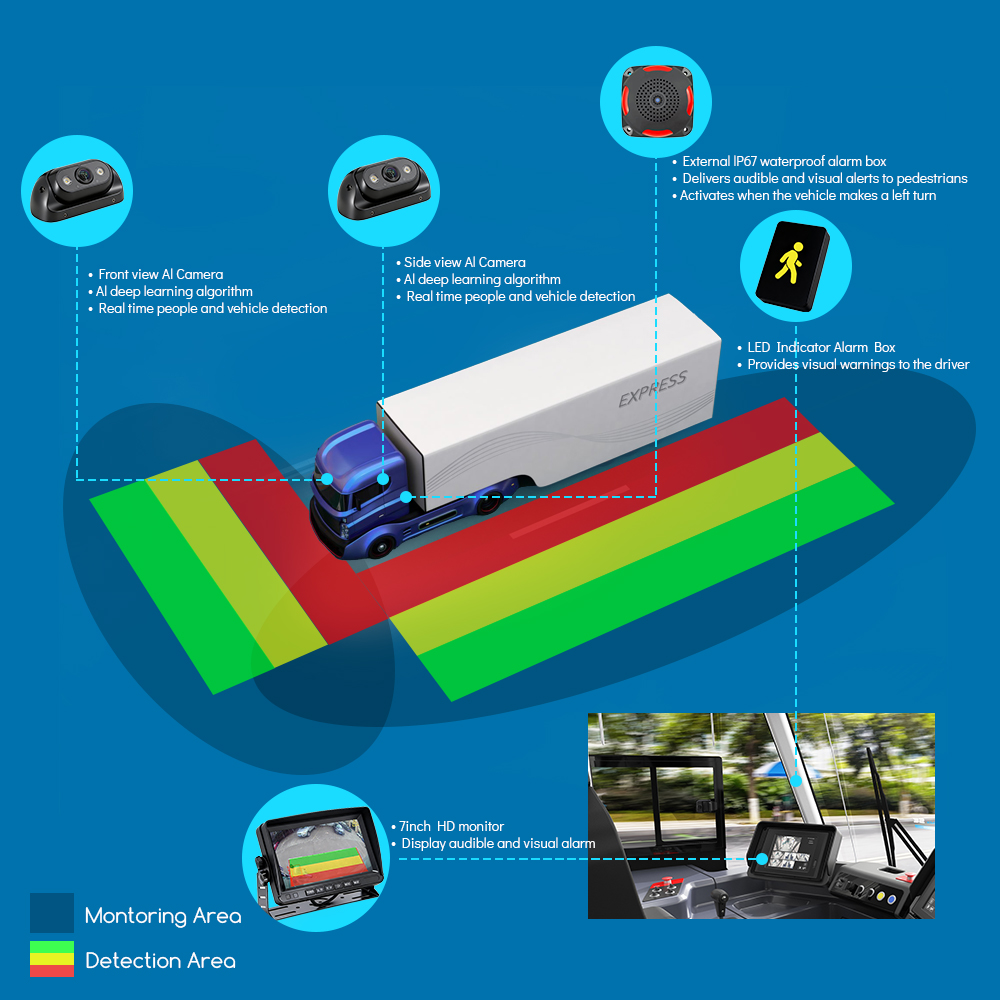

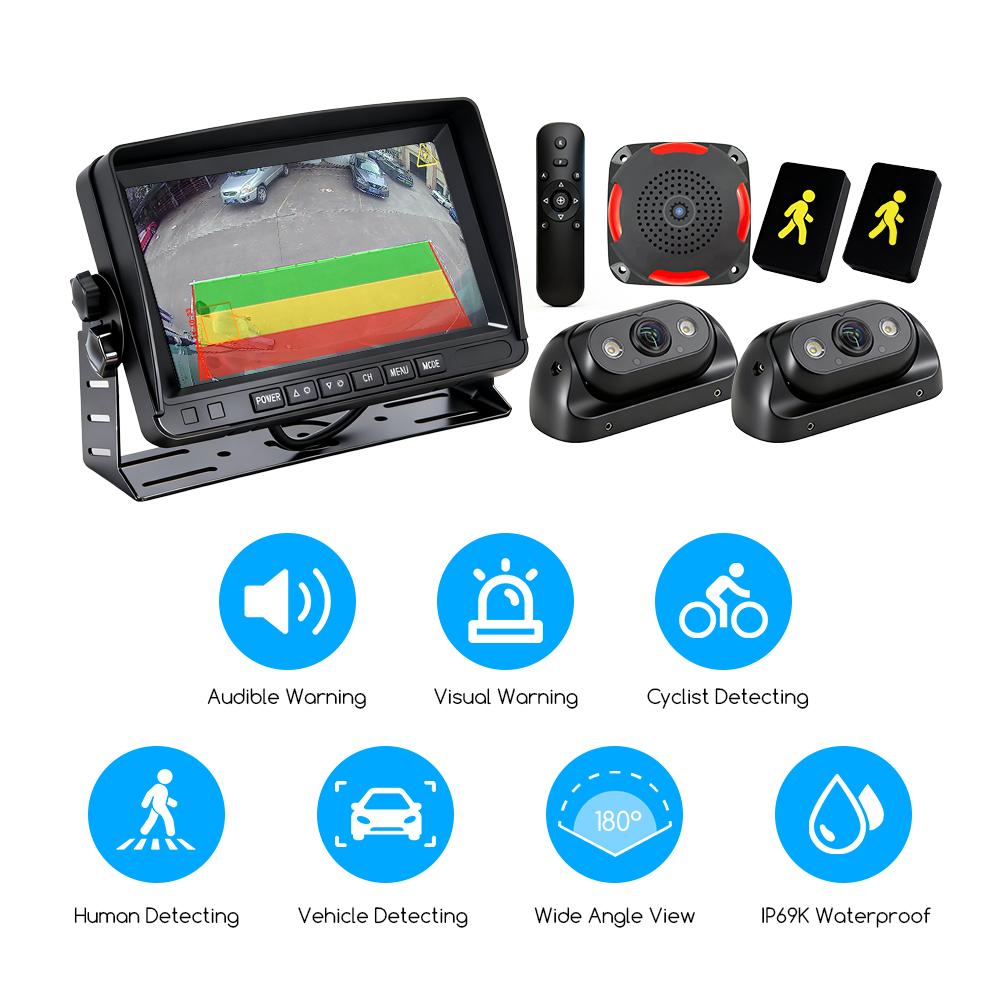

Vehicledigital Moving Off Information System (MOIS) & Blind Spot Information System (BSIS), the intelligent AI-based driving assistance system specifically design to improve truck and bus driving safely on the road.
MOIS meets the demanding standards of UN ECE R159, containing a 7inch monitor and a AI front camera, and helps to warn the driver of possible collisions with pedestrians and cyclists in close-proximity to the front of the vehicle.

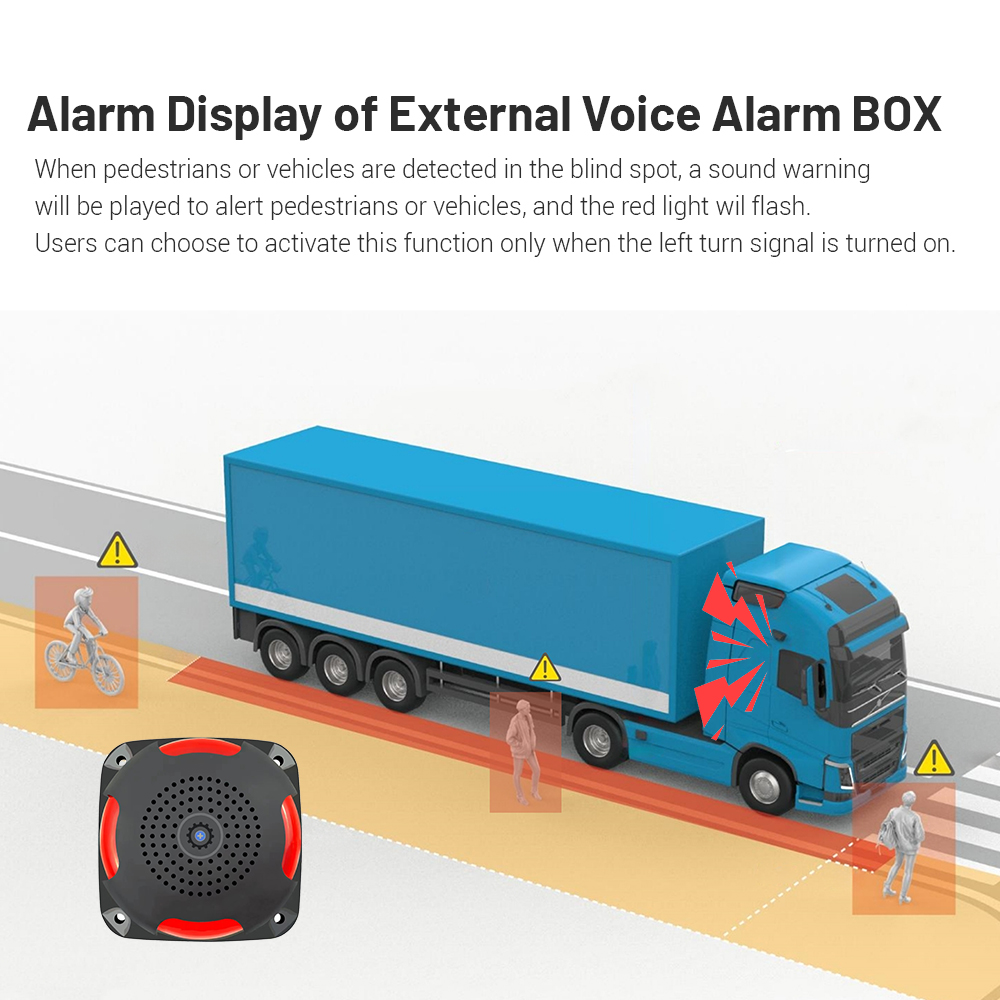

BSIS meets the standards of UN ECE R151, containing a LED sound and light alarm box, an AI side camera, an external sound and light alarm box, and helps to warn the driver of possible collisions with Vulnerable Road Users (VRUs) including pedestrians and cyclists in the near side of the vehicle.
7-inch In-Car Display (Model: VD-7019FH)
| Display Size | 7″ Digital Screen TFT LcD Monitor with Removable Sun Visor |
| Color System: | PAL/NTSC |
| Display Resolution | 1024*600P |
| Wide view angle(CR>10): | (up/ down):50/70 (left/right): 70/70 |
| Brightness (cd/m2) | 400 |
| Contrast ratio | 400:1 |
| Operating temperature: | -20’C to +70°C |
| Storage temperature | -30’C to +80°C |
| Free operating Voltage | DC10~32V |
| External dimensions | (LxW xT)(234 x158 x81mm) with mounting Sun Visor |
| Weight Approx | 479g |
| lmage Type | 1/3 inch Color CMos |
| Horizontal Resolution | 700TV Lines |
| Effective pixel: | 976(H)X596(V) |
| Usable lllumination | 0Lux ( Built in 18pcs IR LED’s for Picture Support in the Dark) |
| Free viewing angle | -120° |
| Free Operating Voltage | DC10-32 Volts |
1080P HD Camera(VD-RC997)
| lmga Sensor | 1080P/720P |
| Resolution | 1080P |
| Effective Pixels | 1920(H) X1080(V) |
| Visible Angle | 180° |
| Shell Material | lron anti-collision design |
| Waterproof Grade | IP69K |
| Operating Voltage | DC12V |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +75℃ |
| Anti-vibration Grade | 5G(meets GB/T 2423.56-2023 standard ) |
| Outer Dimension | 11(w)*7(h)*7(d)cm |
