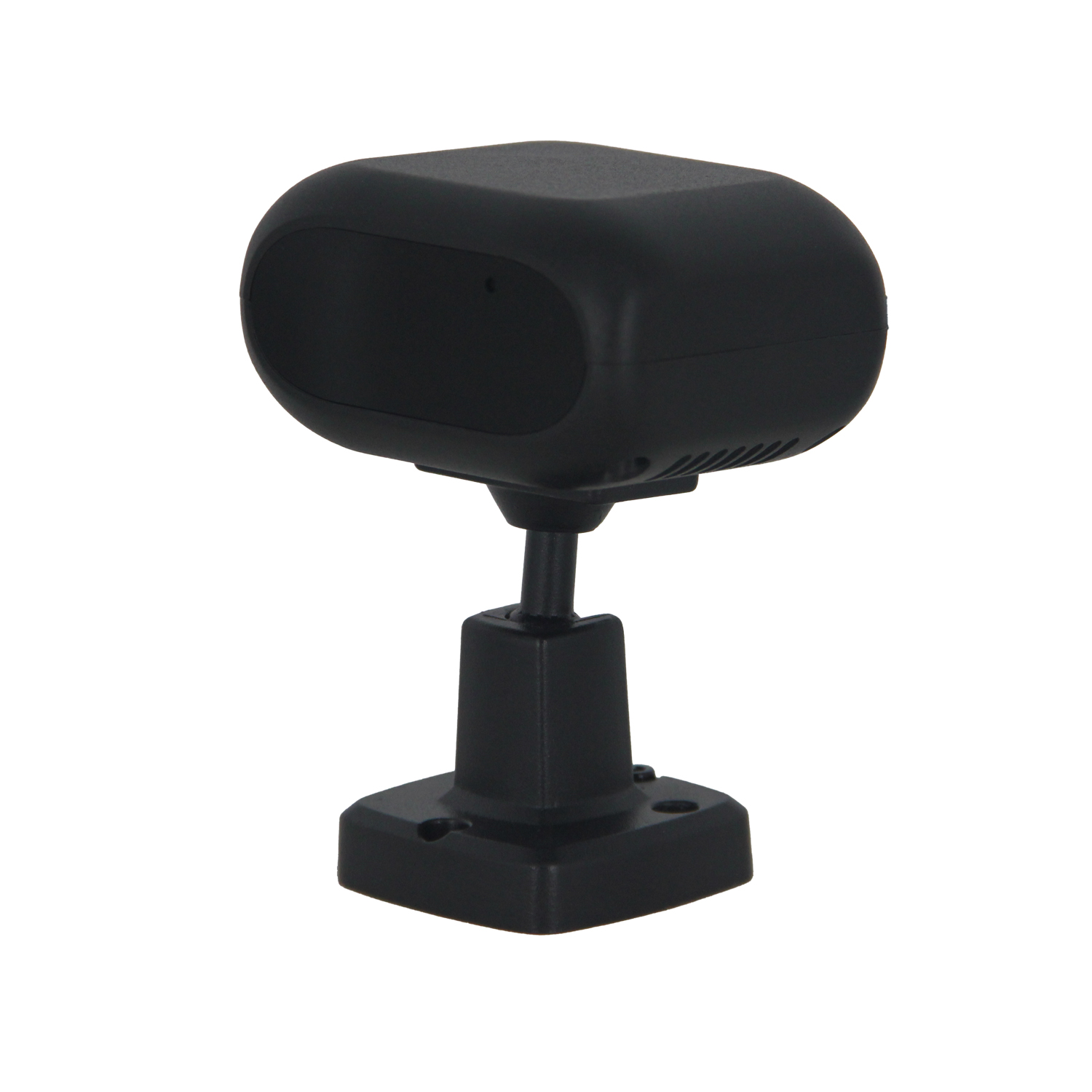

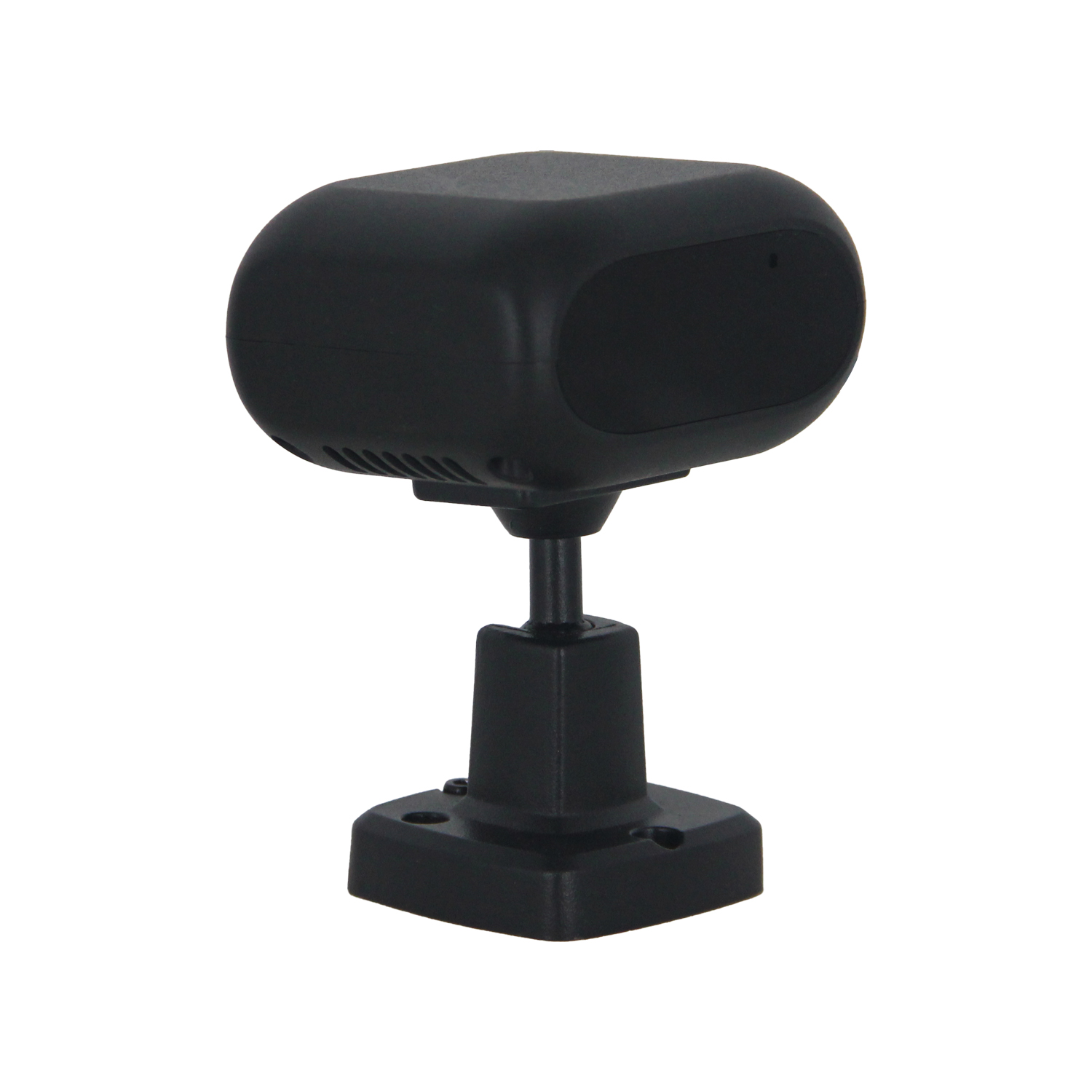

DMS Camera with Night Vision ADAS & AI Fatigue Detection for Commercial Vehicles Fleet Driver Safety Monitoring System

Core Technology Highlights

•Triple-Layer Safety Defense

AI Fatigue Detection: Real-time analysis of driver’s eye closure/blink rate (PERCLOS) & yawning frequency with >98% accuracy

Night Vision Optimization: 850nm IR LEDs + STARVIS™ CMOS sensor for clear monitoring in 0.1-5 lux darkness

Critical Value for Fleets

• Proactive Risk Control

♦ Reduce 43%* fatigue-related accidents (*Based on 2023 EU fleet trial data)

♦ Generate driver behavior scoring reports via cloud platform (4G/WiFi connectivity)

♦ Instant alarm triggers: Voice/Seat vibration/HUD warning multi-channel alerts

Specifications:

Product model:	VD-DMS902
imaging device	1/2.9″CMOS AHD (GC2053)
standard	NTSC
Effective Resolution	1920(H)X1080(V)
Effective Pixel	1080P
Vertical Synchronization Frequency	50Hz / 60Hz
Minimum Illumination	0.1Lux/F1.2
Video Output	1.0vp-p, 75Ω
Gamma Coefficient	0.45
AGC	automation
sound-to-noise ratio	Greater than 48dB
White balance	automation
Backlight Compensation	automation
Lens	3.6mm F = 2.0
Horizontal Angle	80°
Effective diagonal	90°
Infrared lamp effective distance	1m
Current	12V/140mA±10% (when IR light is on)
Voltage	DC5-16V
Working Temperature	-20°C~70°C , RH95% MAX
Storage temperature	-30°C~80°C,RH95% MAX
Net weight	110g (without cable)
