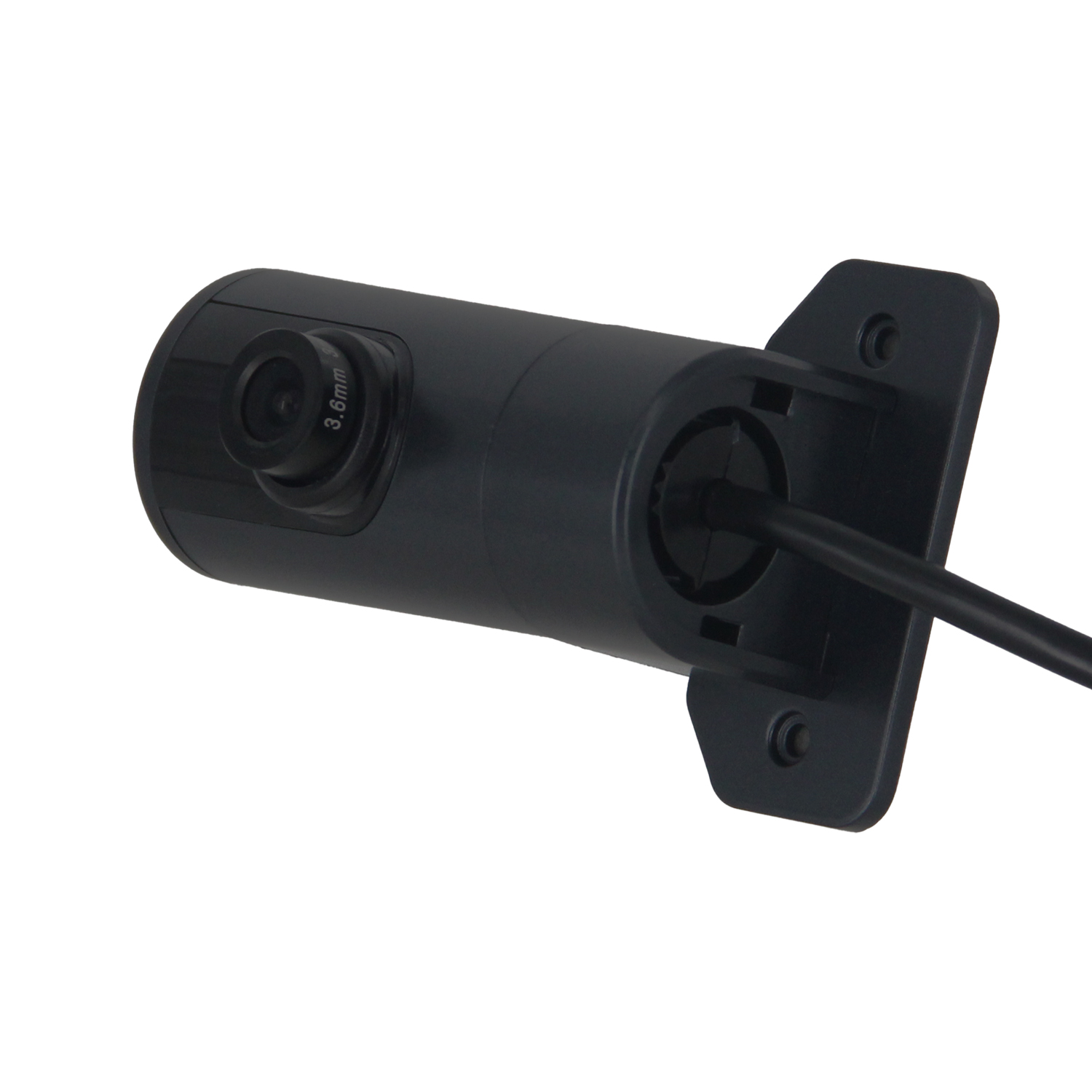

[HD 1080P] Single DMS Driver Monitoring Camera with Night Vision Fatigue Driving Warning For Taxi Internet Taxi Commercial Vehicle Safety System
Advanced 1080P DMS Driver Monitoring Camera for Enhanced Fleet Safety
This single-channel DMS camera revolutionizes driver safety with AI-powered fatigue detection and high-definition 1080P night vision, specifically engineered for taxis, ride-hailing vehicles, and commercial fleets.
Core Features:
• Smart Fatigue & Distraction Alerts: Real-time AI algorithm detects drowsiness, yawning, and phone usage with >95% accuracy
• Crystal-Clear Night Vision: Dual IR LEDs + IR-CUT filter enable 24/7 monitoring

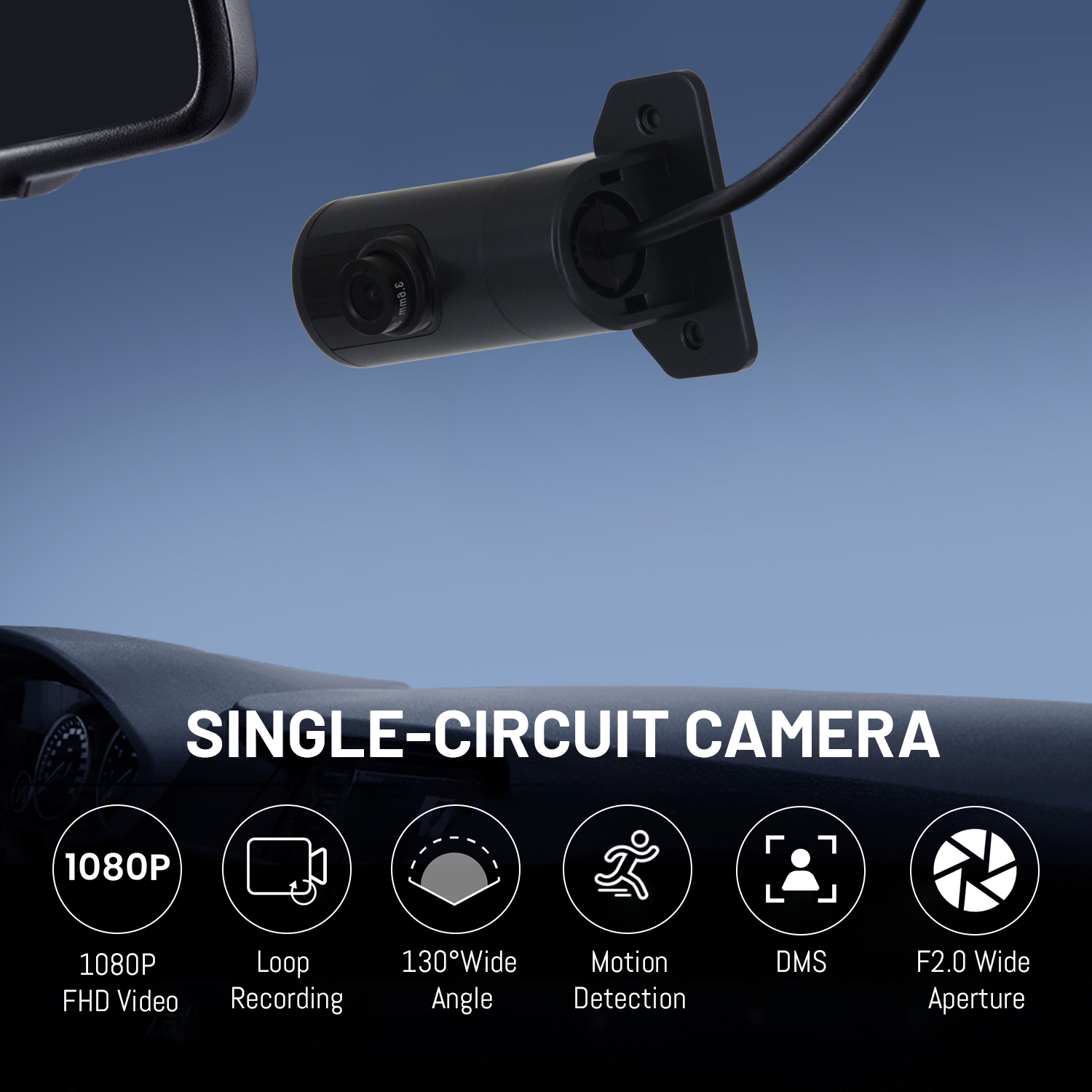

• 130° Wide Angle Lens: Full cabin coverage without blind spots
• Rugged Design: -20℃~70℃ operating range
• Plug-and-Play Installation: Compatible with 12/24V vehicle systems (5-minute setup)
Specifications:
| Product model: | VD-DMS903 |
| imaging device | 1/4 ″CMOS AHD (GC1054+FH8535L) |
| ISP | FH8535L |
| SENSOR | GC1054 |
| standard | PAL / NTSC Default: PAL |
| effective resolution | 1280(H)X720(V)/25 frames |
| Pixle size | 3.0um×3.0um |
| Lens/sensor Aberration angle | <2-3 degrees |
| effective pixel | 100W |
| minimum illumination | 20Lux/F1.2 |
| Vertical synchronization frequency | 50Hz / 60Hz |
| video output | 1.0vp-p, 75 Ω |
| Gamma coefficient | 0.45 |
| AGC | automation |
| sound-to-noise ratio | Greater than 48 dB |
| white balance | automation |
| Backlight Compensation | automation |
| camera lens | 2.1mm F = 2.0 |
| horizontal angle | 115 ° |
| Effective diagonal | 130 ° |
| Infrared lamp effective distance | 2 m |
| Infrared light band | 850nm |
| Current | 130mA±20% (when IR lamp is on) |
| Voltage | DC12V |
| Lead Length | 55CM±10CM |
| Operating Temperature | -20 °C~70 °C , RH95% MAX |
| Storage Temperature | -30 °C~80 °C,RH95% MAX |
