Details

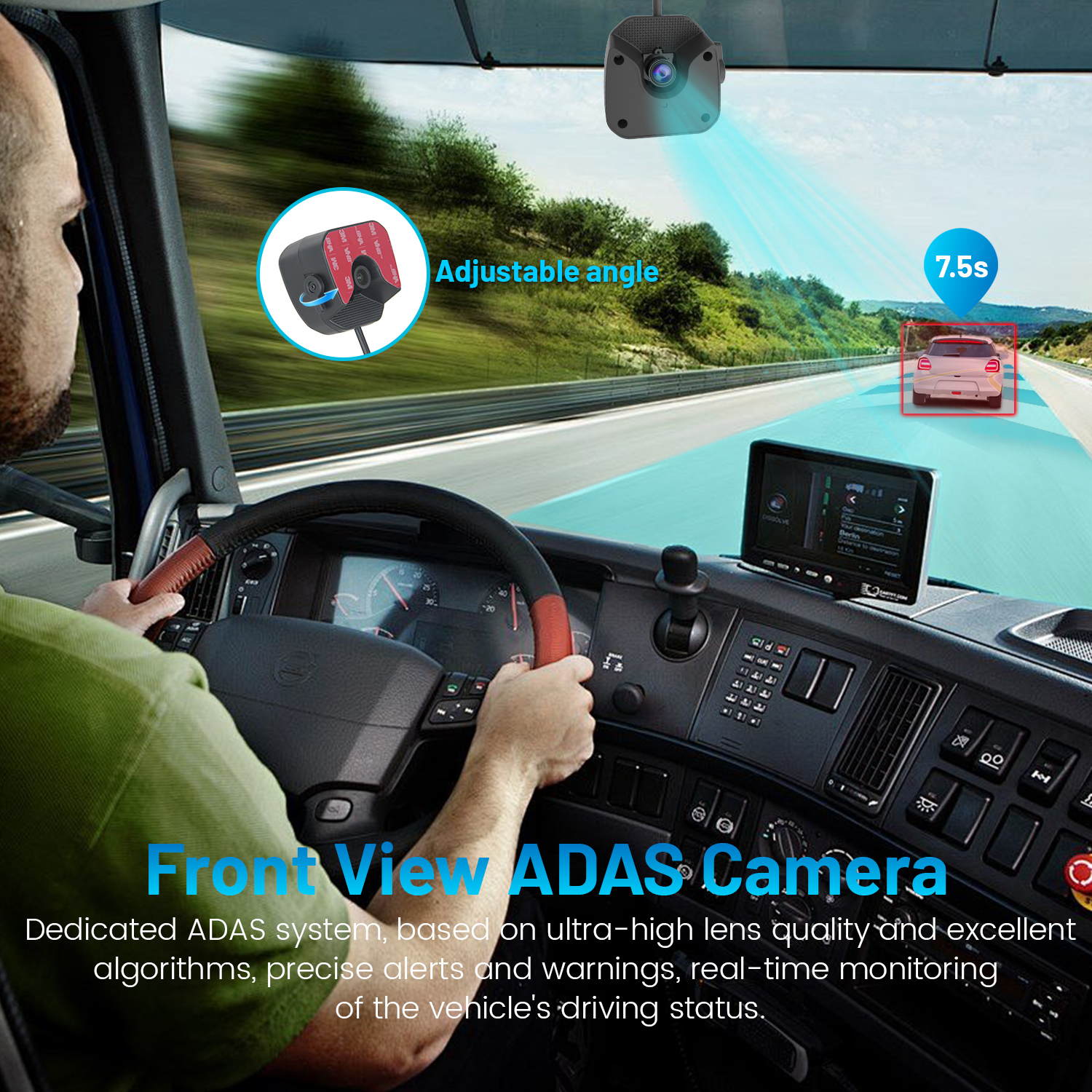

1080P HD Front View ADAS Camera for Car/Truck, Night Vision, Wide Angle, FCC/CE/ISO Certified, Vehicle Safety System
Features:
“Upgrade your driving safety with our 1080P HD Front View ADAS Camera, designed for cars and trucks. Featuring advanced night vision technology and a 150° ultra-wide lens, it captures crystal-clear road details in low-light conditions and minimizes blind spots. Certified by FCC/CE/ISO for reliability, this camera supports lane departure warnings, collision alerts, and parking assistance. Easy to install and compatible with most vehicle systems, it enhances real-time monitoring for safer journeys. Ideal for drivers prioritizing precision and compliance with global safety standards.”
Specifications:
| Product model: | VD-AD907 |
| imaging device | GC1084 1/4.5″CMOS |
| Pixel size | 2.72μm*2.72μm |
| standard | AHD PAL |
| Effective Resolution | 1280(H)X 720(V) |
| Effective Pixel | 100W |
| Vertical synchronization frequency | 50Hz / 60Hz |
| Video Output | 1.0vp-p, 75Ω |
| Gamma Coefficient | 0.45 |
| AGC | automation |
| white balance | automation |
| Backlight Compensation | automation |
| Lens | f=4.0mm |
| horizontal angle | 55° |
| Vertical Angle | 31° |
| Diagonal angle | 70° |
| Current | 45mA±10%(DC12V) |
| Voltage | DC6-16V |
| Operating Temperature | -20°C~70°C , RH95% MAX |
| Storage Temperature | -30°C~80°C,RH95% MAX |
