Product introduction

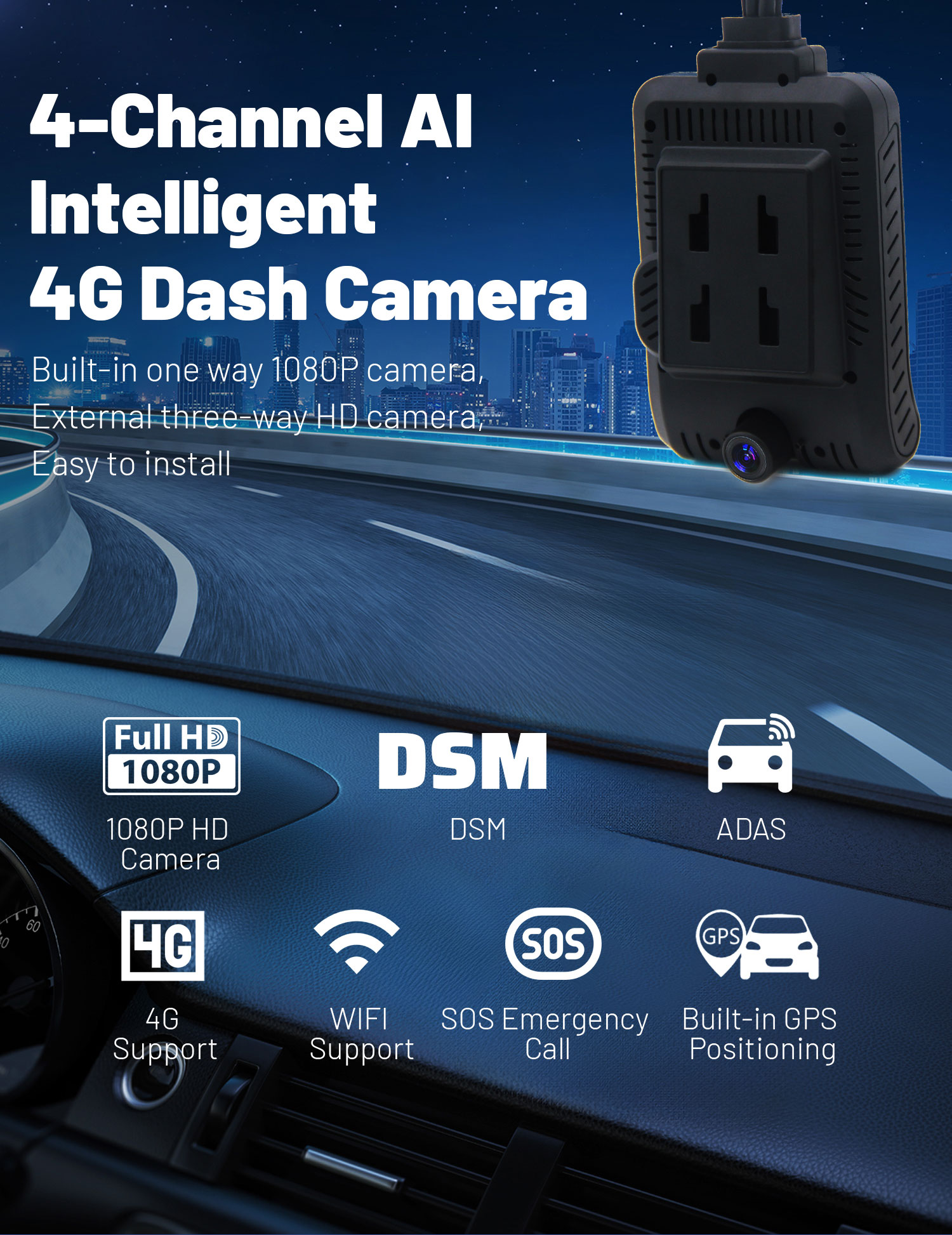

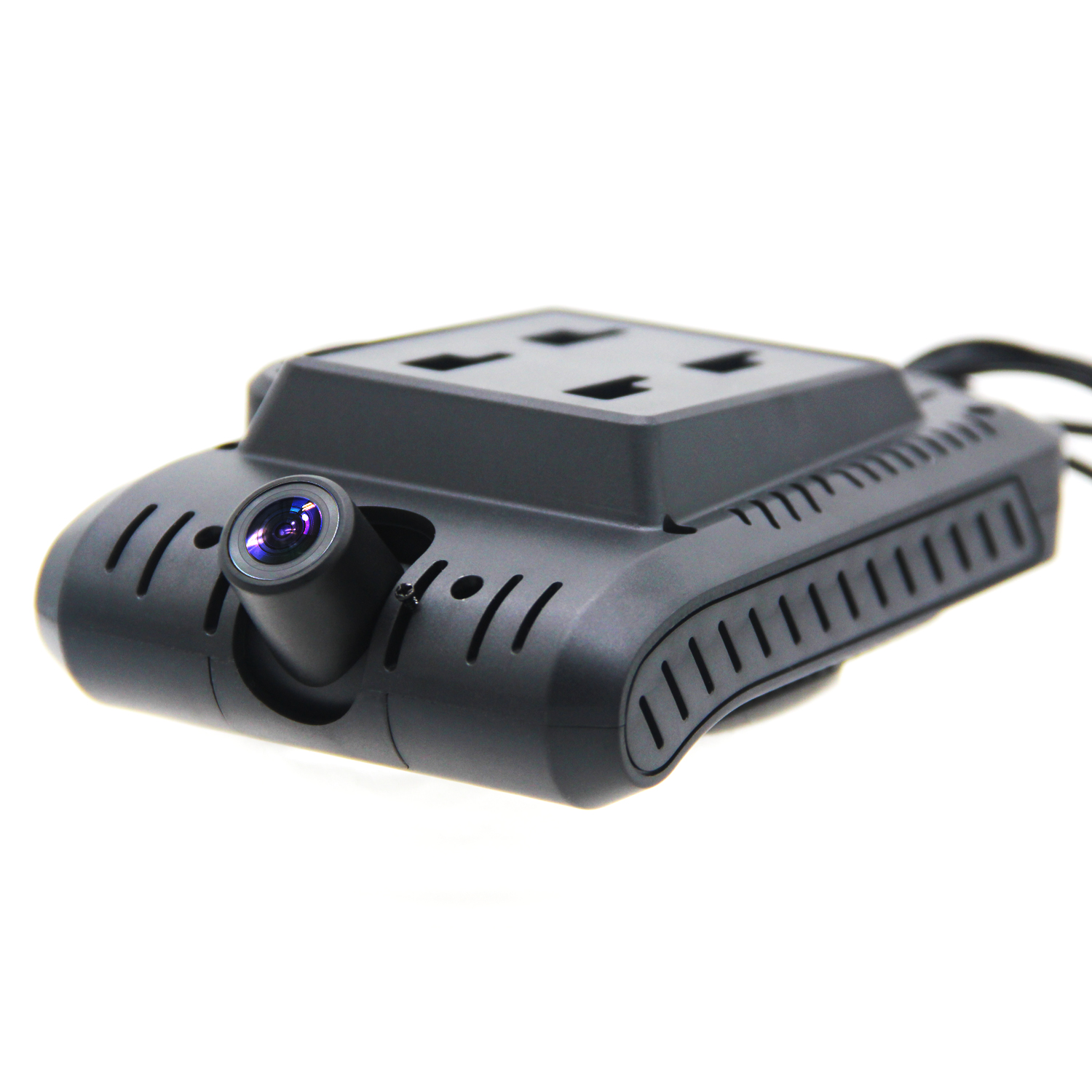

This product is a 4channel AI intelligent 4G dash camera, built-in one channel, external Three Channel HD vehicle DV camera, built-in AI intelligent algorithm, one button emergency alarm, capture, platform intercom, GPS positioning, driving track, WiFi hotspot, 4G and TF card storage in one vehicle networking product.
Product features
▪ 265 & H.264 encoding and decoding,Save storage space and transmission flow；
▪ Support 4-channel 1080p * 15fps / 2-channel 1080p * 30fps, 4-channel 720p, D1 and other codecs;
▪ Built in one 1080p camera and external three HD cameras for easy installation;；
▪ Built in 2CH AI intelligent algorithm, which can support ADAS, DMS and BSD functions；

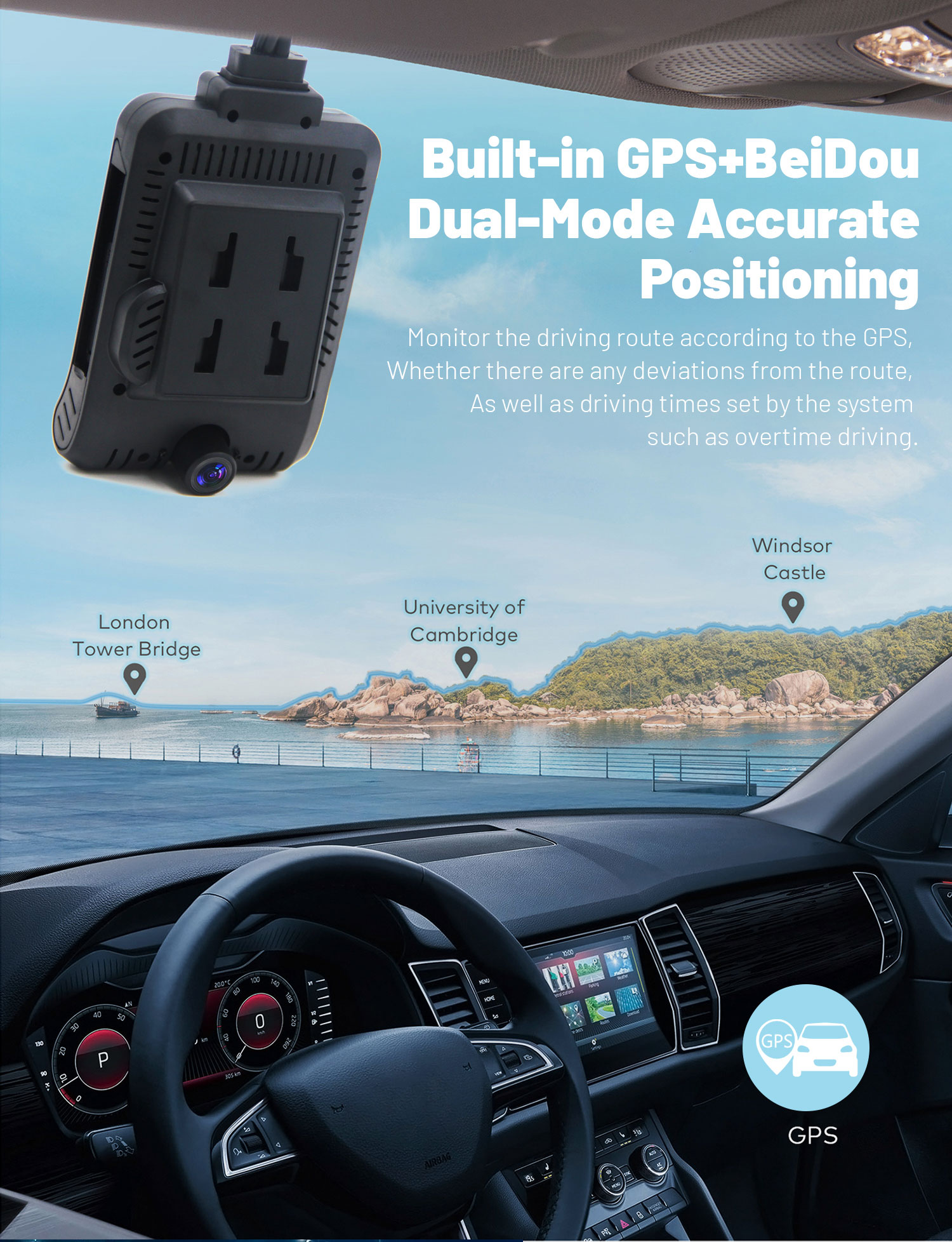

▪ Built in GPS + Beidou dual-mode precise positioning；
▪ Support 1 TF card,super capacitor double guarantees the integrity of video files；
▪ Support 1 SIM card, 4G module can support global frequency band；
▪ Support WiFi hotspot.
▪ Support mobile app, client, platform software preview video and parameter configuration；
▪Support 4CH IO alarm input and 2CHof RS232；
▪ Built in speaker and microphone,Support voice intercom between dash camera and platform. TTS voice broadcast;
▪ One key SOS emergency alarm;Support low-power sleep；

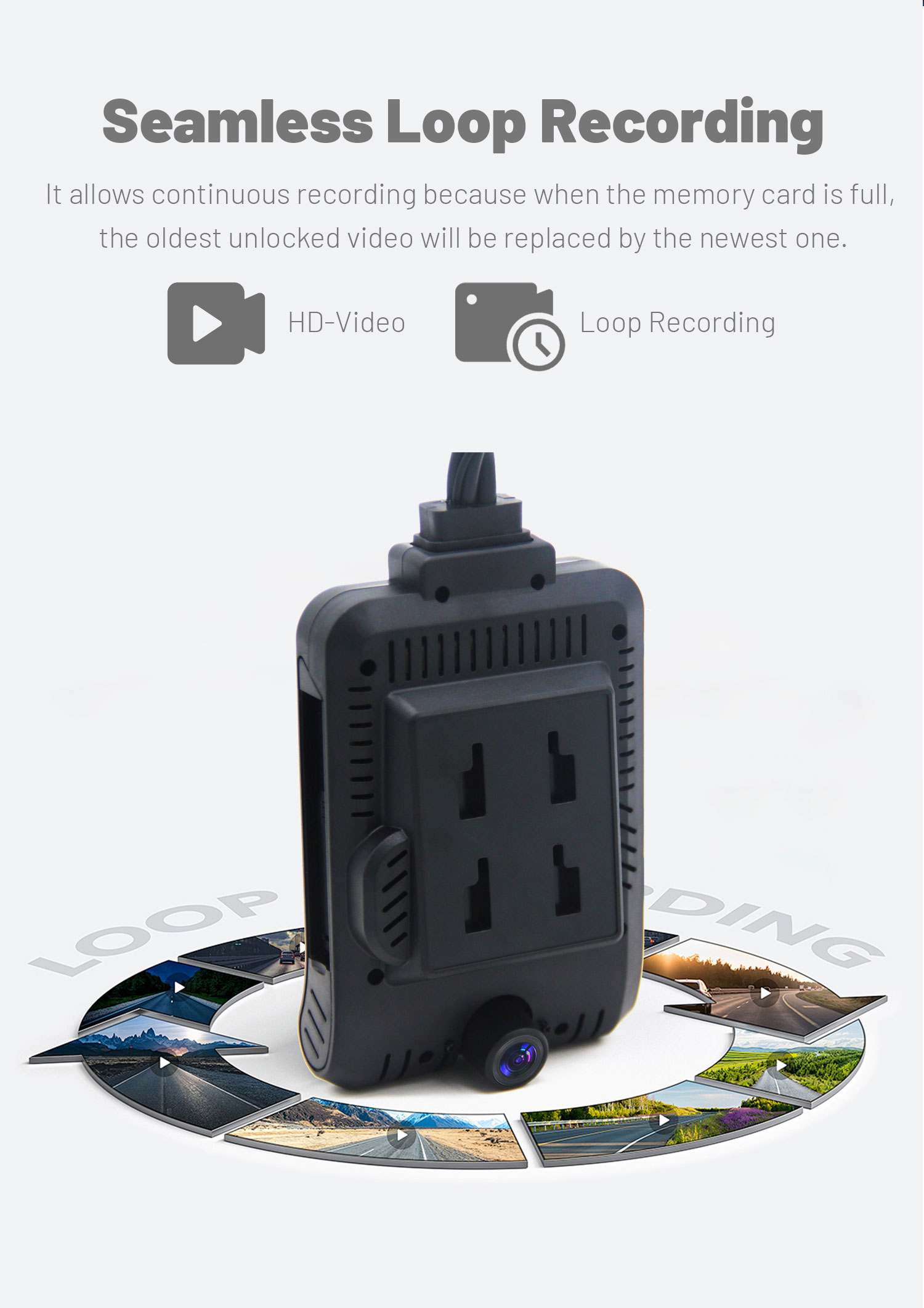

▪ Special file system to improve disk reading and writing efficiency,More stable video recording；
Product Specification Parameters
|
Type |
Technical Specifications |
|
CPU |
ARM Cortex CA9 Binuclear @1.4GHz,Total coding resources 1080p*60fps |
|
Memory |
512MB DDR3 |
|
Video Input |
Active Pixels: 1920×1080,1080×720,D1,HD1,CIF; H.264&H.265 format |
|

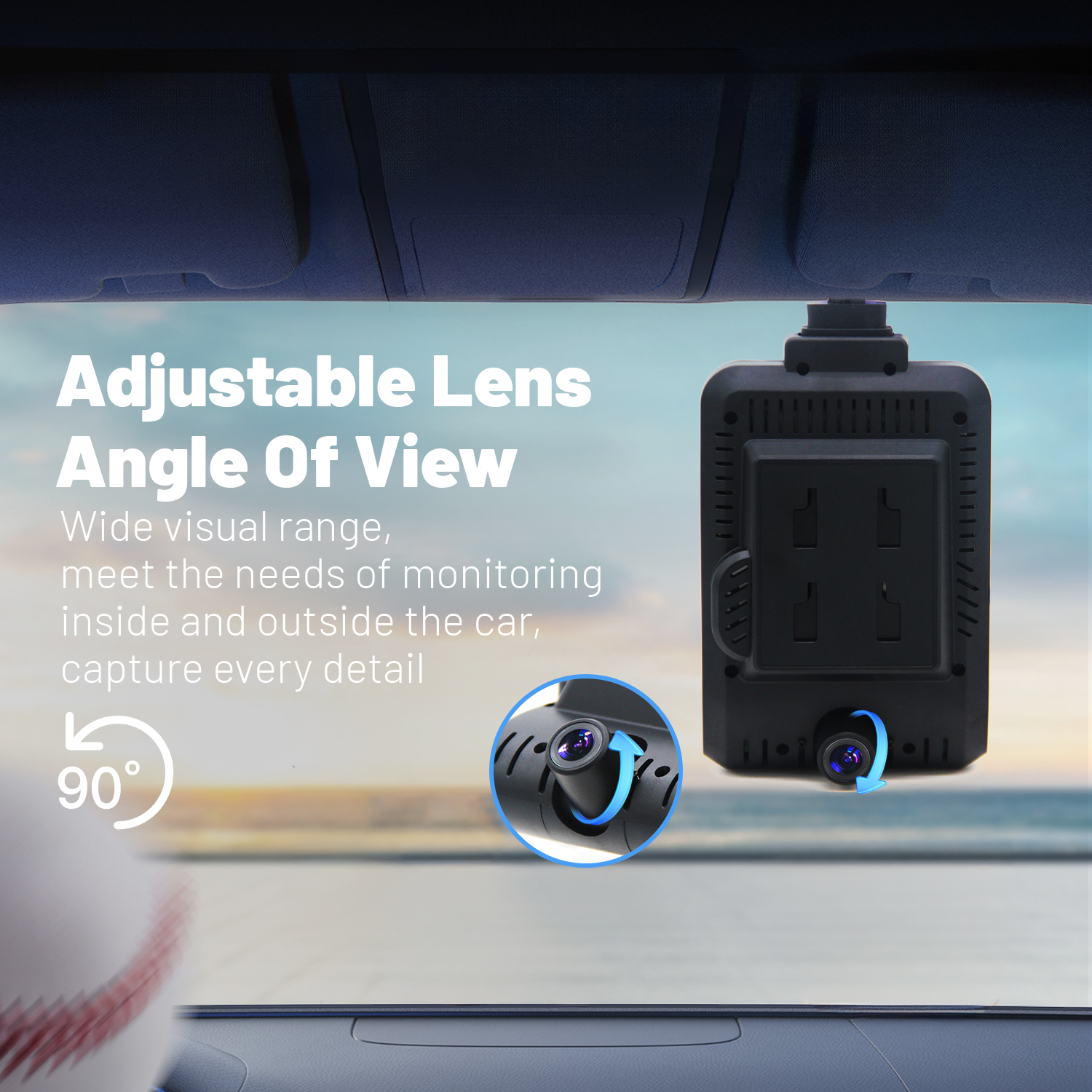

1-ch Built-in CMOS AHD camera,Low illumination 0.01LUX,Angle of view 82° |
|
|
3-ch External camera |
|
|
Video Output |
1-ch CVBS, 1.0Vp-p, 75Ω, Support full screen and 4-ch segmentation |
|
Audio input / output |
Built-in 1-ch MIC input, Built-in 1-ch speaker output;G.711a format |
|
Video recording resolution |
4-ch 1080p*15fps, 720p/D1*30fps,Simultaneous recording of sound and video. |
|
G-Sensor |
Built-in 3-axis acceleration G-sensor |
|
IO |
1-ch RS232, reserved for communication with peripherals |
|
Alarm Input |
2-ch Switching value input, |
|
Positioning module |
Built-in GPS / Beidou Positioning Module |
|
4G |
1 SIM card interface |
|
WIFI |
802.11b/g/n，built-in 4G module,TDD-LTE, FDD-LTE |
|
TF Card |
Support 1 TF card, Support 16G/32G/64G/128G/256GB |
|
USB (Not support) |
Reserved interface |
|
Upgrade mode |
TF card upgrade, FTP remote upgrade |
|
AI – ADAS |
Lane departure, collision alarm, Distance detection .etc |
|
AI – DSM |
Fatigue driving detection, Smoking, call mobile phone,Occlusion, Unsafe driving behavior habit detection |
|
Input voltage |
DC:+10V ～ +36V |
|
Power waste |
Normal working state ＜ 7.5W (without external equipment) |
|
Power off protection |
Super capacitor design, support abnormal power failure, ensure the integrity of video files |
|
Working Temperature |
-10℃ to +60℃ |
|
Working relative temperature |
20% to 80% |
|

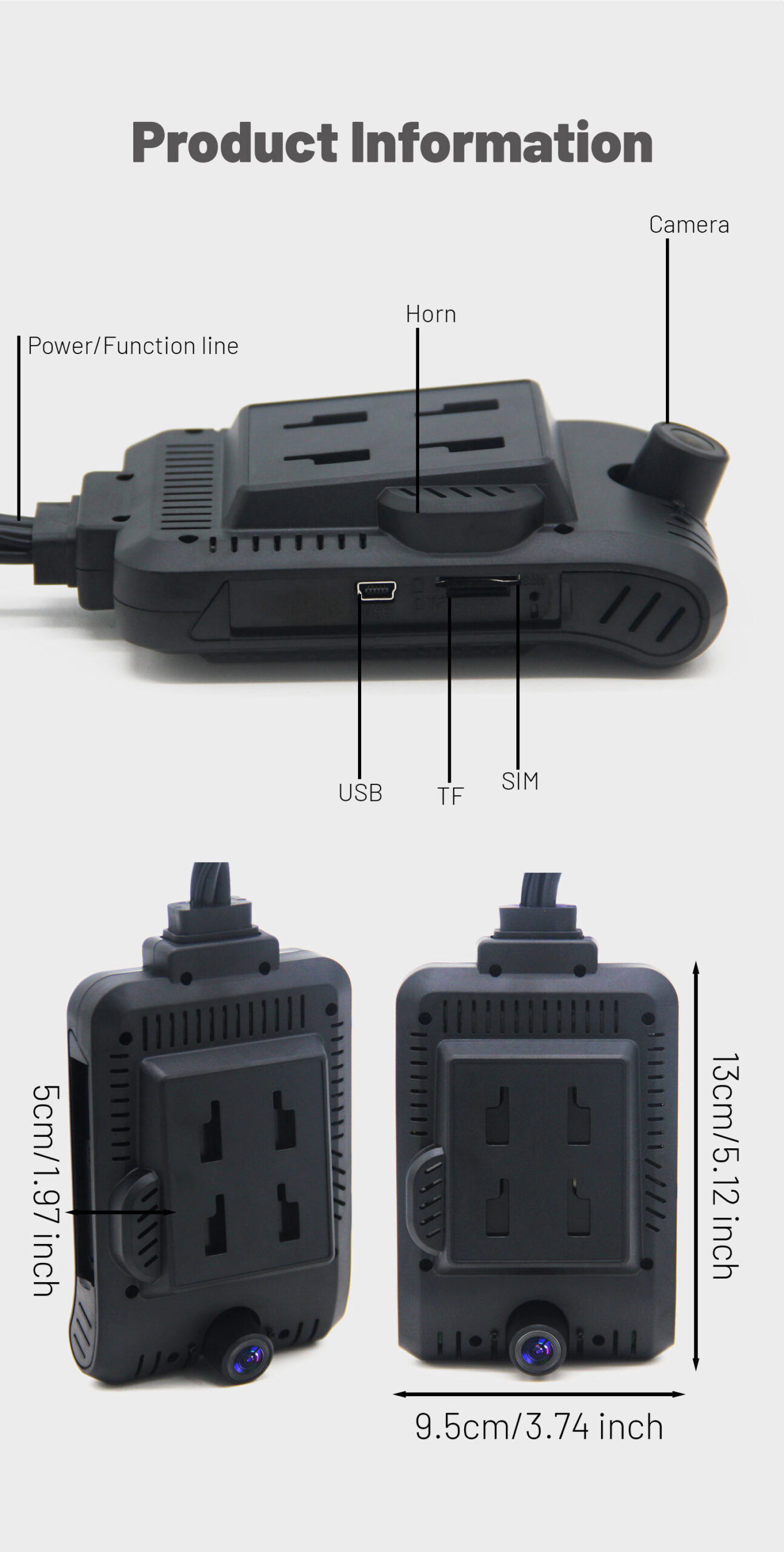

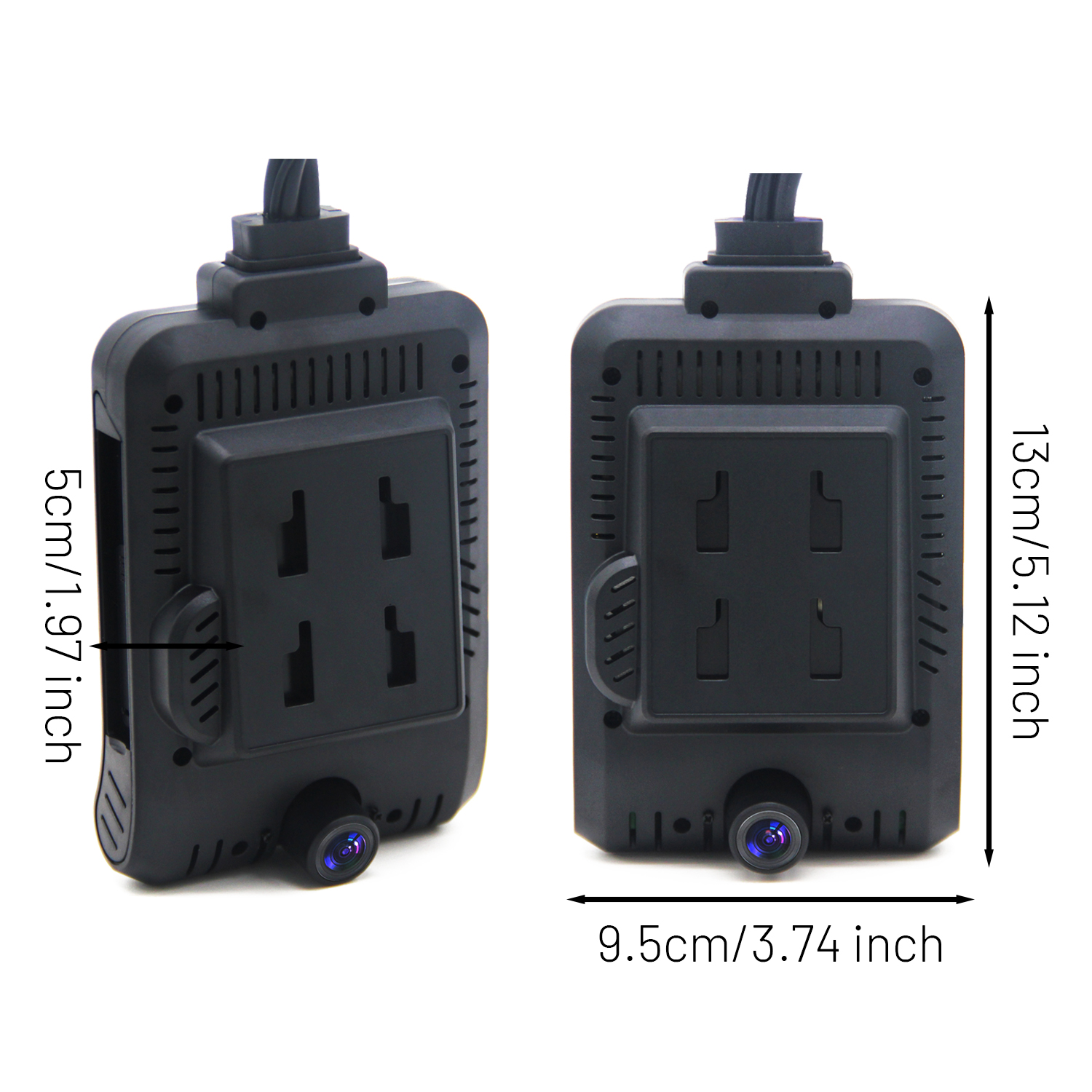

Equipment size |
138mm*85mm*45mm |
|
Net weight |
0.3kg |
