Product Features
• 265&H.264 encoding and decoding,Save storage space and transmission flow；
• Support 2-channel 1080p*25fps；
• Built in AI intelligent algorithm, which can support ADAS and DMS functions；
• Support GPS + Beidou dual-mode precise positioning；
• Support 1 TF card, up to 512GB；
• Super capacitor double guarantees the integrity of video files；
• Support 4G, it can support global frequency band；
• Support External USB WIFI hotspot;
• Support mobile app, client, preview video and parameter configuration；
• Support 1CHof RS232；
• One channel of low-level IO alarm output；
• Built in speaker and microphone, Support voice intercom between dash camera and platform;
• One key SOS emergency alarm;
• Special file system to improve disk reading and writing efficiency,More stable video recording；
Product specifications
|
ITEM |
Technical Specifications |
|
CPU |
Dual-Core processor@1.5GHz,Total coding resources 1080p@60fps NPU@1.0TOPS neural network acceleration engine |
|
Memory |
2Gb DDR3 |
|
Video Input
|
Active Pixels: 1920×1080,1080×720, H.264&H.265 format |
|

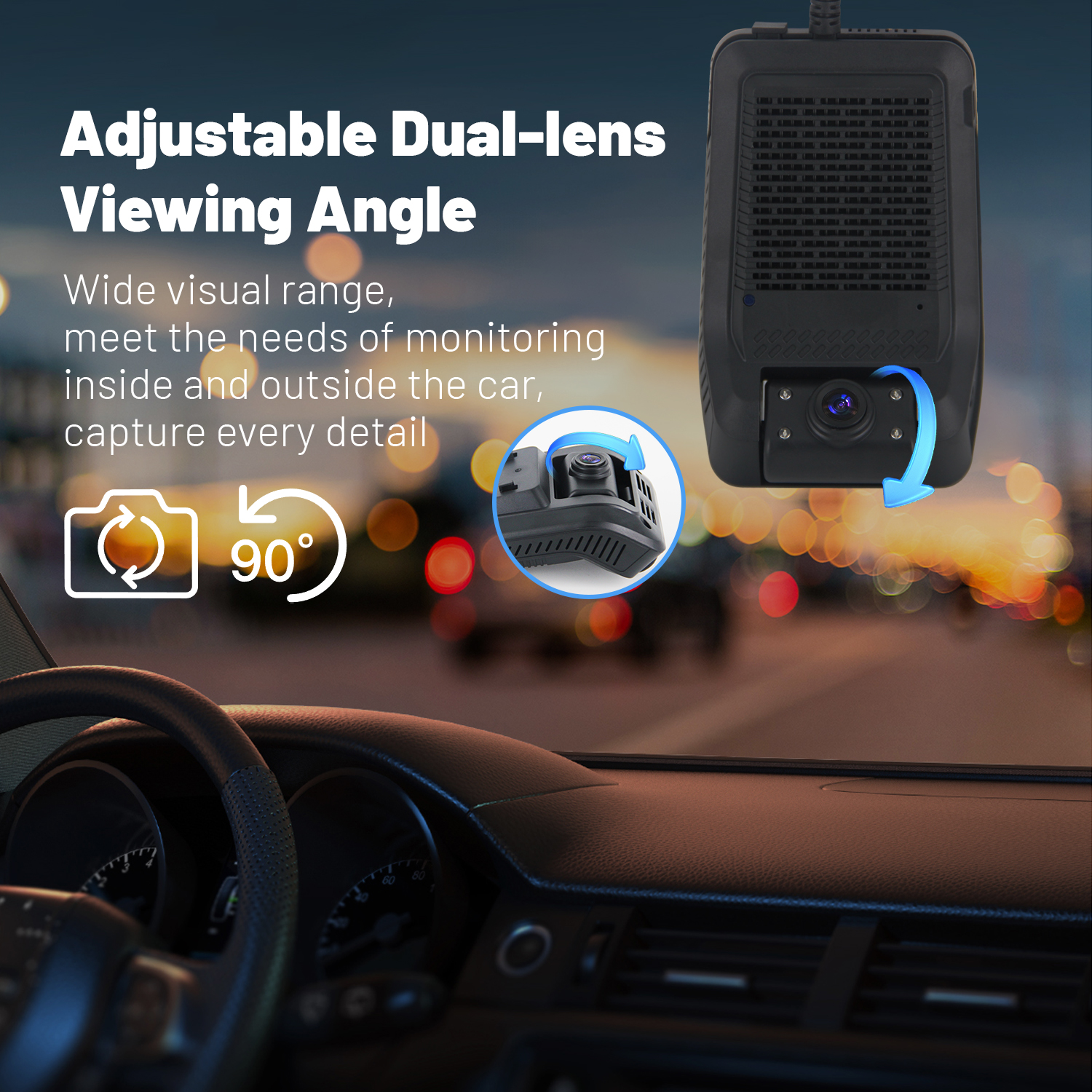

2-ch Built-in CMOS camera |
|
|
Configuration |
Support mobile APP preview and setting |
|
Audio input / output |
Built-in MIC and speaker, G.711a format |
|
Video recording resolution |
2-ch 1080p*25fps,Simultaneous recording of sound and video. |
|
G-Sensor |
Built-in 3-axis acceleration |
|
External interface |
1-ch RS232, reserved for communication with peripherals |
|
Alarm Input/output |
1-ch SOS /1-ch Low output |
|
Positioning module |
GPS / Beidou Positioning Module |
|
4G |
built-in 4G module, support 1 Micro Sim card，TDD-LTE, FDD-LTE |
|
WIFI |
Support External USB WIFI, 2.4G, 802.11b/g/n, AP mode |
|
Storage |
Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB |
|
USB |
Micro USB, support usb wifi dongle |
|
Upgrade |
TF card Upgrade and FTP Remote Upgrade |
|
AI – ADAS |
Lane departure, collision alarm, Distance detection, pedestrian detection etc |
|
AI – DSM |
Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection |
|
Input voltage |
DC:+10V ～ +36V |
|
Power consumption |
Normal working state ＜ 5W (without external equipment) |
|
Power off protection |
Super capacitor design, support abnormal power failure, ensure the integrity of video files |
|
Working Temperature |
-20℃ to +70℃ |
|
Working relative temperature |
20% to 80% |
|
Communication protocol |
JT/T808-2011，JT/T808-2019 |
|

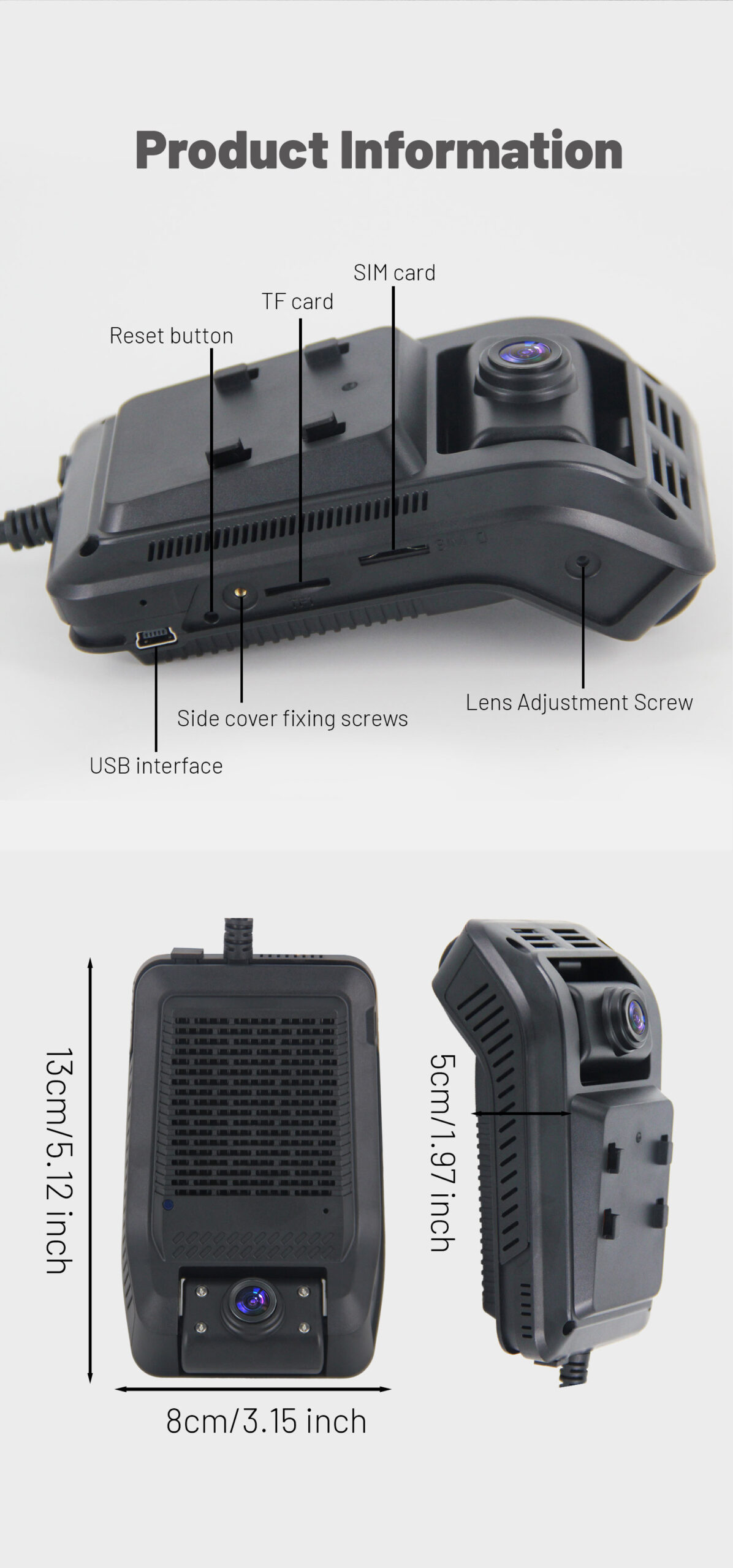

Equipment size |
120mm*77mm*55mm |
|
Net weight |
240g |
