Product Features

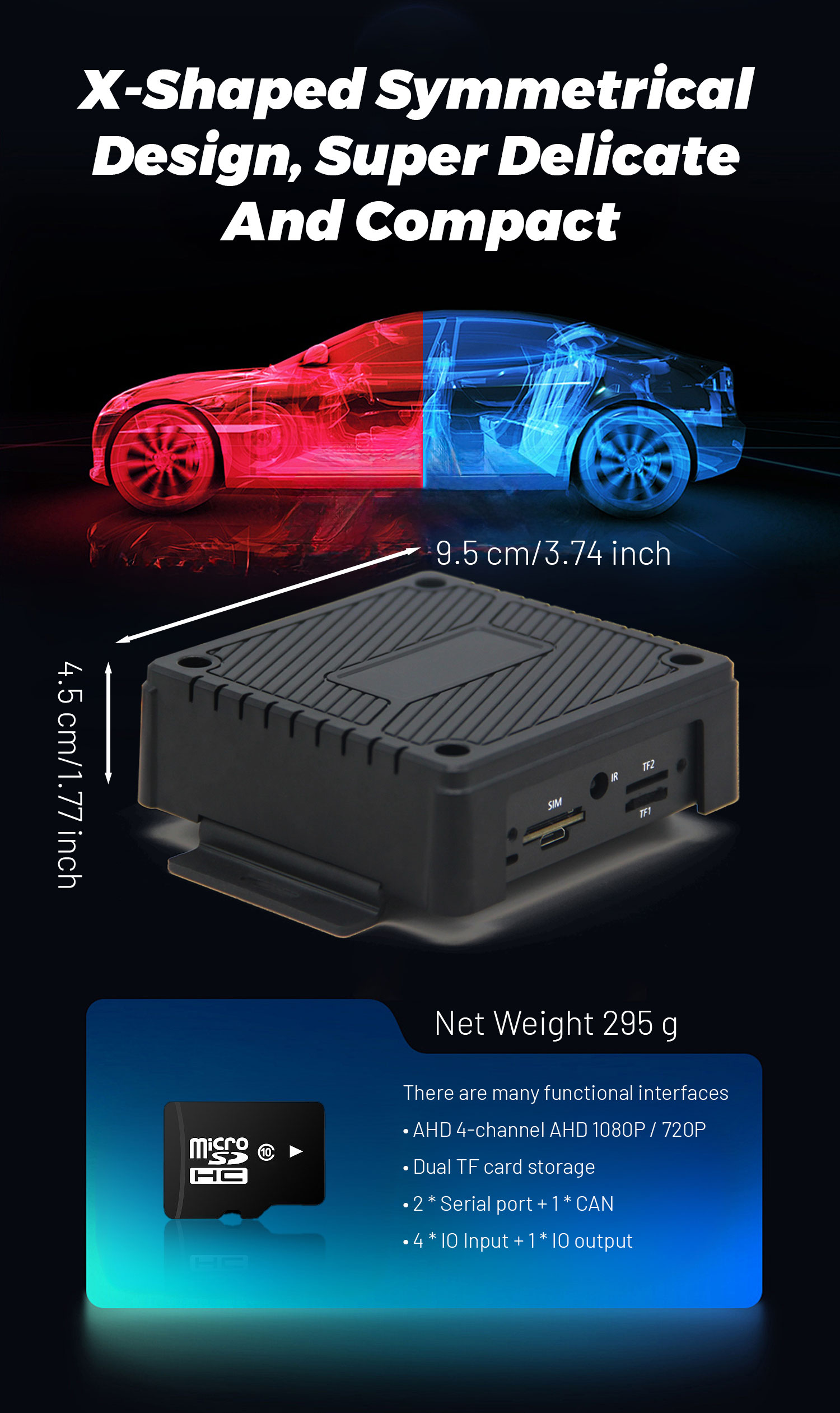

1.The Mini design
• X shape is symmetrical design, super delicate and small
• Good ventilation and heat dissipation channel
• Vehicle gauge level reliability interface
2.Powerful coding + Computing power + Reliability
• 265 / 264, dual-core 1.3 GHZ
• Innovative process process, good power consumption
• Integrate the powerful computing power unit
• Support for ADAS / DMS / BSD, etc

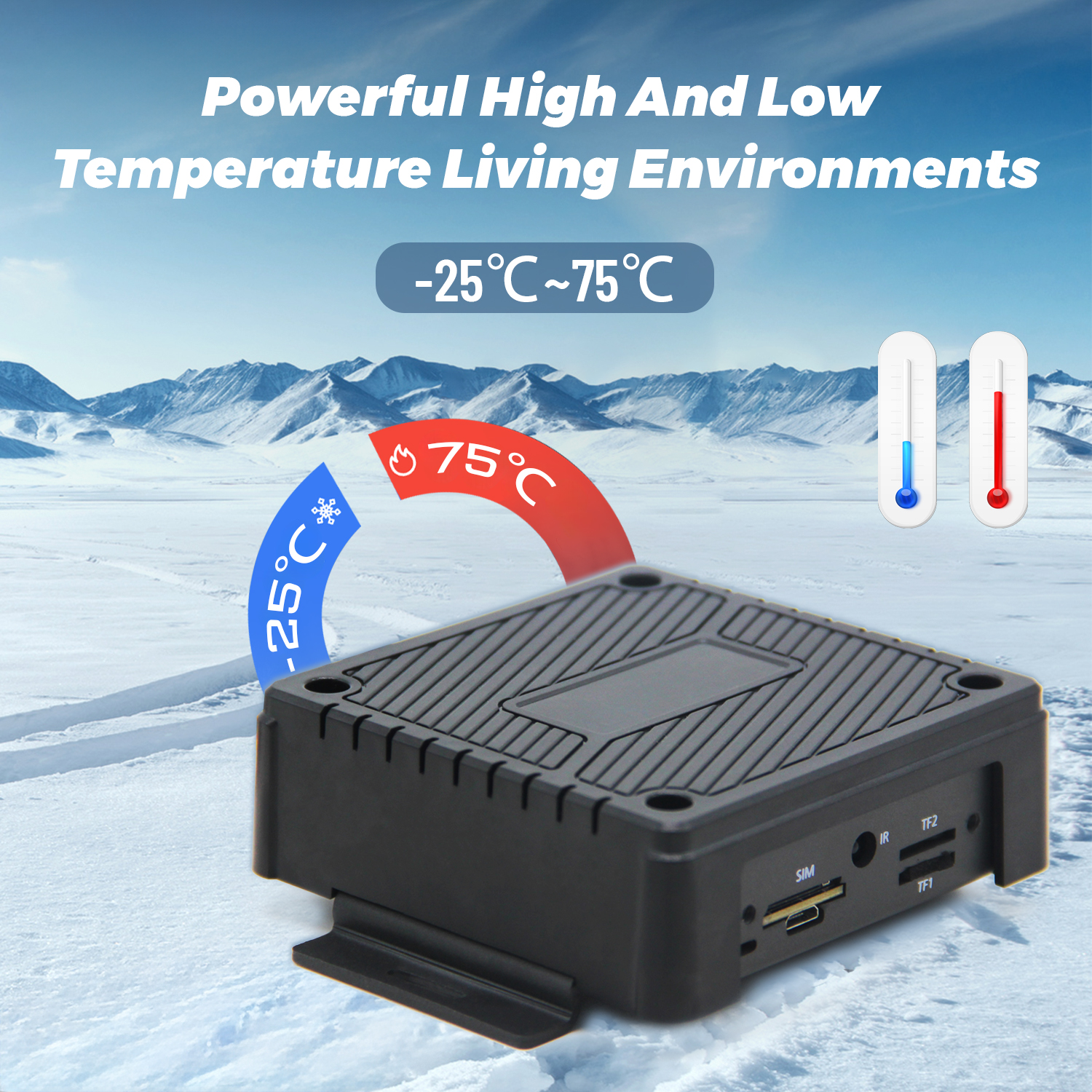

• Strong high and low temperature living environment
3.There are many functional interfaces
• And 4-channel AHD 1080P / 720P
• Dual TF card storage
• GPS、4G、WiFi/BT
• 2 * Serial port + 1 * CAN
• 4 * IO Input + 1 * IO output
• internet access
4.New GUI combined with engineering treasure
• Simple style GUI, convenient and fast
• New engineering treasure, cooperate with the visual operation and maintenance plate
• Strong remote operation and maintenance capabilities
|
Name model |
device name |

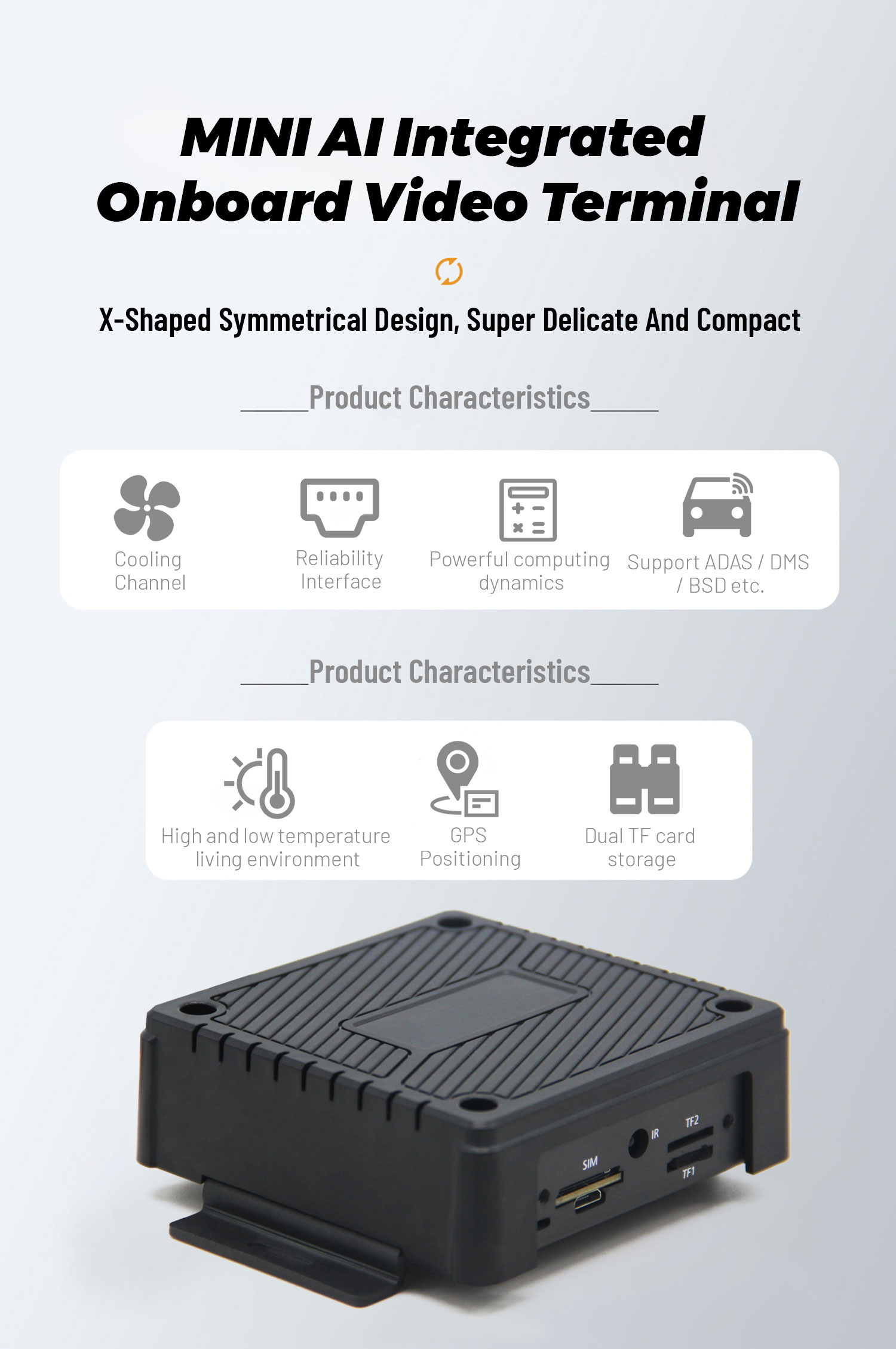

MINI AI Integrated onboard video terminal |
|
|
product model |
The VOX-M525 series |
|
Core specifications |
operating system |
Linux 4.3 |
|
|
language |
Simplified Chinese / English language |
|
|
hardware platform |
FH |
|
|
The core number |
Dual-core ARM CortoxA7 |
|
|
CPU frequency |
1.3GHz |
|
|
Calculate force |
0.5T |
|
|
video coding |
H.265 / H.264 is compatible |
|
|
Audio coding |
G.711A |
|
|
Gravity sensor |
3 Axis gyroscope |
|
high accuracy positioning |
Frequency band: GPS / QZSS L1C / A & L5, BDS B1I / B1C & B2a, GAL E1 & E5a Single-point positioning precision (level): 1.0M CEP RTK positioning accuracy (level): 0.02M CEP Speed measurement accuracy: <0.05 Time of first location (TTFF): cold start 27S, hot start 1S, auxiliary start 3D Data update rate: 1 HZ / 5 HZ |
|
Mobile network system |
4G full netcom |
|
WIFI |
Optional, supports built-in WIFI module, 2.4 G 802.11b/g/n |
|
PDA |
Optional, Bluetooth 4.1 |
|
video in |
4-way AHD1080P / 720P + 1-way IPC |
|
video monitor 525 vidicon video out |
1-way CVBS HD output |
|
Audio input |
4 Input |
|
Audio output |
1 Road output |
|
memorizer |
TF * 2, single support 512GB, the default configuration support single TF card |
|
USB |
USB*1 |
|
antenna
|
4G antenna |
|
External Gmouse positioning antenna |
|
|
Optional, built-in WIFI / Bluetooth |
|
|
VOIP talk back |
support |
|
switching value |
4 input / 1 output |
|
CAN joggle |
not have |
|
Output power supply |
DC is 12V * 1 + 5V * 2,1 of which supplies power to Gmouse |
|
The RS232 interface |
One |
|
The RS485 interface |
One |
|
internet access |
Optional, 1 |
|
Upgrade way
|
USB mouth |
|
TF block |
|
|
Platform remote |
|
|
operation
|
Engineering treasure |
|
SMS instructions (Mobile and Unicom users) |
|
|
TTS instruct |
|
|
power dissipation |
Less than 3W (no peripheral) |
|
character
|
Enter the power supply |
Wide power supply design, support AC / DC9~36V |
|

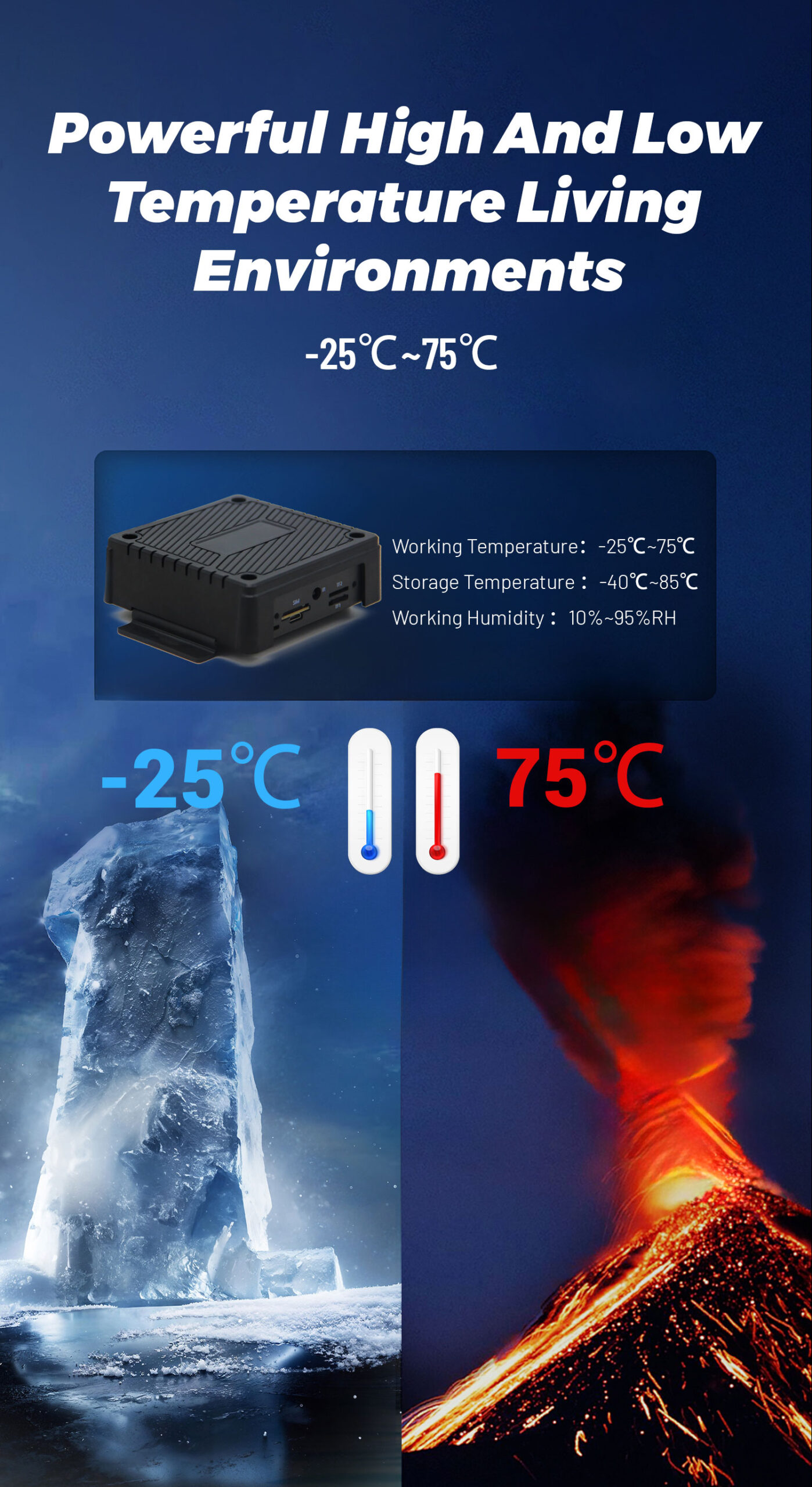

working temperature |
-25℃~75℃ |
|
|
storage temperature |
-40℃~85℃ |
|
|
Working humidity |
10%~95%RH |
|
|
electrostatic protection |
Tolerate 6KV contact discharge and 10KV air discharge |
|
|
Radiation protection |
Bottom aluminum profile heat dissipation + shell overall heat dissipation |
|
|
outline dimension |
90mm*90mm*30mm(L×W×H) |
|
|
weight |
Net weight of the host is 295g |
|
|
AI function
|
ADAS(selectable)
|
Front car collision warning, need the front camera cooperation |
|
Lane shift warning, need the front camera cooperation |
||
|
Solid line lane change warning, need the front camera cooperation |
||
|
Forward too close warning, need the front camera cooperation |
||
|
Pedestrian collision warning, need the front camera cooperation |
||
|
DMS(selectable)
|
Driver face identification, need DMS camera cooperation |
|
|
Make phone calls, need DMS camera cooperation |
||
|
Fatigue driving —— play the air, close your eyes, need DMS camera cooperation |
||
|
Smoking alarm, the need to DMS camera cooperation |
||
|
Do not look front —— left and right, bow, need DMS camera cooperation |
||
|
Deviation from the driving position —— The driver is not in the drivers position and requires DMS camera cooperation |
||
|
Video occlusion, requiring a DMS camera cooperation |
||
|
DMSX(selectable)
|
With hands off the steering wheel and a DMSX camera |
|
|
No seat belt is attached, and the DMSX camera cooperation is required |
||
|
Play mobile phone, need DMSX camera cooperation |
||
|
BSD(selectable)
|
Left blind spot warning, need BSD camera cooperation |
|
|
Right blind spot warning, need BSD camera cooperation |
||
|
PAC passenger flow statistics (optional) |
Bus passenger flow statistics, the need for PAC passenger flow statistics camera cooperation |
