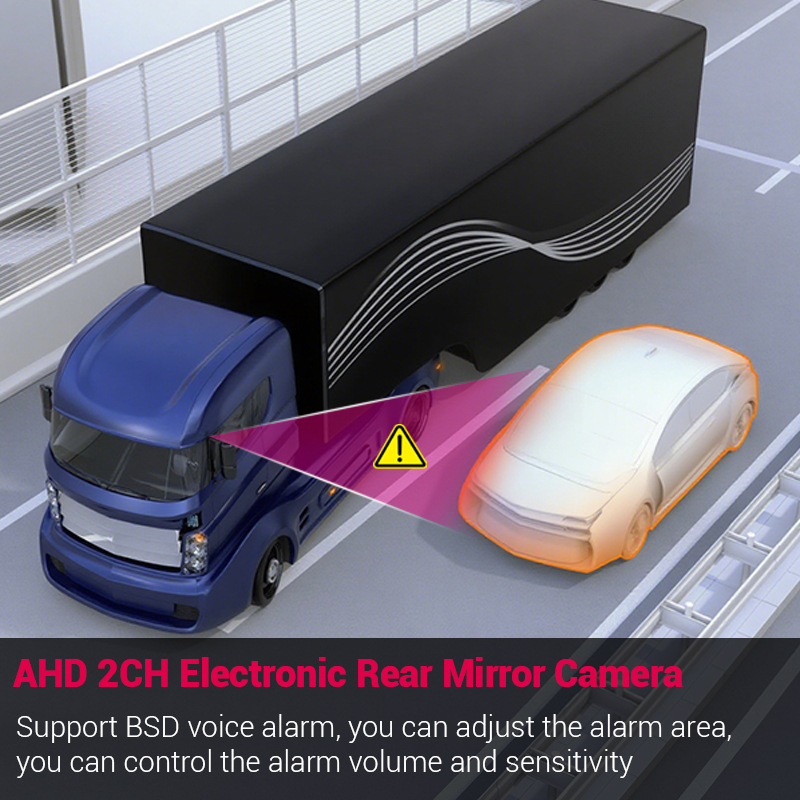

12.3 inch HD Dual Screen Electronic Mirror Monitor for Trucks and Buses Blind Spot Monitoring
Features: 1. Combines DVR Function:1080p full HD: a major upgrade of in vehicle monitor! It can record and replay driving videos.
2. This function can help you free from unreasonable damage and responsibility.
3. Fast output speed: quick turn-on, start displaying images and recording videos within 3 seconds after powered.
4. Super Good View Angle IPS Screen: high contrast, high brightness. It could restore the true color, presenting the brighter and more delicate display with much higher resolution.
5.Replacement for Traditional Rearview Mirror: This monitor had solved the problems of being poor visibility during driving atnight, susceptible to rainy, snowy and foggy weather and having strong reflection, etc. Showed on traditional rear-view mirrors.
6. Data security: ACC time-lapse recording; super capacitor power-down protection, to prevent the loss of video data.
7. Auto Dimming: auto adjust brightness at day and night.
6. Data security: ACC time-lapse recording; super capacitor power-down protection, to prevent the loss of video data.
7. Auto Dimming: auto adjust brightness at day and night.
|
Functional parameters
|
|
|
1. 12.3 inch IPS vertical monitor
|
|
|
2. Four Channel AHD video input
|
|
|
3. 12-24V power supply, 12V / 800mA
|
|
|
4. Support CVBS, 720P, 1080P camera mixed input
|
|
|
5. OSD menu, remote control
|
|
|
12.3 inch HD monitor
|
|
|
SPECS
|
Model No.:EV-1230HQ
|
|
Screen ratio
|
8:3
|
|
Screen resolution
|
1920(H)*RGB*720(V)
|
|
Backlight
|
LED, brightness 850 cd/M2
|
|
Frame rate
|
1080P: P25f/s/N30f/s
|
|
Contrast
|
1100:1
|
|
Viewing angle
|
UP-85°,DOWN-85°, LEFT-85°, RIGHT-85°
|
|
Working temperature
|
-20~+70 ºC
|
|
Working humidity
|
85%RH
|
|
Storage temperature
|
-30~+85 ºC
|
|
Power supply
|
12-24V
|
|
Boot time
|
12S
|
|
Current consumption
|
TYPE:750mA
|
|
OSD control
|
Channel Character and time could be displayed on the screen at the same time
|
|
Power consumption
|
Normal working state < 9W (excluding camera)
|
|
Signal input
|
2CH 1080P, 960P, 720P, 960H, D1 (CVBS) video input
Compatible with CVBS and AHD signal input Compatible with PAL and NTSC system input |
|
Recording function
|
Support
|
|
TF card storage
|
Support 2-256G
|
|
Video compression format
|
H.264 compression mode
|
|
Video resolution
|
1920*1080
|
|
Video playback
|
2 channel synchronous playback, support pause, fast forward, fast backward
|
|
File format
|
DAT
|
|
File size
|
1GB/46min
|
|
System Language
|
Chinese, English (support customized languages)
|
|
Display
|
Multiple split screen switchable
|
|
2Trigger control
|
2CH trigger control, with parking guide line
|
|
System
|
PAL/NTSC automatically
|
|
Shockproof level
|
4G
|
|
Audio
|
Support camera recording(CH1)
|
