• 1080P full HD video input and output, providing a real-time image with screen layback down to 150ms
• One-minute Automatic Calibration, saving time and work
• 3D/2D switchable image as well as optional landscape and portrait, satisfying all kinds of need
• Video Recording: 2 x 128GB SD cards, supporting ultra-capacitor to secure the video file
• Featuring FCW function, no extra camera or installation
• Provide super rear view camera with 3D technology, covering all the lanes to achive a more secure lane merge
• Quickly and smoothly pop up the single-view image with low latency
• Support RTSP video output
• Compatible with radars and parking sensors, supporting real-time video and audio overlay to actively warn the drivers to avoid obstacles and other potential dangers
• Support IP camera, connect more cameras, provide more views
• Compatible with pedestrian detection cameras to have audio reminder
• Operating temperature -20ºC ~ +70ºC
• Low-lux night vision: still visible under 0.1lux with no need of Infrared light
• GPS tracking optional



•

• Specification

  Input video	Max.4CH×1080P@25fps/1080P@30fps
  Display mode	2D/3D
  Resolution	1080P
  Output Refresh rate	25/30fps
  Storage	Max. 2×128GB SD card
  Compressed encoding	Max. 4CH×1080P H.264 encoding
  Video stream	4M/2M
  Operating voltage	10-32V
  Operating voltage range for external trigger signals	10-32V
  Operating electric current	<2A/12V
  Operating temperature	-20℃-70℃
  Storage temperature	–40℃ ~105℃
  Operating humidity	10%-90%

•
• Why do you need STONKAM® 360°Around View Driving Assistance System?

  Potential dangers hidden among blind areas.

  Possibility of scratching in narrow roads while no one shares the cost.

  Situation of racketeer for car accident keeps increasing.

  Indeterminate responsibility for rear-end collision.

  ……

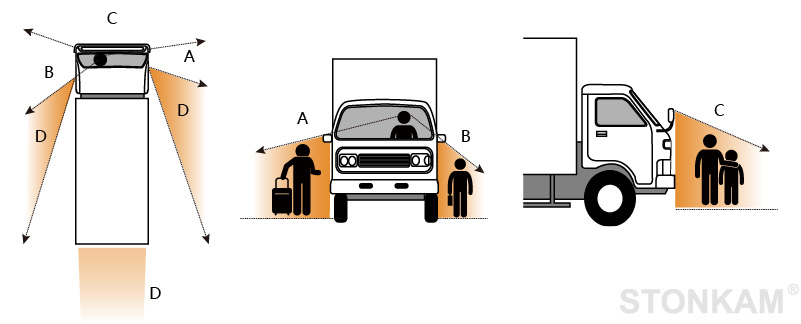

  Unignorable Vehicle Blind Spots

  Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.

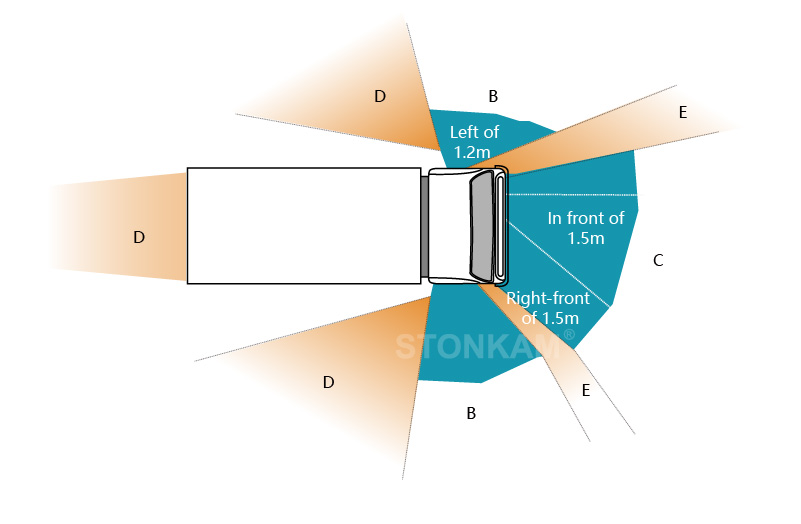

  It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.

  Area A, B, C: Half blind area

  Severity of danger depends on the vehicle size.

  Area D: Full blind area

  Beyond the sight of the driver and 3 rear view mirrors.

  Area E: Full blind area

  Pillar A near the windshield hinders the vision, which creates the blind spots.

Watch Out for Truck’s Blind Spots!

Due to their size and length, trucks have larger blind spots than the average car, which means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.

To Be Truck Aware, Come to STONKAM® 3D 360° Surround View Camera System for a Security Solution.

STONKAM® 360° Surround View System Complete Safeguard Your Driving!!!

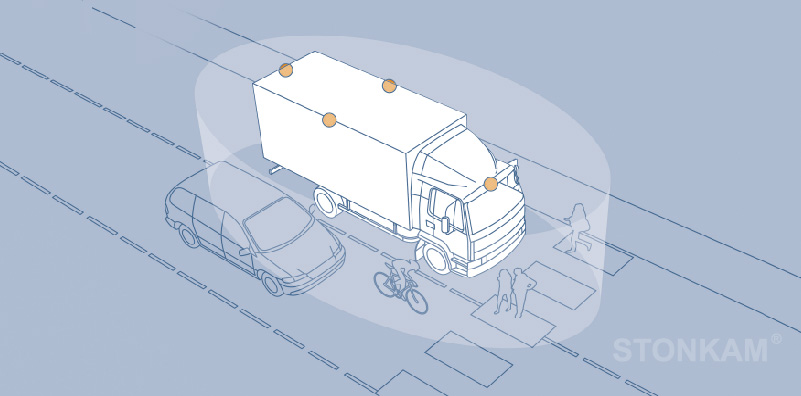

360° Seamless Stitching

Support 4CH/6CH/8CH inputs, 360° Around View Driving Assistance System can realize true 360° panoramic bird-view, monitoring with no blind spot to ensure driving safety.

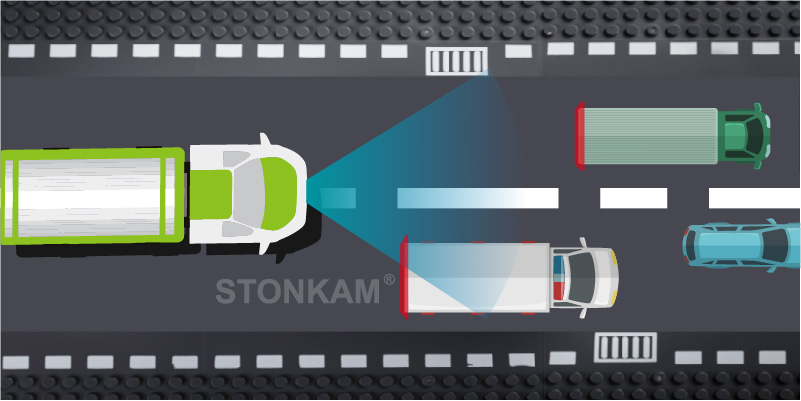

The Front-view Camera Also Applied for FCW

Support Forward Collision Warning without extra camera, saving time and money. With forward collision warning technology, the system can intelligently and accurately analyse the distance and relative speed between the vehicle and the preceding vehicle, estimate the potential risk of rear-end collision, and send warnings to the driver to avoid accidents.

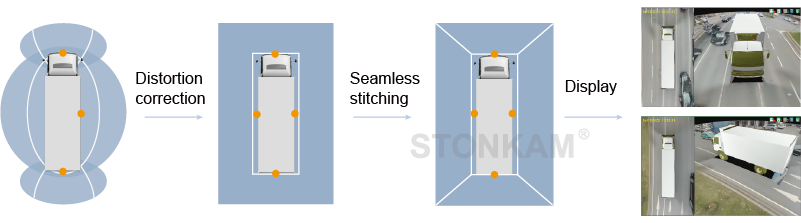

Panoramic Image Synthesis Technology

Panoramic image synthesis technology: The 4CH 1080P full HD images are seamlessly stitched after distortion correction, and then rendered into 3D scene to simulate the real driving scene.

3D and 2D Switchable

3D 360° around view image system supports two viewing modes, 3D and 2D switchable. And the landscape and portrait are also selectable.

Quick and Smooth Start-up, RTSP Feed Support

From boot to image display, the single-view image pop up quickly and smoothly with low latency. It supports third-party equipment to obtain the 360° around view image through the RTSP protocol, in order to achieve the integration of the panoramic images, with latency less than 250ms.

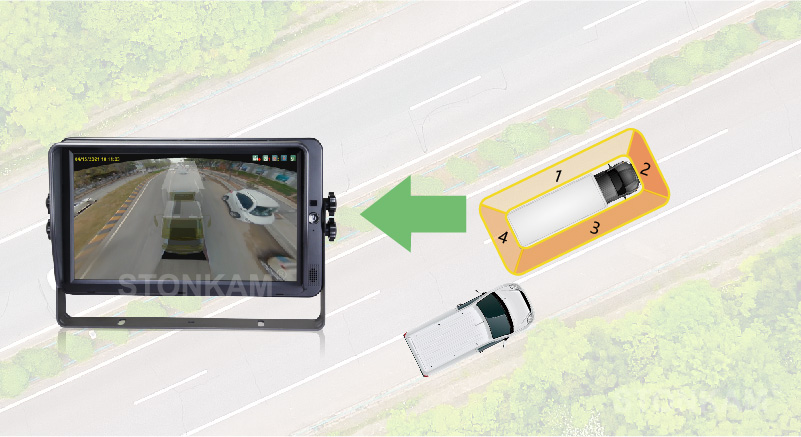

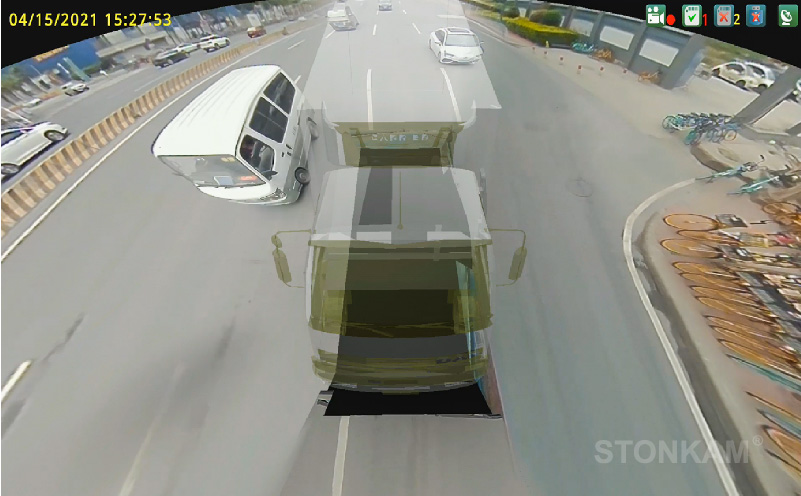

Large Field of View (Super Rear View Vision)

Most 3D around view driving assistance products would present the driving scene with a vehicle of solid image where the traffic view behind is blocked out and not clearly showed. 3D 360° Around View Driving Assistance System can use transparent vehicle model to provide a full view of the road condition, totally clearing off the blind spot behind the vehicle. Meanwhile, the bird view can show a larger field of view on both left and right of the vehicle, providing one more driveway scene than the similar products in the market, which greatly enhances the driving safety.

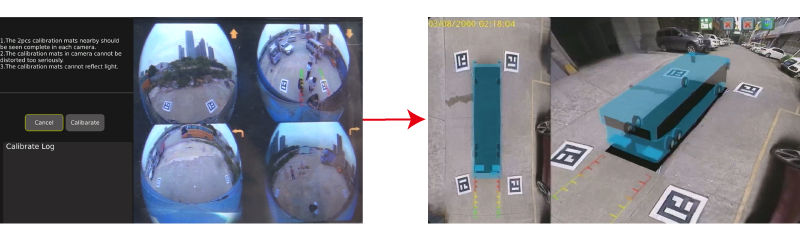

Simplified and Quick Calibration

The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only four calibration mats are needed, and they can be placed randomly to achieve accurate calibration.

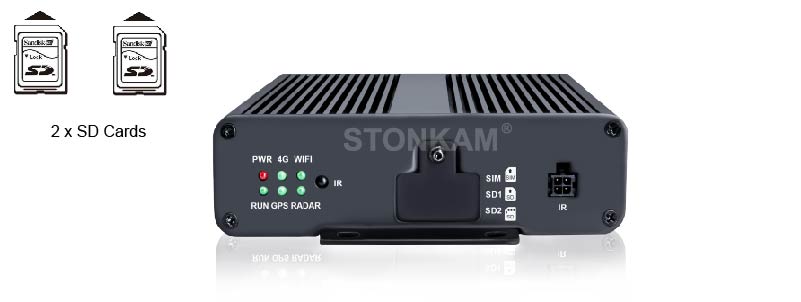

Video Recording 2 × 128GB SD cards
